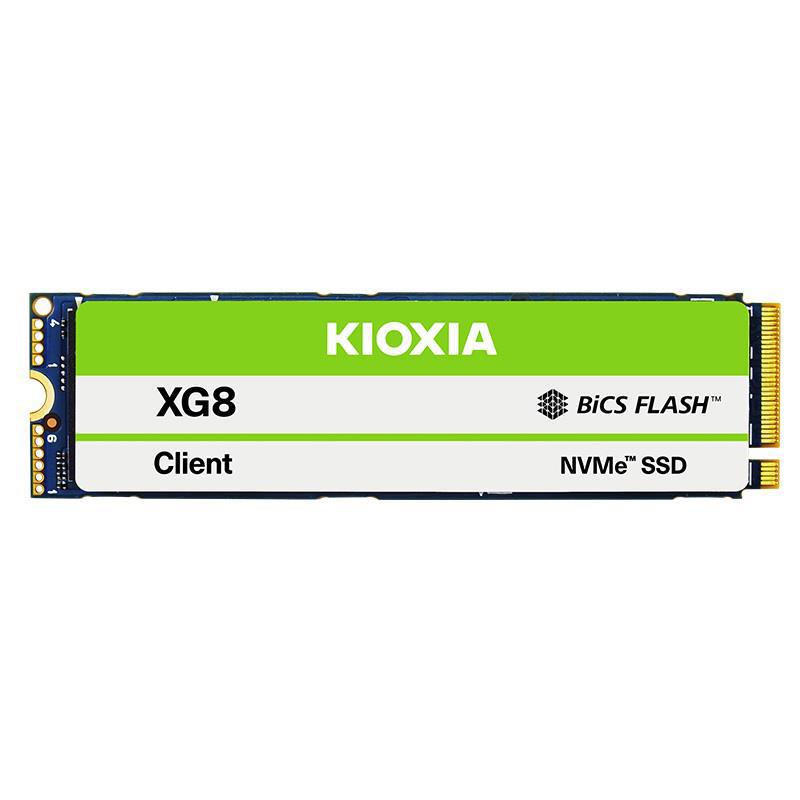

  2. Kioxia KXG80ZNV2T04 2TB NVMe Solid-State Drive PCIe 4.0 M.2 22x80-S2 TLC NAND 1DWPD - XG8 Series
Kioxia KXG80ZNV2T04 2TB NVMe Solid-State Drive PCIe 4.0 M.2 22x80-S2 TLC NAND 1DWPD - XG8 Series

Kioxia KXG80ZNV2T04 2TB NVMe Solid-State Drive PCIe 4.0 M.2 22x80-S2 TLC NAND 1DWPD - XG8 Series

  • High-performance Desktop PCs

  • Thin-performance Notebook PCs

  • 3D TLC (3-bit-per-cell) flash memory

  • Server-boot, caching & logging use in Data center

The NVMe Solid-State Drive Features 2.04TB PCIe 4.0 M.2 2280-S2 Single-Sided Optimized For Power-sensitive Mobile PCs, Performance-oriented Gaming PCs, Data Center Environments For Server-boot, Caching And Logging BiCS FLASH TLC 1.0DWPD XG8 Series - OEM

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    Client SSD NVMe SSD M.2


    The XG8 Series utilizes KIOXIA latest 112-layer, 3D TLC (3-bit-per-cell) flash memory. With 5th generation BiCS FLASH and SLC cache features, XG8 SSDs reach up to sequential read/write speeds of 7,000 MB/s and 5,800 MB/s respectively and deliver up to 900K random read and 620K random write IOPS. The power consumption of XG8 Series is 8.1 W or less in active mode and less than 3 mW in stand-by mode.


    The new XG8 Series is optimized for power-sensitive mobile PCs, performance-oriented gaming PCs, as well as data center environments for server-boot, caching and logging.

    Extra Specifications for Kioxia KXG80ZNV2T04 2TB NVMe Solid-State Drive PCIe 4.0 M.2 22x80-S2 TLC NAND 1DWPD - XG8 Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity2.04TB
    Form FactorM.2 2280-S2 Single-sided
    InterfacePCIe 4.0, NVMe 1.4
    Interface Speed64 GT/s (Gen4 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Height: 2.23 Max x Width: 22.0 ± 0.15 x length: 80.0 ± 0.15 mm
    Performance
    Read7,000 MB/s
    Write5,600 MB/s
    Endurance DWPD1DWPD
    Power
    Supply Voltage3.3 V ± 5 %
    Power Consumption (Active)7.7 W typ.
    Power Consumption3.0 mW typ.
    Miscellaneous
    MTBF1,500,000 hours
    Environmental Parameters
    Operating TemperatureTemperature (Operating): 0 °C to 95 °C (Controller Temperature)
    Temperature (Operating): 0 °C to 85 °C (Other Components Temperature)
    Temperature(Non-operating): -40 °C to 85 °C
    Humidity (Operating): 0 % R.H. to 90 % R.H.
    Vibration (Operating/Non-operating): 196 m/s2 { 20 G } ( Peak, 20 to 2,000 Hz )
    Shock (Operating): 14.7 km/s2 { 1,500 G } ( 0.5 ms )

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Kioxia
    Type of Support:FULL
    Phone No.:949-737-7300
    URL:Click here for Manufacturer Website
