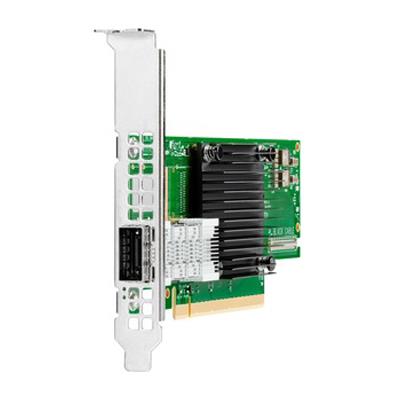

- Supermicro AOC-653105A-ECAT-CR007 IB-HDR100 & 100GbE Network Adapter Card - Single QSFP56 Port PCIe3.0/4.0 x16
Supermicro AOC-653105A-ECAT-CR007 IB-HDR100 & 100GbE Network Adapter Card - Single QSFP56 Port PCIe3.0/4.0 x16
Infiniband/Ethernet Host Bus Adapter, Low Latency, High-Bandwidth InfiniBand Connectivity, Plug-in Card, Provide Single QSFP56 Port, PCI Express 4.0 x16, Data Transmission Rate: InfiniBand HDR100 & Ethernet 100GbE, RoHS Compliant - (AOC-653105A-ECAT-CR007)
ConnectX-6 is a groundbreaking addition to the NVIDIA ConnectX series of industry-leading adapter cards. In addition to all the existing innovative features of past ConnectX versions, ConnectX-6 offers a number of enhancements that further improve the performance and scalability of datacenter applications.
Extra Specifications for Supermicro AOC-653105A-ECAT-CR007 IB-HDR100 & 100GbE Network Adapter Card - Single QSFP56 Port PCIe3.0/4.0 x16
| Main Specifications | ||
| Device Type | Infiniband Host Bus Adapter | |
| Form Factor | Plug-in Card- Low-profile | |
| Interface | PCIe3.0/4.0 x16 | |
| Dimensions (WxDxH) | 6.6 in. x 2.71 in. (167.65mm x 68.90mm) | |
| InfiniBand | IBTA v1.4 a Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane) | |
| Connectivity | ||
| Connectors | Single QSFP56 InfiniBand and Ethernet (copper and optical) | |
| Networking | ||
| Ethernet | 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR | |
| Performance | ||
| Internal Data Rate | Ethernet: 1/10/25/40/50/100 Gb/s | |
| InfiniBand: SDR/DDR/QDR/FDR/EDR/HDR100 | ||
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0°C to 55°C (32°F to 131°F) | |
| Non-operational: -40°C to 70°Cc | ||
| Humidity Operational: 10% to 85% relative humidity | ||
| Humidity Non-operational: 10% to 90% relative humidity | ||
| Altitude (Operational): 3050m | ||
| Power Supply | ||
| Regulatory Safety / EMC | Safety: CB / cTUVus / CE | |
| EMC: CE / FCC / VCCI / ICES / RCM / KC | ||
| RoHS Compliant | ||
| Miscellaneous | ||
| Bracket Included | Tall Bracket | |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 30 days, 2 weeks afterwards |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Nvidia |
| Type of Support: | FULL |
| Phone No.: | 800-797-6530 |
| URL: | Click here for Manufacturer Website |
