- Supermicro SYS-420GP-TNAR+-US GPU 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation

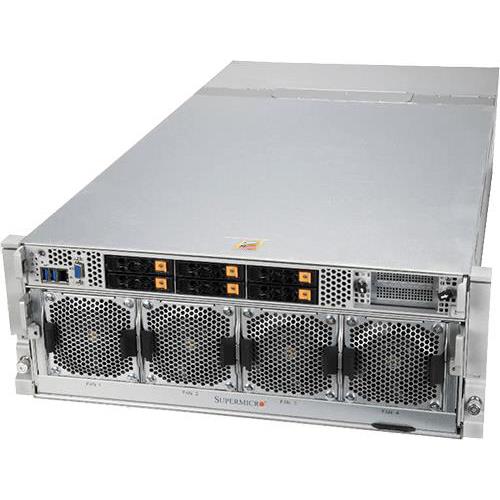

Supermicro SYS-420GP-TNAR+-US GPU 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• High Performance Computing
• AI/Deep Learning Training
Barebone 4U Rackmount SuperServer, Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation, Intel C621A, Up to 12TB in 32 DIMM slots, R/LDIMM/Intel Optane Persistent Memory 200 Series, On-Board: SATA3 (6Gbps), RAID 0/1/5/10 Support, 6x 2.5in Hot-swap NVMe/SATA/SAS Drive Bays (6x 2.5in NVMe Hybrid, 4x 2.5in NVMe Dedicated),2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity: 2x 10GbE BaseT with Intel X550-AT2 (optional), 6000W Power Supply - (SYS-420GP-TNAR+-US + X12DGO-6)
This product is no longer available.
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
2. Intel® C621A Chipset
3. 10 PCIe Gen 4.0 X16 LP Slots AIOM/OCP 3.0 Support
4. Flexible networking options
5. 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays 2 M.2 NVMe and SATA for boot drive only
6. 4 heavy duty fans with optimal fan speed control
7. 4x 3000W redundant Titanium level power supplies
Extra Specifications for Supermicro SYS-420GP-TNAR+-US GPU 4U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Product SKUs | ||
| Product SKUs | SYS-420GP-TNAR+-US | |
| Motherboard | ||
| Motherboard | Super X12DGO-6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Support CPU TDP 270W | ||
| Dual Socket P+ (LGA-4189) | ||
| Cores | Up to 40C/80T; Up to 60MB Cache | |
| GPU | ||
| Supported GPU | HGX A100 8-GPU SXM4 Multi-GPU Board | |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ | |
| System Memory | ||
| Memory | Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | |
| Intel® Optane™ persistent memory 200 series | ||
| Memory Capacity: 32 DIMM slots | ||
| Up to 12TB: 16x 512 GB PMem | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550-AT2 (optional) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 7 +1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-438G | |
| Dimensions and Weight | ||
| Height | 6.9" (174mm) | |
| Width | 17.6" (446mm) | |
| Depth | 35.4" (900mm) | |
| Package | 29.5" (H) x 27.4" (W) x 44.9" (D) | |
| Weight | Net Weight: 166 lbs (75.3 kg) | |
| Gross Weight: 225 lbs (102.1 kg) | ||
| Available Color | Black Front & Silver Body | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 10 PCIe 4.0 x16 LP slot(s) | |
| Drive Bays / Storage | ||
| Hot-swap | 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid; 4x 2.5" NVMe dedicated) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 4 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Total Output Power | 3000W | |
| Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm | |
| AC Input | 2880W: 200-207Vac / 15.7A-16A / 50-60Hz | |
| 3000W: 207.1-240Vac / 14.5A-16A / 50-60Hz | ||
| DC Input | 3000W: 240Vdc / 15A Max | |
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DGO-6 | 1 | Super X12DGO-6 Motherboard | |
| Motherboard / Chassis | CSE-438G | 1 | 4U Chassis | |
| Add-on Card / Module | AOM-438G-AIOM-P | 1 | AIOM adapter card for CSE-438G,RoHS | |
| Add-on Card / Module | AOM-438G-FAN-P | 1 | Fan adaptor for SC1018G,RoHS | |
| Add-on Card / Module | AOM-DGO-IO-P | 1 | I/O riser card for 4U 8 SXM4 GPU system 420GP-TEVRT,RoHS | |
| Add-on Card / Module | AOM-SXM4-IO-P | 1 | PCIE Gen4 switch board for 4U 8 SXM4 GPU system,RoHS | |
| Backplane | BPN-GPU-438G | 1 | Midplane for 4U AMD/Intel Delta GPU system,RoHS | |
| Backplane | BPN-NVME4-F418-B6S6 | 1 | 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices. The Backplane is for X12 FatTwin Product Line.,HF,RoHS | |
| Cable | CBL-0223L | 4 | BLADE PWS POWER CORD C-19 TO C-20, PBF | |
| Cable | CBL-GNZ2-12105F-85 | 1 | GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105. | |
| Cable | CBL-GNZ2-1281F-85 | 1 | GENZ 2C x16 (STR),Slimline x8 (STR) to 2x 2x Slimline x4 | |
| Cable | CBL-PWEX-1114-30 | 1 | Microfit,(2x4 to 2x4),PH3.0,30CM,9A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1117-40 | 2 | MiniFit,2x2,PH4.2,F to MiniFit,2x2,PH4.2,F,40CM,8A/pin, | |
| Cable | CBL-SAST-1238FLP-85 | 1 | SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,38C | |
| Cable | CBL-SAST-1242-100 | 2 | Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,43CM,100 O | |
| Cable | CBL-SAST-1258FLP-85 | 1 | SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,58C | |
| Cable | CBL-OTHR-0794 | 1 | VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS | |
| Fan | FAN-0196L4-1 | 4 | 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fan Board | |
| Power Supply | PWS-3K02G-2R | 4 | 2U 3000W, Titanium efficiency for GPU 54V(2430W)+12V(1100W) | |
| Riser Card | RSC-G-66G4 | 1 | 1U LHS GPU Riser card with two PCIe 4.0 x16 slots,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0077V | 2 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | |
| *Rail Set | MCP-290-00180-0N | 1 | L shape rail set for 4U chassis, quick release , for 17.6"W |
