- Supermicro ARS-221GL-NR GPU 2U Barebone Single NVIDIA Grace CPU Superchip

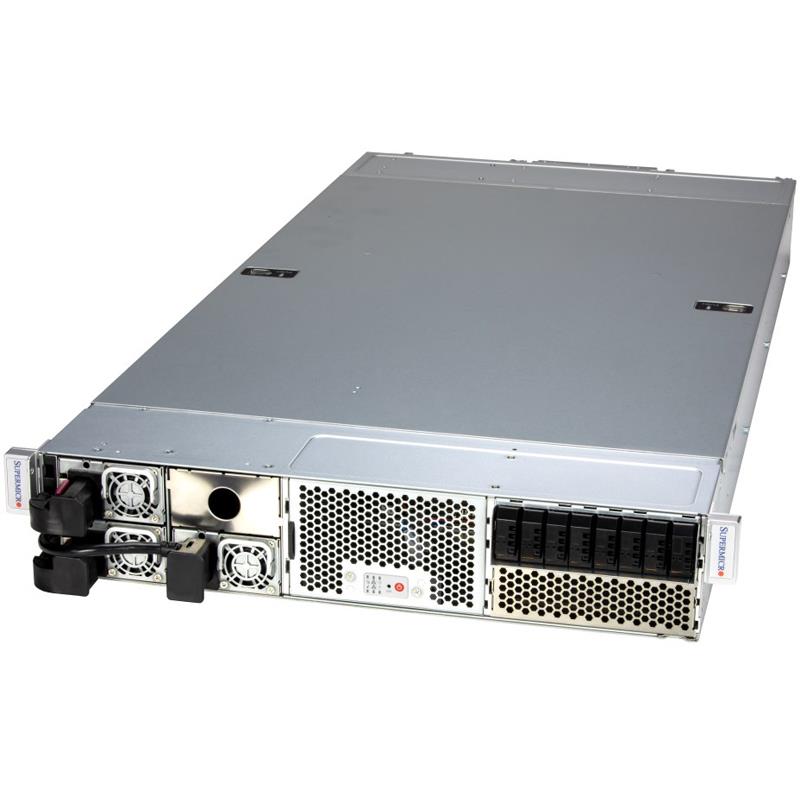

Supermicro ARS-221GL-NR GPU 2U Barebone Single NVIDIA Grace CPU Superchip
• High Performance Computing
• AI/Deep Learning Training
• Large Language Model (LLM) Natural Language Processing
• General purpose CPU workloads, including analytics, data science, simulation, HPC, application servers, and more
Barebone 2U Rackmount SuperServer, Single Socket NVIDIA Grace Superchip Processor, Up to 144C/288T, System on Chip, Up to 480GB: Onboard LPDDR5X DRAM, Up to 4 double-width GPU, 8x E1.S Hot-swap NVMe Drive Slots, Network Connectivity: 1x 10GbE BaseT with NVIDIA ConnectX-7 or Bluefield-3 DPU, Support for Intelligent Platform Management Interface v.2.0, 2000W Power Supply - (ARS-221GL-NR + G1SMH)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum one Grace Superchip Module, Min of 240 Memory, 2 GPUs, 1 Storage device, and 1 NIC or either CX7 or Bluefield 3). Service: OSNBD3 is highly recommended.
1. High density 2U GPU system with up to 4 NVIDIA® H100 PCIe GPUs Highest GPU communication using NVIDIA® NVLINK™ PCIe-based NVIDIA L40s PCIe-based NVIDIA H100 NVL with NVLink Bridge Support
2. Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores
3. 480GB or 240GB LPDDR5X onboard memory option for minimum latency and maximum power efficiency
4. 7 PCIe 5.0 x16 FHFL Slots
5. NVIDIA BlueField-3 Data Processing Unit Support for the most demanding accelerated computing workloads.
6. E1.S NVMe Storage Support
Extra Specifications for Supermicro ARS-221GL-NR GPU 2U Barebone Single NVIDIA Grace CPU Superchip
| Product SKUs | ||
| Product SKUs | ARS-221GL-NR | |
| Motherboard | ||
| Motherboard | ||
| Processor | ||
| CPU | NVIDIA Grace™ CPU Superchip | |
| Core Count | Up to 144C/288T | |
| Note | Supports up to 500W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | Memory Capacity: 0 DIMM slots | |
| Up to 480GB: Onboard LPDDR5X DRAM | ||
| Memory Type: 4800MHz ECC DDR5 DRAM (LPDDR5X) | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 1x 10GbE BaseT with NVIDIA ConnectX®-7 or Bluefield®-3 DPU | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 8+4 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-GP201TS-R000NP | |
| Dimensions and Weight | ||
| Height | 3.46" (88mm) | |
| Width | 17.25" (438.4mm) | |
| Depth | 35.43" (900mm) | |
| Package | 11" (H) x 22.5" (W) x 45.5" (D) | |
| Weight | Net Weight: 67.5 lbs (30.6 kg) | |
| Gross Weight: 86.5 lbs (39.2 kg) | ||
| Available Color | Black Front & Silver Body | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Hard drive activity LED | ||
| Power status LED | ||
| System Overheat & Power Fail LED | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 7 PCIe 5.0 x16 FHFL slot(s) | |
| Drive Bays / Storage | ||
| Drive Bays | 16x E1.S hot-swap NVMe drive slots | |
| System Cooling | ||
| Fans | 6 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-G1SMH | 1 | Super G1SMH Motherboard | |
| Motherboard / Chassis | CSE-GP201TS-R000NP | 1 | 2U Chassis | |
| Add-on Card / Module | AOM-GP101-IPMI-P | 1 | 2U Sapphire Rapids LEGO Server, 2U Grace C2 LEGO Server, | |
| Add-on Card / Module | AOM-PCIE5-GP201-1-P | 3 | Cable Riser, 550mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Add-on Card / Module | AOM-PCIE5-GP201-2-P | 1 | Cable Riser, 600mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Add-on Card / Module | AOM-SCM-NV-P | 1 | BMC Module, Vertical, 1U DC-SCM, DC-SCI 2.0, AST2600, Ro | |
| Add-on Card / Module | AOM-PCIE5-GP201-3-P OR | 1 | Cable Riser, 800mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Add-on Card / Module | AOM-PCIE5-GP201-6-P | 0 | Cable Riser, 800mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Backplane | BPN-E1S5-GP101M | 1 | 1U 8-slot E1.S Gen5 backplane for Nvidia MGX platform | |
| Cable | CBL-CDAT-1033-07 | 1 | 1x3 to 1x3, BMC control, PH0.8, 7cm, 32AWG, RoHS,RoHS | |
| Cable | CBL-CDAT-1033-25 | 1 | 1x3 to 1x3, BMC control, PH0.8, 25cm, 32AWG, RoHS | |
| Cable | CBL-CDAT-1120-25 | 1 | Picoclasp SB,NCSI,2x10 to 2x10,25cm,28AWG,1A/p,RoHS | |
| Cable | CBL-PWEX-0910-25 | 1 | MicroFit (2x1 to 2x1),PH3.0,25cm,11A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-0910-55 | 1 | MicroFit (2x1 to 2x1),PH3.0,55cm,11A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1090-55 | 1 | MicroFit,(2x4 to 2x4),PH3.0,55CM,9A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1093-40 | 1 | MicroFit,(2x2F to 2x2F), PH3.0,40CM,10A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1181RFT-69 | 1 | MicroFit (2x6 to 3 2x2),PH4.0,69cm,9A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1226-25 | 4 | Microfit (2x4,to 2x4) PH3.0,25CM,9A/P,16AWG,RoHS | |
| Cable | CBL-PWEX-1317RFY-3873 | 1 | 2x12VHPWR(12P+4S)+MicroFit 2x2,38/73cm,8.4A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1317RFY-92C5 | 1 | 2x12VHPWR(12P+4S)+Micro Fit 2x2,92/125cm,8.4A/p,16AWG,Ro | |
| Cable | CBL-SAST-1250S4-85 | 1 | SlimSAS x8 (STR to STR),50cm,SAS4,30AWG,RoHS | |
| Cable | CBL-PWCD-0160-IS | 3 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWCD-1301-1 | 1 | PWCD-Kit, Dual Cable, C14-C13, 250v, 10A, RoHS | |
| Cable | CBL-PWCD-1302-1 | 1 | PWCD-Kit, Single Cable, C14-C13, 250v, 10A, RoHS | |
| Power Supply | PWS-2K09F-1R | 3 | AC-DC 1U 2000W 80 Plus Titanium CRPS, reverse airflow, W73.5 | |
| Software | SFT-DCMS-SINGLE | 1 | Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF | |
| Heatsink / Retention | SNK-P4011P | 2 | 2U Passive Heat Sink for NVIDIA Grace Module | |
| *Power Distributor | PDB-GP201-2U4PH | 1 | 2U PDB support redundant powers up to 6KW total output.,RoHS | |
| *Front Panel | FPB-FP826-T | 1 | Chassis front control board for SC826 | |
| *Rail Set | MCP-290-20104-0N | 1 | 37.3 | |
| *Fan | FAN-0241L4 OR | 6 | 60x60x56 mm, 23.3K RPM, Counter Rotating Fan Module, RoHS,Ro | |
| *Fan | FAN-0242L4 | 0 | 60x60x56 mm, 22.3K RPM, Counter Rotating Fan Module, RoHS,Ro |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
