- Supermicro ARS-111GL-NHR GPU 1U Barebone Single NVIDIA GH200 Grace Hopper Superchip

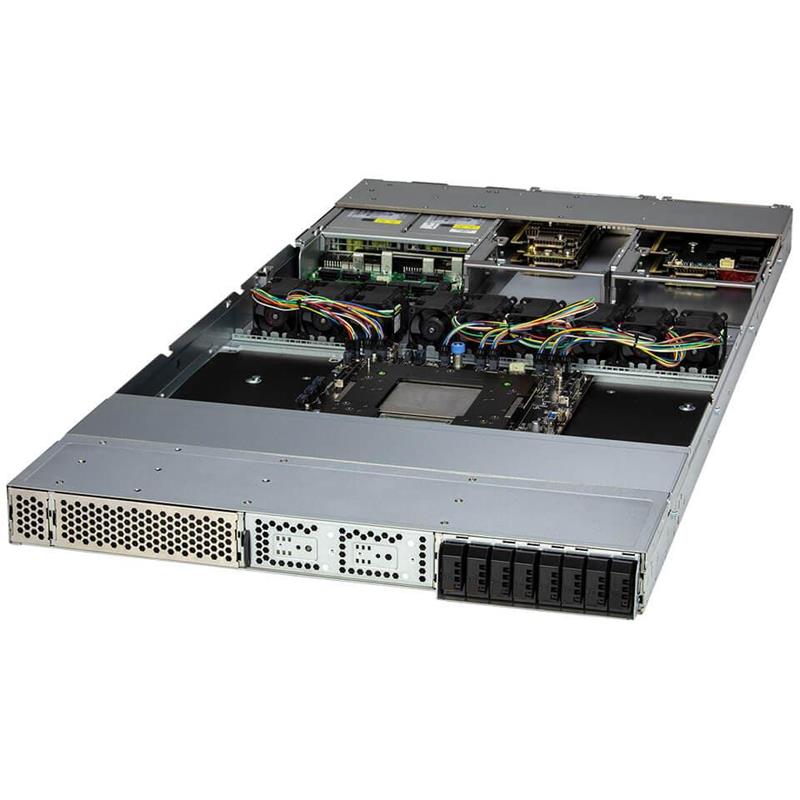

Supermicro ARS-111GL-NHR GPU 1U Barebone Single NVIDIA GH200 Grace Hopper Superchip
• High Performance Computing
• AI/Deep Learning Training and Inference
• Large Language Model (LLM) and Generative AI
Barebone 1U Rackmount SuperServer, Single NVIDIA GH200 Grace Hopper Superchip Processor, System on Chip, Up to 480GB: Onboard LPDDR5X (and additional 96GB HBM3 for GPU), 3 PCIe 5.0 x16 FHFL Slot, 8x E1.S hot-swap NVMe Drive Slots, 2 M.2 NVMe, Network Connectivity: 1 RJ45 1GbE (Dedicated IPMI port), 2000W Power Supply - (ARS-111GL-NHR + G1SMH-G)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).
1. High density 1U GPU system with Integrated NVIDIA® H100 GPU
2. NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
4. Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications
5. 2x PCIe 5.0 x16 slots supporting NVIDIA BlueField®-3 or ConnectX®-7
6. 9 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
Extra Specifications for Supermicro ARS-111GL-NHR GPU 1U Barebone Single NVIDIA GH200 Grace Hopper Superchip
| Processor | ||
| Note | Supports up to 1000W TDP CPUs (Air Cooled) | |
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip | |
| GPU | ||
| Max GPU Count | Up to 1 onboard GPU(s) | |
| Supported GPU | View GPU Options | |
| NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) | ||
| CPU-GPU Interconnect | NVLink®-C2C | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| USB | 2 USB 3.0 port(s) (rear) | |
| Video | 1 mini-DP port(s) | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| PC Health Monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Product SKUs | ||
| Product SKUs | ARS-111GL-NHR | |
| Motherboard | ||
| Motherboard | Super G1SMH-G | |
| System Memory | ||
| Memory | Slot Count: Onboard Memory | |
| Max Memory: Up to 480GB ECC LPDDR5X | ||
| Additional GPU Memory: Up to 96GB ECC HBM3 | ||
| Management | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-MG102TS-R000NDFP | |
| Dimensions and Weight | ||
| Height | 1.75" (44 mm) | |
| Width | 17.33" (440 mm) | |
| Depth | 37" (940 mm) | |
| Package | 9.5" (H) x 48" (W) x 28" (D) | |
| Weight | Gross Weight: 65.5 lbs (29.7 kg) | |
| Net Weight: 48.5 lbs (22 kg) | ||
| Available Color | Silver | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: Total 8 bay(s) 8 front hot-swap E1.S NVMe drive bay(s) | |
| 8 front hot-swap E1.S NVMe drive bay(s) | ||
| M.2 | 2 M.2 NVMe slot(s) (M-key) | |
| System Cooling | ||
| Fans | 9 Removable heavy-duty 4cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 73.5 x 40 x 185 mm | |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166A / Min: 0A (230Vac-240Vac) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 220-240Vac / 50-60Hz (for UL only) | ||
| 2000W: 230-240Vdc / 50-60Hz (for CQC only) | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-G1SMH-G | 1 | Super G1SMH-G Motherboard | |
| Motherboard / Chassis | CSE-MG102TS-R000NDFP | 1 | 1U Chassis | |
| Add-on Card / Module | AOM-IO-GP102-P | 1 | 1U MGX Grace Server, 1x mini DP, 1x RJ45, 1x USB2.0, RoH | |
| Add-on Card / Module | AOM-PCIE5-GP201-10-P | 1 | Cable Riser, 400mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Add-on Card / Module | AOM-PCIE5-GP201-4-P | 1 | Cable Riser, 450mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Add-on Card / Module | AOM-SCM-NV-P | 1 | BMC Module, Vertical, 1U DC-SCM, DC-SCI 2.0, AST2600, Ro | |
| Backplane | BPN-E1S5-GP101M | 1 | 1U 8-slot E1.S Gen5 backplane for Nvidia MGX platform | |
| Cable | CBL-CDAT-1033-25 | 1 | 1x3 to 1x3, BMC control, PH0.8, 25cm, 32AWG, RoHS | |
| Cable | CBL-CDAT-1120-50B | 1 | [NR] Picoclasp SB,NCSI,2x10 to 2x10,BK,50cm,28AWG,1A/p,RoHS | |
| Cable | CBL-MCIO-1260M5 | 2 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS | |
| Cable | CBL-PWEX-0910-25 | 1 | MicroFit (2x1 to 2x1),PH3.0,25cm,11A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-0910-50 | 1 | MicroFit (2x1 to 2x1),PH3.0,50cm,11A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1093-85 | 1 | [NR] MicroFit,(2x2F to 2x2F), PH3.0,85CM,10A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1114-45 | 2 | [NR] Microfit,(2X4 to 2X4),PH3.0,45CM,9A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1181RFT-45 | 1 | [NR]MicroFit (2x6 to 3 2x2),PH4.0,45cm,9A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1234Y-40 | 1 | [NR] MicroFit,(2x4 to 2 2x2),PH3.0,40cm,9A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1316RF2-85 | 2 | [NR] 12VHPWR,2x6+4S /(RF to RF), 85cm,8.33A/p,16AWG,RoHS | |
| Cable | CBL-SAST-1240LES4-85 | 1 | [NR] SlimSAS x8 (LE to STR),40cm,SAS4,30AWG,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Fan | FAN-0248L4 | 9 | 40x40x56 mm, 31K-28K RPM, Counter-rotating Fan, RoHS,RoHS | |
| Drive Tray(s) | MCP-220-10204-0N | 1 | MGX 1U height PCIE Bay Module with 1x Bridge Board Bracket | |
| Drive Tray(s) | MCP-220-10201-0N | 1 | MGX 1U height IO Bay Module with 1x bridgeboard bracket | |
| Drive Tray(s) | MCP-220-10203-0N | 1 | MGX 1U height front control board bay (1 node only) | |
| Power Distributor | PDB-GP101-1U2PG | 1 | 1U 2 input powers redundancy output up to 5KW.,RoHS | |
| Power Supply | PWS-2K09A-1R | 2 | AC-DC 1U 2000W 80 Plus Titanium CRPS, forward airflow, W73.5 | |
| Storage Controller Card | SCC-P2N2M2-X1 | 1 | support 2x PCIe Gen 5 NVMe M.2 slot per node | |
| Software | SFT-DCMS-SINGLE | 1 | Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF | |
| Heatsink / Retention | SNK-P4013V | 1 | 1U Passive GPU VC Heat Sink for NVIDIA CG1-Hopper 700W | |
| Heatsink / Retention | SNK-P4014V | 1 | 1U Passive CPU VC Heat Sink for NVIDIA CG1- Grace | |
| *Rail Set | MCP-290-20104-0N | 1 SET | 37.3 |
