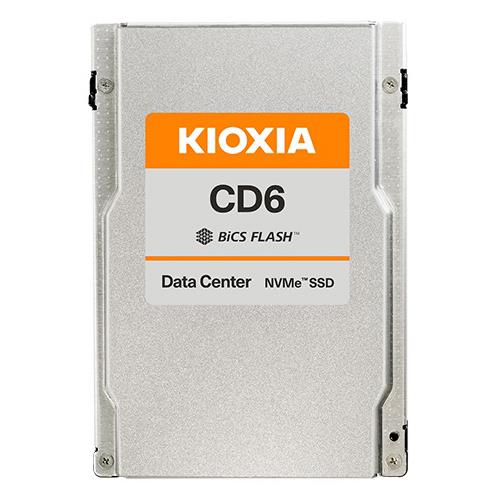

  2. Kioxia HDS-TUN-KCD6FLUL960G 960GB NVMe Solid-State Drive PCIe 4.0 2.5in 15mm FIPS SED TLC 1DWPD - CD6-R Series
Kioxia HDS-TUN-KCD6FLUL960G 960GB NVMe Solid-State Drive PCIe 4.0 2.5in 15mm FIPS SED TLC 1DWPD - CD6-R Series

Kioxia HDS-TUN-KCD6FLUL960G 960GB NVMe Solid-State Drive PCIe 4.0 2.5in 15mm FIPS SED TLC 1DWPD - CD6-R Series

  • Designed for high-density storage deployments

  • Power loss protection (PLP) and end-to-end data correction

  • Streaming media and content delivery networks Applications

  • Consistent performance, reliability for demanding 24x7 environments

The NVMe Solid-State Drive Features 960GB PCIe 4.0 2.5-inch 15mm Z-height Optimized For Scale-out And Cloud Applications, Including Big Data/IoT, Online Transaction Processing, And Virtualization, BiCS FLASH 96-layer 3D TLC 1.0DWPD Self-Encrypting Drive (SED) - Federal Information Processing Standards (FIPS), CD6-R Series - OEM

$ 0.00$ 0.000.0USD

$ 0.00

Option not available

PreOrder
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Data Center NVMe Read-intensive SSD

    • The CD6-R Series is a read-intensive data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe Gen4 x4 interface, CD6-R Series SSDs deliver consistent performance.

    • Featuring KIOXIA Corporation's 96-layer BiCS FLASH 3D TLC memory,  2.5-inch form factor, making them well-suited for hyperscale data center applications.

    • SIE option supports Crypto Erase, which is a standardized feature defined by NVM Express Inc.

    Extra Specifications for Kioxia HDS-TUN-KCD6FLUL960G 960GB NVMe Solid-State Drive PCIe 4.0 2.5in 15mm FIPS SED TLC 1DWPD - CD6-R Series

    Main Specifications
    Device TypeSSD Hard drive with NVMe
    Capacity960GB
    Form Factor2.5-inch, 15mm Z-height
    InterfacePCIe 4.0, NVMe 1.4
    Interface Speed64 GT/s (Gen4 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Height 15.0 mm + 0, - 0.5 mm x Width 69.85 ± 0.25 mm x Length 100.45 mm Max
    Weight130 g Max.
    Performance
    Internal Data Rate5800 MBps (read) / 1300 MBps (write)
    4KB Random Read700K IOPS
    4KB Random Write30K IOPS
    Drive Writes Per Day (DWPD)1
    Power
    Supply Voltage12 V ± 10%, 3.3 Vaux ± 15%
    Power Consumption 13 W (Active), 5.0 W (Ready)
    Miscellaneous
    MTBF2.5 (M hours)
    FeaturesPCIe 4.0, NVMe 1.4 specification compliant, Form factor: 2.5-inch, 15mm Z-height, Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH 96-layer 3D TLC, SFF-TA-1001 conformant (U.3), works with Tri-mode controllers and backplanes, Single-port design, optimized for data center class workloads, 6th generation, two-die failure recovery and double parity protection, Consistent performance and reliability for demanding 24x7 environments, Designed for high-density storage deployments, Power loss protection (PLP) and end-to-end data correction
    ApplicationsHyperscale, IoT and big data analytics, Online transaction processing (OLTP), (transactional and relational databases), Virtualized environments, Streaming media and content delivery networks
    Environmental
    Operating EnvironmentTemperature (Operating): 0 °C to 70 °C
    Humidity (Operating): 5 % to 95 % R.H.
    Vibration (Operating): 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
    Shock (Operating): 9,800 m/s2 { 1,000 G } ( 0.5 ms duration )

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
