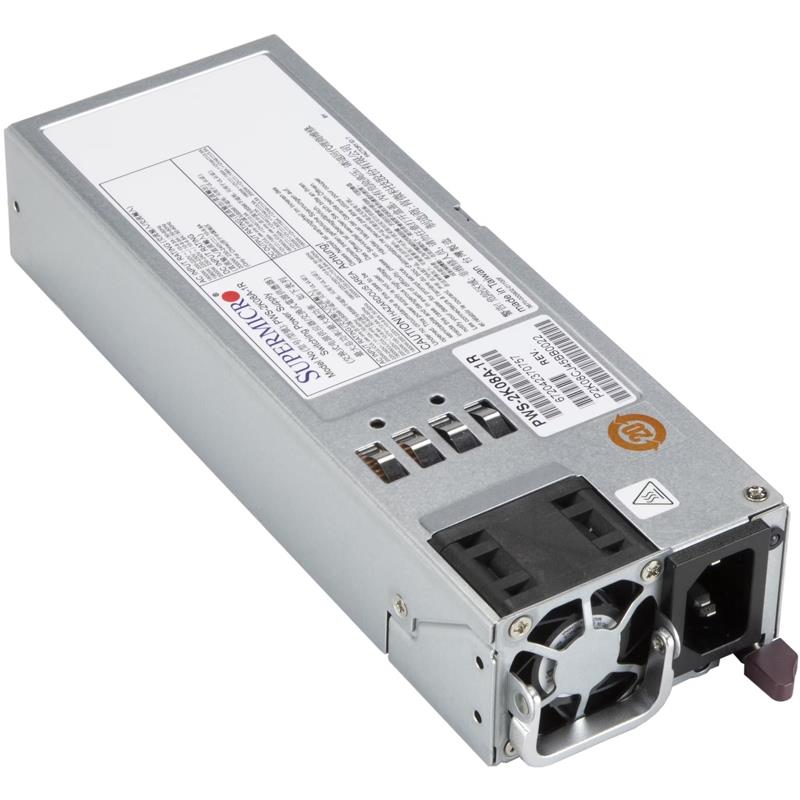

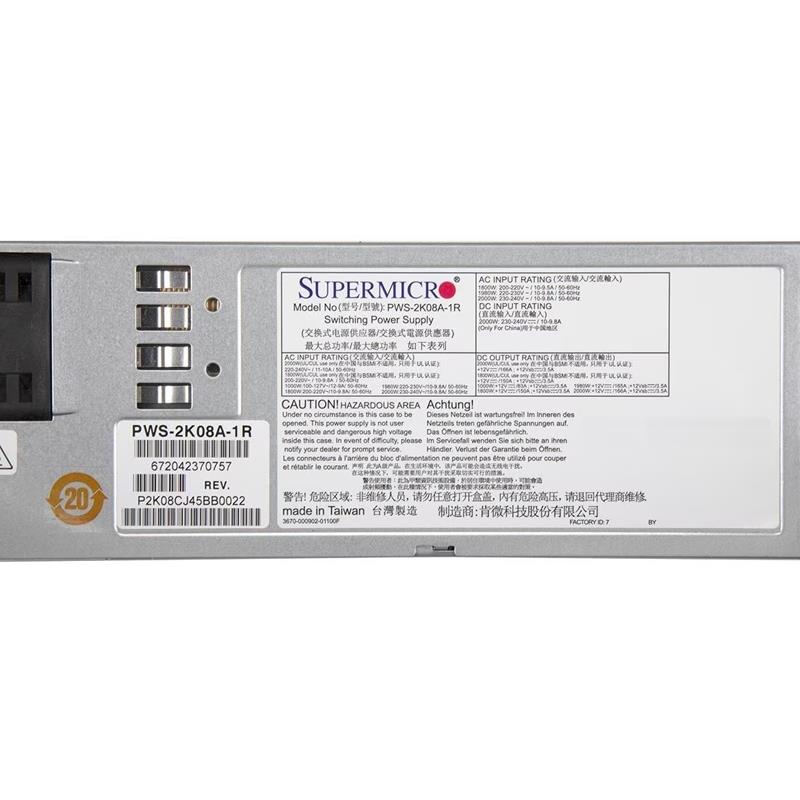

Supermicro PWS-2K08A-1R 1U 2000W Redundant Titanium Power Supply with PMBus Support
Supermicro PWS-2K08A-1R Redundant 1U Power Supply 2000W 80 Plus Titanium With PMBus
Supermicro PWS-2K08A-1R Redundant 1U Power Supply 2000W 80 Plus Titanium With PMBus

Supermicro PWS-2K08A-1R 1U 2000W Redundant Titanium Power Supply with PMBus Support

  • 2000W Power Supply with PMBus

  • PWS-2K08A-1R is an 80 Plus Titanium Level

  • Certified and Designed for Supermicro Chassis

This High-efficiency 2000W Power Supply is Designed For Supermicro 1U Server Systems. It Features 80 Plus Titanium Efficiency, Gold Finger Output, And An IEC 60320 C14 Inlet. With PMBus 1.2 Support, It Allows Remote Monitoring And Control. Supports 180Vdc–300Vdc Wide DC Input. RoHS and REACH Compliant - (PWS-2K08A-1R)

$ 536.00$ 536.00536.0USD

$ 536.00

Option not available

PreOrder
2 lb

    This combination does not exist.

    Add to Cart

    The Supermicro PWS-2K08A-1R is an 80 Plus Titanium power supply capable of supplying 2000W output power greater than 96% efficiency. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over voltage, over current, and short-circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean time between failure (MTBF) of greater than 200,000 hours. This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

    Extra Specifications for Supermicro PWS-2K08A-1R 1U 2000W Redundant Titanium Power Supply with PMBus Support

    Main Specifications
    Device TypePower supply
    Form Factor1U form factor
    Capacity2000W
    TypeRedundant
    Output TypeGold Finger
    Power Supply
    Dimension (W x H x L)73.5 x 203 x 40 mm
    +5VN/A
    +12V83A (100-127Vac) 150A (200-220Vac) 165A (220-230Vac) 166A (230-240VAc) 166A (220-240Vac) for (UL only)
    +3.3VN/A
    +12V Standby3.5A
    Input Frequency Range50-60Hz
    Input Current Range100-127Vac / 12 – 9A 200-220Vac / 10 – 9.8A 220-230Vac / 10 – 9.8A 230-240Vac / 10- 9.8A 220-240Vac / 11 – 10A (for UL only) 230-240Vdc / 10-9.8A (China only)
    Inlet ConnectorIEC 60320 C14
    PFCN/A
    Power Device
    PMBUSPMBus 1.2 Support for Remote Management
    80 PLUS Certification80 Plus Titanium
    5V standbyN/A
    Power Efficiency
    Energy Efficient96%+ Efficiency
    Miscellaneous
    Compatible ServersAS-4124GS-TNR
    Environmental ComplianceRoHS and REACH compliant

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
