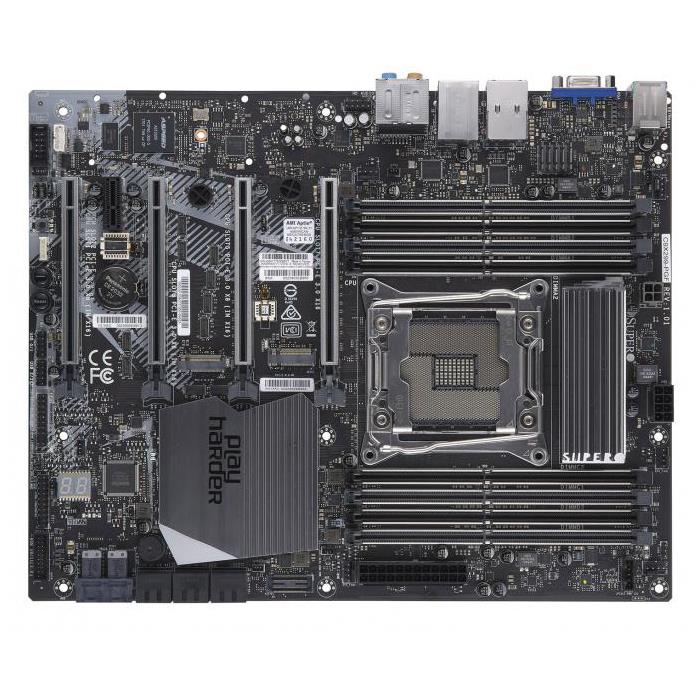

Supermicro C9X299-PGF Motherboard ATX Single Socket LGA-2066 (Socket R4) Core i9 Extreme X-series Processors Intel 10th Generation

Supermicro C9X299-PGF Motherboard ATX Single Socket LGA-2066 (Socket R4) Core i9 Extreme X-series Processors Intel 10th Generation

  • Supports a single Intel Core X-Series processor

  • Onboard 6 SATA3 (6 Gbps) ports with RAID 0, 1, 5, 10 support

  • Up to 256GB Unbuffered non-ECC UDIMM across 8 DIMM slots

  • Equipped with two RJ45 Gigabit Ethernet ports for high-speed networking

Motherboard ATX, Supports Single Socket LGA-2066 (Socket R4) Intel 7th Generation Core i7 X-series, Intel Core i9 Extreme X-series, Intel 9th Generation Core i7 X-series, Intel 10th Generation Core i9 Extreme X-series, Intel 9th Generation Core i9 X-series Processors. Supports Up to 256GB DDR4-2666MHz UDIMM in 8 DIMM slots - On-Board: 6 SATA3 (6 Gbps) ports With RAID, LAN ports: 2 RJ45 Gigabit Ethernet LAN Ports, Includes 4 PCIe 3.0 x16, 1 PCIe 3.0 x1, M.2 Form Factor: 22110, 2280 - Key: M-Key for SSD and Optane - (MBD-C9X299-PGF)

Contact us for volume discounts

    This combination does not exist.

    InStock
    2 lb
    Email For Price

    1. Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 7th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i7 X-series, Intel® 9th Generation Core™ i9 X-series, Intel® Core™ i9 Extreme X-series Processor Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP
    2. Intel® X299
    3. 256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 8 DIMM slots
    4. 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x1 ***4xPCI-E3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCI-E3.0x1 slots*** M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key (RAID 0,1 support) M-Key for SSD and Optane U.2 Interface: PCI-E 3.0 x4
    5. 1 VGA port
    6. 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    7. Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Aquantia 5G LAN chip AQC108

    Extra Specifications for Supermicro C9X299-PGF Motherboard ATX Single Socket LGA-2066 (Socket R4) Core i9 Extreme X-series Processors Intel 10th Generation

    Product SKUs
    Product SKUsMBD-C9X299-PGF
    Physical Stats
    Form FactorATX
    Dimension12" x 9.6" (30.48cm x 24.38cm)
    Processor
    CPUIntel® 7th Generation Core™ i7 X-series, Intel® Core™ i9 Extreme X-series Processor, Intel® 9th Generation Core™ i7 X-series, Intel® 10th Generation Core™ i9 Extreme X-series, Intel® 9th Generation Core™ i9 X-series
    Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
    Support Intel Skylake-X refresh CPU
    System Memory
    Memory Capacity8 DIMM slots
    256GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
    This platform doesn’t support DRAM Size 16Gb memory.
    Memory Type2666/2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin
    DIMM Sizes4GB, 8GB, 16GB, 32GB
    Memory Voltage1.2V
    On-Board Devices
    ChipsetIntel® X299
    SATA6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMIASPEED AST2500
    AudioALC 1220 HD Audio
    Network ControllersSingle LAN with Aquantia 5G LAN chip AQC108
    Single LAN with Intel® Ethernet Controller I210-AT
    Input / Output
    LAN2 RJ45 Gigabit Ethernet LAN ports
    USB2 USB 3.0 port(s) (2 rear)
    4 USB 2.0 port(s) (4 via header)
    2 USB 3.2 Gen1 port(s) (2 via header)
    4 USB 3.2 Gen2 port(s) (1 type C; 3 type A)
    Video Output1 VGA port(s)
    Serial Port1 COM Port(s) (1 header)
    TPM1 TPM Header
    Expansion Slots
    PCIe4 PCIe 3.0 x16,
    1 PCIe 3.0 x1
    ***4xPCIe3.0 x16 Slots(8/NA/16/16 or 8/8/8/16 or NA/4/8/16(Skylake-X 28 Lanes) or NA/4/4/8(Kabylake-X), 1xPCIe3.0x1 slots***
    M.2Key: M-Key
    Form Factor: 22110, 2280
    M-Key for SSD and Optane
    M.2 Interface: PCIe 3.0 x4, RAID 0,1
    System BIOS
    BIOS Type128MB UEFI
    Management
    SoftwareSuperDoctor® 5, Watchdog
    PC Health Monitoring
    VoltageVBAT, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V, +3.3V, +12V
    FANFan speed control
    PWM fan speed control
    Thermal control tachometer fan connectors
    Overheat LED indication
    5x 4-pin fan headers (up to 5 fans)
    Other FeaturesWOL, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management, Voltage and Frequency Overclocking, Intel Smart Response Technology
    NamePart NumberPriceAdd to CartQty.Description
    TPM security module (optional, not included)AOM-TPM-9655V$ 43.001-
    TPM security module (optional, not included)AOM-TPM-9655V-C$ 43.001-
    TPM security module (optional, not included)AOM-TPM-9665V-FC1-
    TPM security module (optional, not included)AOM-TPM-9665V$ 43.001-
    TPM security module (optional, not included)AOM-TPM-9665V-C$ 43.001-

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
