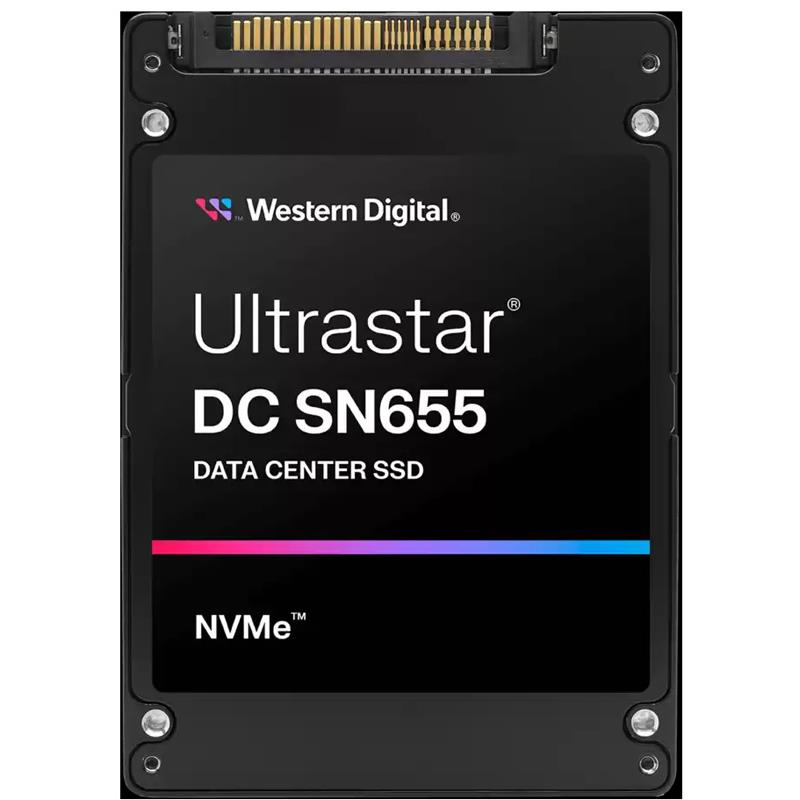

Western Digital WUS5EA138ESP7E3 3.84TB NVMe Solid-State Drive PCIe Gen4 2.5in U.3 15 mm ISE TLC NAND 1DWPD - Ultrastar DC SN655 Series

End-to-end data protection and additional enterprise features
Designed and built for the standard 2.5” SSD storage infrastructure
Support for U.2 and U.3 backplanes and features power loss protection
Optimized for cloud and scaleout workloads, big data, artificial intelligence

The NVMe Solid-State Drive Features 3.84TB PCIe 4 x4 Dual-Port 2.5-inch U.3 15 mm Optimized For Cloud And Scaleout Workloads, Western Digital BiCS5 3D TLC NAND 1.0DWPD Instant Secure Erase (ISE) Ultrastar DC SN655 Series - OEM

Data strategy, not just data storage

Ultrastar NVMe enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.

Unlocking the Full Potential of Enterprise SSDs

With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.

Emerging Workloads

Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.

Extra Specifications for Western Digital WUS5EA138ESP7E3 3.84TB NVMe Solid-State Drive PCIe Gen4 2.5in U.3 15 mm ISE TLC NAND 1DWPD - Ultrastar DC SN655 Series

Main Specifications
Device Type	NVMe Solid state drive - internal
Capacity	3.84TB
Form Factor	2.5-inch U.3, 15mm
Interface	PCIe Gen4, NVMe 1.4b
NAND Flash Memory Type	Western Digital BiCS5 3D TLC NAND
Dimensions (WxDxH)	3.95 x 2.75 x 0.59 in
Weight	147.3gms
Performance
Internal Data Rate	6800 MBps (read) / 2600 MBps (write)
4KB Random Read	1000K IOPS
4KB Random Write	112K IOPS
Drive Writes Per Day (DWPD)	1
Miscellaneous
MTBF	2.5M hours
Power
Power Consumption	16W
Idle (W)	<8W
Environmental
Operating Environment	Operating Temperature Range: 0°C to 70°C
	Non-Operating Temperature: -40°C to 85°C

Warranty:	3 years
Coverage:	Replacement or repair
Average Service Time:	1-2 weeks
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Western Digital
Type of Support:	FULL
Phone No.:	(800) 275-4932
URL:	Click here for Manufacturer Website
