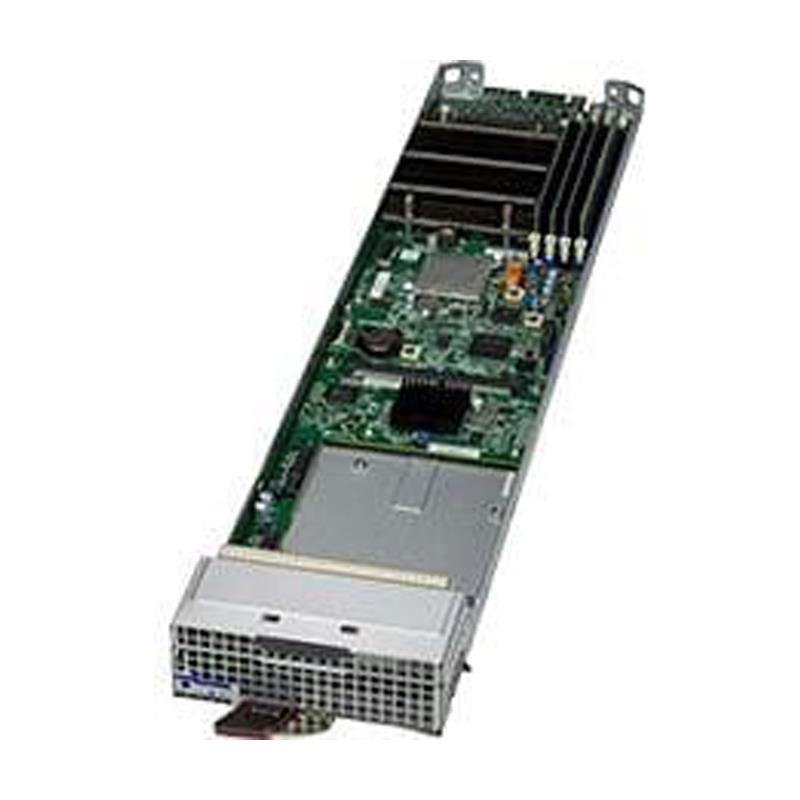

Supermicro MBI-311A-1C2 MicroBlade 6U Barebone Single Intel Core i9-13900E/TE and i9-12900E/TE Processors 13th Generation

Supermicro MBI-311A-1C2 MicroBlade 6U Barebone Single Intel Core i9-13900E/TE and i9-12900E/TE Processors 13th Generation

• Cloud Gaming
• E-commerce
• Cloud Computing
• Content Creation
• Web/Collocation Services
• Web Cache, CDN, Video Streaming
• Social Networking, Downloads
• Corporate • WINS, DNS, Print, Login
• 140 UP nodes per 42U Rack

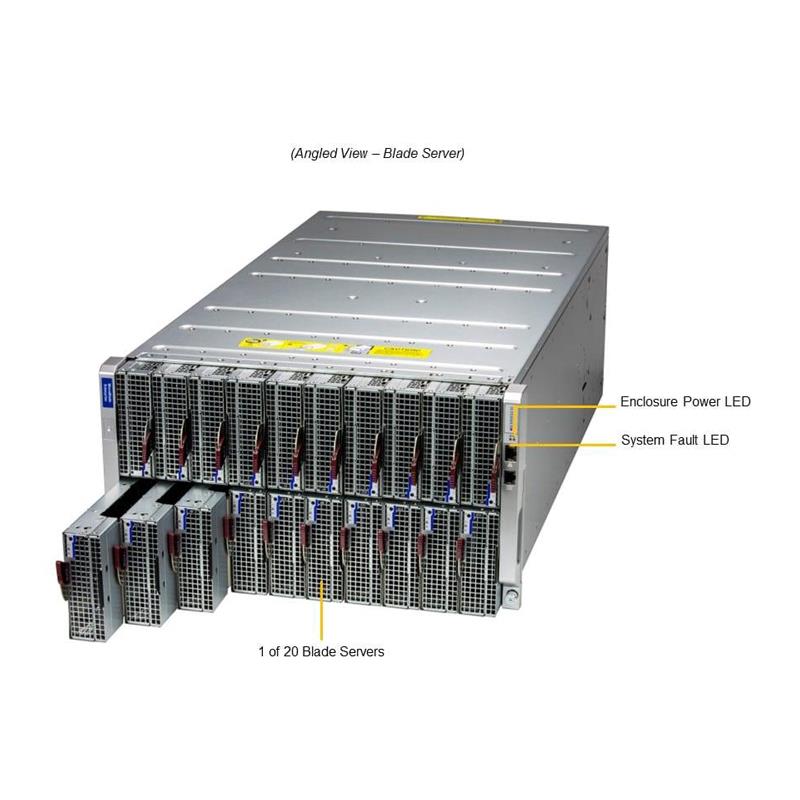

• 20 UP nodes in 6U

MicroBlade 6U For M620 Enclosure, Supports Single Socket (LGA 1700) Supporting Intel Core i9-13900E/TE, i9-12900E/TE, i7-13700E/TE, i7-12700E/TE, i5-13500E/TE, i5-12500E/TE, i3-13100E/TE, i3-12100E/TE Processors 13th Generation, Intel W680 Chipset, Up to 128GB in 4 DIMM slots, UDIMM, On-Board: SAS3 (12Gbps) via Avago 3008, 2x 2.5in SAS3 (12Gbps) Drives, M.2: 1 SATA3/NVMe (PCIe 4.0 from PCH), 1x SATA DOM, Network Connectivity: 2x 1GbE LAN ports via Intel i350, Dedicated LAN Supports IPMI 2.0, (MCP-680-31001-0N + MBD-B4SA1-CPU) - MBI-311A-1C2

1. Single socket (LGA 1700) supports the following 13th Gen Intel® Core® processors: i9-13900E/TE, i9-12900E/TE, i7-13700E/TE, i7-12700E/TE, i5-13500E/TE, i5-12500E/TE, i3-13100E/TE, i3-12100E/TE Please contact Supermicro representative for other CPU SKU support
2. Up to 128GB ECC LP UDIMM DDR5 4400 MT/s in 4 DIMM slots
3. Up to 2x 2.5" SAS3 (12Gbps) drives M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH) M.2 Form Factor: 2280/22110 M.2 Key: M-Key
4. Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
5. Avago 3008 SAS3 controller
6. Aspeed AST2600

Extra Specifications for Supermicro MBI-311A-1C2 MicroBlade 6U Barebone Single Intel Core i9-13900E/TE and i9-12900E/TE Processors 13th Generation

Product SKUs
Product SKUs
Motherboard
Motherboard
Processor
CPU	Single LGA 1700, CPU TDP support up to 125W
	Support 13th Gen Intel® Core® processors
Cores	Up to 24 cores, 32 threads
System Memory
Memory Capacity	4 DDR5 DIMM sockets
	Supports up to 128GB DDR5 ECC LP UDIMM
Memory Type	4400 MT/s ECC DDR5 UDIMM
DIMM Sizes	32GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
	Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® W680 chipset
SAS	SAS3 (12Gbps) via Avago 3008
Network Controllers	Dual 1GbE LAN ports
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
System BIOS
BIOS Type	128Mb Flash EEPROM
BIOS Features	SMBIOS 2.7.1
	Plug and Play (PnP)
	APM 1.2
Dimensions
Height	1.2" (30.48mm)
Width	4.94" (125.48mm)
Depth	23.2" (589.28mm)
Weight	Gross Weight: 3.3 lbs (1.5 kg)
Available Colors	Silver Grey
Front Panel
LEDs	Power LED
	UID / KVM LED
	Network Activity LED
	Fault LED
Drive Bays
Internal	2x 2.5" SAS3 (12Gbps) drives
M.2	M.2 Form Factor: 2280/22110
	M.2 Key: M-Key
	M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH)
Others	1x SATA DOM
Input / Output
TPM	1 TPM Header
Operating Environment / Compliance
Environmental Spec.	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Operating Temperature: 10°C to 38°C (50°F to 100.4°F)
Electromagnetic Compatibility (EMC)
United States / Canada	FCC- Emissions (US) Verification
Europe	EN55022 - Emissions
	EN55024 - Immunity
	EN61000-3-2 - Harmonics
	EN61000-3-3 - Voltage Flicker
	CE - EMC Directive 89/336/EEC

Name	Part Number	Qty.	Description
Motherboard	MBD-B4SA1-CPU	1	MicroBlade Board
MicroBlade Sled	MCP-680-31001-0N	1	M620 MicroBlade Modularized UP (complete assembly)
Micro Blade Module Chassis	MCP-630-31001-0N	1	6U 20 MicroBlade Tray Top cover for M620 enclosure
Air Shroud	MCP-310-31001-0B	1	M620 MicroBlade Modularized Alderlake UP Air Shroud
	Add-on Card	AOM-BPNIO-MSC-P	1	AOM-BPNIO-MSC, I/O module for uBlade, RoHS
Software	SFT-OOB-LIC •	1	OOB Management Package (per node license)

Name	Part Number	Price	Add to Cart	Qty.	Description
	TPM security module(optional, not included)	AOM-TPM-9670V	$ 52.00		1	TPM module (Vertical) TPM 2.0
	TPM security module(optional, not included)	AOM-TPM-9671V	$ 52.00		0	TPM module (Vertical) TPM 1.2.
SATA DOM	-			0	Supermicro SATA DOM Solutions [Details]
	Heatsink / Retention	SNK-P1041V	$ 56.50		0	1U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series
SATA DOM	MEM-IDSAHT1-032G			1	IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	MEM-IDSAHT1-064G			0	IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	MEM-IDSAHT1-128G			0	IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	MEM-IDSAHT1-256G			0	IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	MEM-IDSAHM3A-016G			0	IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	MEM-IDSAHM3A-032G			0	IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	MEM-IDSAHM3A-064G			0	IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	MEM-IDSAHM3A-128G			0	IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal
SATA DOM	-			0	SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal
SATA DOM	-			0	SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal
SATA DOM	-			0	SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal
SATA DOM	-			0	SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
Software	SFT-DCMS-Single			1	DataCenter Management Package (per node license)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro MBI-311A-1C2 MicroBlade 6U Barebone Single Intel Core i9-13900E/TE and i9-12900E/TE Processors 13th Generation

$ 729.50$ 729.50729.5USD
