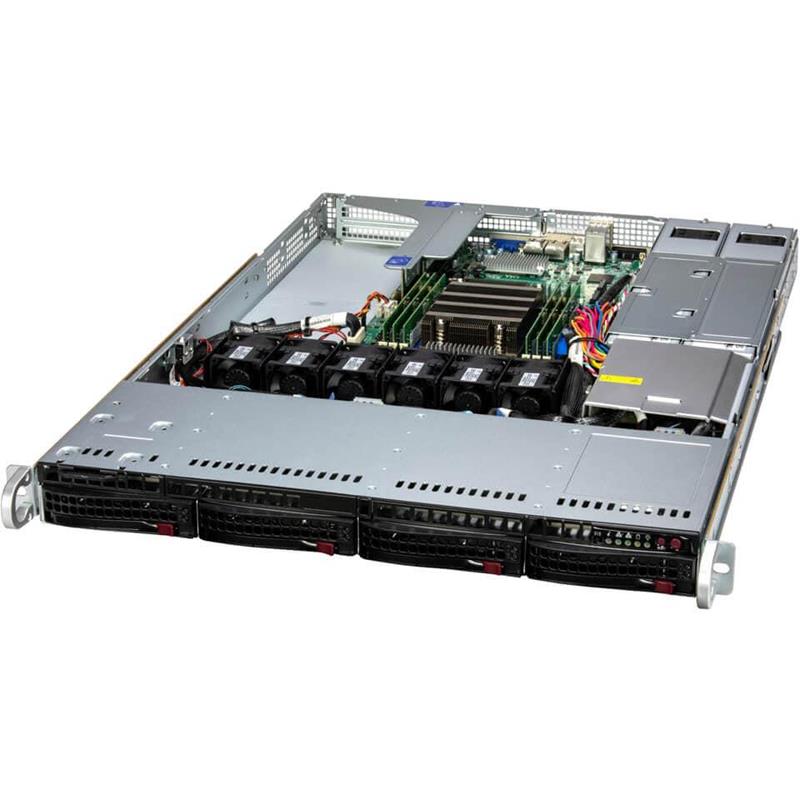

Supermicro AS-1015SV-WTNRT WIO A+ 1U Barebone Single AMD EPYC 8004 Series Processor
• Virtualization
• Data Center Optimized
• Firewall Applications
• Database/Storage
• Edge/Cloud Computing Services
Barebone 1U Rackmount SuperServer, Supports Single Socket, Supporting AMD EPYC 8004 Series Processor, System on Chip, Up to 576GB in 6 DIMM slots, RDIMM, On-Board: SATA (6Gbps), 4x 3.5in Hot-swap SATA/SAS/NVMe Drive Bays, M.2 M-key, 2280, 22110, Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 10 GbE LAN Ports, 860W Power Supply - (CSE-815BTS-R000WNP + H13SVW-NT) - AS-1015SV-WTNRT
1. Single Socket AMD EPYC™ 8004 Series Processor
2. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
3. 2 PCIe 5.0 x16 FHFL; 1 PCIe 5.0 x16 LP
4. 1x dedicated IPMI LAN, 2x 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
5. 4 hot-swap 3.5" drive bays support SATA(default)/NVMe/SAS drives;(Optional cables or SAS controller card for NVMe and SAS drives support)
6. Dual 860W Redundant Titanium Level Power Supplies;(Full redundancy based on configuration and application load)
7. 2 On-board PCIe 4.0 x4 M.2 NVMe 80mm/110mm (Boot)
Extra Specifications for Supermicro AS-1015SV-WTNRT WIO A+ 1U Barebone Single AMD EPYC 8004 Series Processor
| Product SKUs | ||
| Product SKUs | AS -1015SV-WTNRT | |
| Motherboard | ||
| Motherboard | Super H13SVW-NT | |
| Processor | ||
| CPU | Single processor(s) | |
| AMD EPYC™ 8004 Series Processor | ||
| Core Count | Up to 64C/128T | |
| Note | Supports up to 225W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 double-width or 2 single-width GPU(s) | |
| System Memory | ||
| Memory | Slot Count: 6 DIMM slots | |
| View Memory Options | ||
| Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom® BCM57416 | |
| View AOC Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| NVMe | View NVMe Options | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 10 GBASE-T LAN port(s) | ||
| USB | 4 port(s) (rear) | |
| Video | 1 VGA port(s) | |
| Serial | 1 COM port(s) (Rear) | |
| TPM | 1 TPM Onboard/port 80 | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | 1U redundant 800/860W Titanium AC power supply | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-815BTS-R000WNP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.6" (650 mm) | |
| Package | 8.5" (H) x 23.5" (W) x 33.7" (D) | |
| Weight | Gross Weight: 34.5 lbs (15.46 kg) | |
| Net Weight: 21.5 lbs (9.75 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Unit Identification (UID) LED | ||
| Fan Fail/System Over Heat LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Unit Identification (UID) button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| M.2 | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Default: Total 4 bay(s) 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bay(s) | ||
| 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bay(s) | ||
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110) | |
| View M.2 Options | ||
| System Cooling | ||
| Fans | 6 Heavy duty counter-rotating 40x40x56mm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 54.5 x 40.25 x 322 mm | |
| +12V | Max: 66.67A / Min: 0A (100Vac-127Vac) | |
| Max: 71.67A / Min: 0A (200Vac-240Vac) | ||
| Max: 71.67A / Min: 0A (Vdc-240Vdc) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 800W: 100-127Vac / 50-60Hz | |
| 860W: 200-240Vac / 50-60Hz | ||
| 860W: 240Vdc / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SVW-NT | 1 | Super H13SVW-NT Motherboard | |
| Motherboard / Chassis | CSE-815BTS-R000WNP | 1 | 1U Chassis | |
| Backplane | BPN-NVME5-LA15-S4 | 1 | 1U 4-Slot 3.5 | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-MCIO-1270OT4S2-85 | 1 | MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS | |
| Cable | CBL-0335L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Fan | FAN-0163L4 | 6 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | |
| Front Panel | MCP-280-00033-0N | 1 | Universal Thermal sensor kit with 80cm I2C cable | |
| Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) | |
| Power Supply | PWS-861A-1R | 2 | 1U redundant 800/860W Titanium AC power supply 54.5x40x322mm | |
| Power Supply | MCP-250-81502-0N | 1 | SC815 Redundant Power Distributor Cover | |
| Riser Card | RSC-W-66G5 | 1 | 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R | |
| Riser Card | RSC-WR-6G5H | 1 | 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0062P-1 | 1 | 1U Passive CPU Heat Sink for AMD Socket SP6 Processors | |
| *Power Distributor | PDB-PT116-SL8824 | 1 | Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths | |
| *Fan Holder | CSE-PT0135 | 1 | FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS | |
| *Fan Holder | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) | |
| *Peripheral Drive | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS | |
| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Rear Window | MCP-240-00202-0N | 1 | 1U WIO rear window to support top-load riser bracket for SC815B,SC116B | |
| *Rail Set | MCP-290-00016-0N | 1 | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N | |
| *Rail Set | MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 | |
| *Air Shroud | MCP-310-81506-0B | 1 | Air block for 1U WIO SC815B with X13SEW |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2.5" to 3.5" Toolless Converter Tray | MCP-220-00118-0B • | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | |||
| GPU Kit | CBL-0424L • | 1 | GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm | |||
| GPU Kit | CBL-PWEX-1240 | 1 | GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM | |||
| GPU Kit | MCP-310-81504-0B | $ 26.00 | 1 | 1U air shroud for SC815/SC116 for Tesla V100 and Tesla T4 | ||
| NVMe Cable (Drive Bay 0-1) | CBL-MCIO-1235M5Y • | 1 | MCIO (x8 to 2 x4) STR,25CM,85OHM | |||
| NVMe Cable (Drive Bay 2-3) | CBL-MCIO-1225M5Y • | 1 | MCIO (x8 to 2 x4) STR,25CM,85OHM | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
