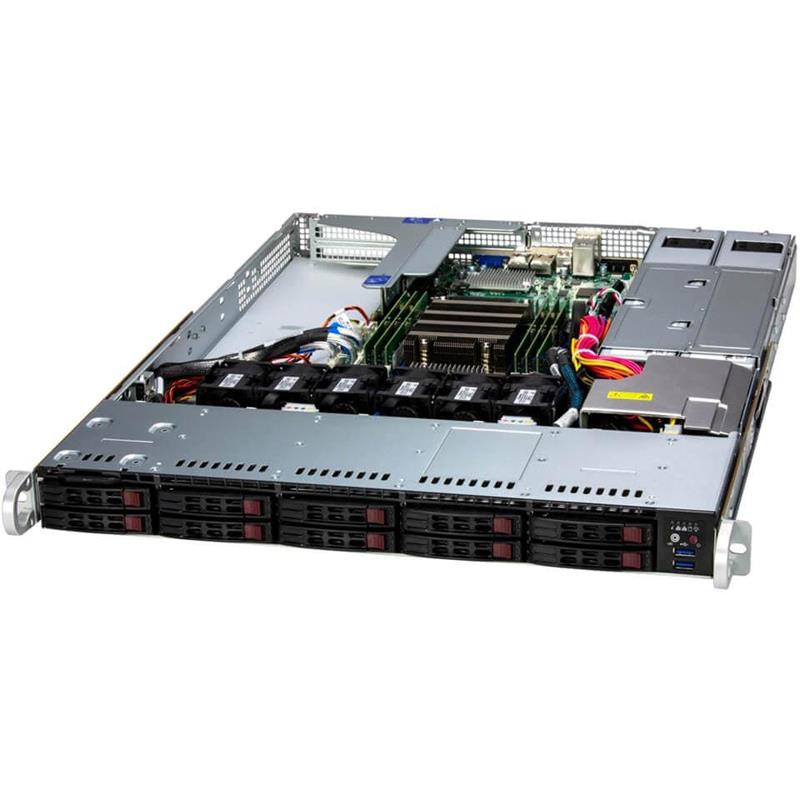

Supermicro AS-1115SV-WTNRT WIO A+ 1U Barebone Single AMD EPYC 8004 Series Processor
• Virtualization
• Data Center Optimized
• Firewall Applications
• Database/Storage
• Edge/Cloud Computing Services
Barebone 1U Rackmount SuperServer, Supports Single Socket, Supporting AMD EPYC 8004 Series Processor, System on Chip, Up to 576GB in 6 DIMM slots, RDIMM, On-Board: SATA (6Gbps), 10x Hot-swap 2.5in Drive Bays Support SATA (default), Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 10 GbE LAN Ports, 860W Power Supply - (CSE-116BTS-R000WNP + H13SVW-NT) - AS-1115SV-WTNRT
1. Single Socket AMD EPYC™ 8004 Series Processor
2. 6 DIMM slots, DDR5-4800MHz memory, support up to 768GB
3. 2 PCIe 5.0 x16 FHFL; 1 PCIe 5.0 x16 LP
4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
5. 10 Hot-swap 2.5" SATA(default)/NVMe/SAS drive bays or 6 SATA/NVMe hybrid + 4 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)
6. Dual 860W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1115SV-WTNRT WIO A+ 1U Barebone Single AMD EPYC 8004 Series Processor
| Product SKUs | ||
| Product SKUs | AS -1115SV-WTNRT | |
| Motherboard | ||
| Motherboard | Super H13SVW-NT | |
| Processor | ||
| CPU | Single processor(s) | |
| AMD EPYC™ 8004 Series Processor | ||
| Core Count | Up to 64C/128T | |
| Note | Supports up to 225W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 double-width or 2 single-width GPU(s) | |
| System Memory | ||
| Memory | Slot Count: 6 DIMM slots | |
| View Memory Options | ||
| Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom® BCM57416 | |
| View AOC Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| NVMe | View NVMe Options | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 10 GBASE-T LAN port(s) | ||
| USB | 4 port(s) (rear) | |
| 2 port(s) (front) | ||
| Video | 1 VGA port(s) | |
| Serial | 1 COM port(s) (Rear) | |
| TPM | 1 TPM Onboard/port 80 | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | 1U redundant 800/860W Titanium AC power supply | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-116BTS-R000WNP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 23.5" (597 mm) | |
| Package | 7.75" (H) x 23.5" (W) x 31.5" (D) | |
| Weight | Net Weight: 21 lbs (9.53 kg) | |
| Gross Weight: 33.5 lbs (15.2 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| Unit Identification (UID) button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| M.2 | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Default: Total 10 bay(s) 10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bay(s) | ||
| 10 front hot-swap 2.5" NVMe*/SAS*/SATA drive bay(s) | ||
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110) | |
| View M.2 Options | ||
| System Cooling | ||
| Fans | 6 Heavy duty counter-rotating 40x40x56mm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 54.5 x 40.25 x 322 mm | |
| +12V | Max: 66.67A / Min: 0A (100Vac-127Vac) | |
| Max: 71.67A / Min: 0A (200Vac-240Vac) | ||
| Max: 71.67A / Min: 0A (Vdc-240Vdc) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 800W: 100-127Vac / 50-60Hz | |
| 860W: 200-240Vac / 50-60Hz | ||
| 860W: 240Vdc / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SVW-NT | 1 | Super H13SVW-NT Motherboard | |
| Motherboard / Chassis | CSE-116BTS-R000WNP | 1 | 1U Chassis | |
| Backplane | BPN-NVME5-LB16A-S10 | 1 | 1U 10-port hybrid backplane for SAS3/SATA3/NVME5 storage | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-MCIO-1227EQS4 | 1 | MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS | |
| Cable | CBL-MCIO-1243S4Y | 1 | (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS | |
| Cable | CBL-0335L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Fan | FAN-0163L4 | 6 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | |
| Front Panel | MCP-280-00033-0N | 1 | Universal Thermal sensor kit with 80cm I2C cable | |
| Front Panel | FPB-FP116-DU3 | 1 | Front control board with two USB 3.0 for SC116/SC119X | |
| Power Supply | PWS-861A-1R | 2 | 1U redundant 800/860W Titanium AC power supply 54.5x40x322mm | |
| Power Supply | MCP-250-00009-0N | 1 | SC113 Redundant Power Distributor Cover | |
| Riser Card | RSC-W-66G5 | 1 | 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R | |
| Riser Card | RSC-WR-6G5H | 1 | 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0062P-1 | 1 | 1U Passive CPU Heat Sink for AMD Socket SP6 Processors | |
| *Power Distributor | PDB-PT116-SL8824 | 1 | Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths | |
| *Drive Tray(s) | MCP-220-00047-0B | 10 | Black gen 3rd hot-swap 2.5inch HDD tray | |
| *Rear Window | MCP-240-00202-0N | 1 | 1U WIO rear window to support top-load riser bracket for SC815B,SC116B | |
| *Rail Set | MCP-290-00016-0N | 1 | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N | |
| *Rail Set | MCP-290-00063-0N | 1set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH | |
| *Rail Set | MCP-290-00102-0N | 1 set | Outer rail, quick-release type, 25.6 | |
| *Rail Set | MCP-290-00108-0N | 1 set | Inner rail, front, short, quick-release type | |
| *Rail Set | MCP-290-00112-0N | 1 set | Inner rail, extension, long (quick) for 1U 17.2W chassis | |
| *Air Shroud | MCP-310-11606-0B | 1 | Air block for 1U WIO SC116B with X13SEW | |
| *Fan Holder | MCP-320-00027-0B | 24 | Plastic pin for 40x28, 40x56 fan | |
| *Fan Holder | MCP-320-00028-0B | 1 | Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116 | |
| *Fan Holder | MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
