- Supermicro AS-2015SV-WTNRT WIO A+ 2U Barebone Single AMD EPYC 8004 Series Processor

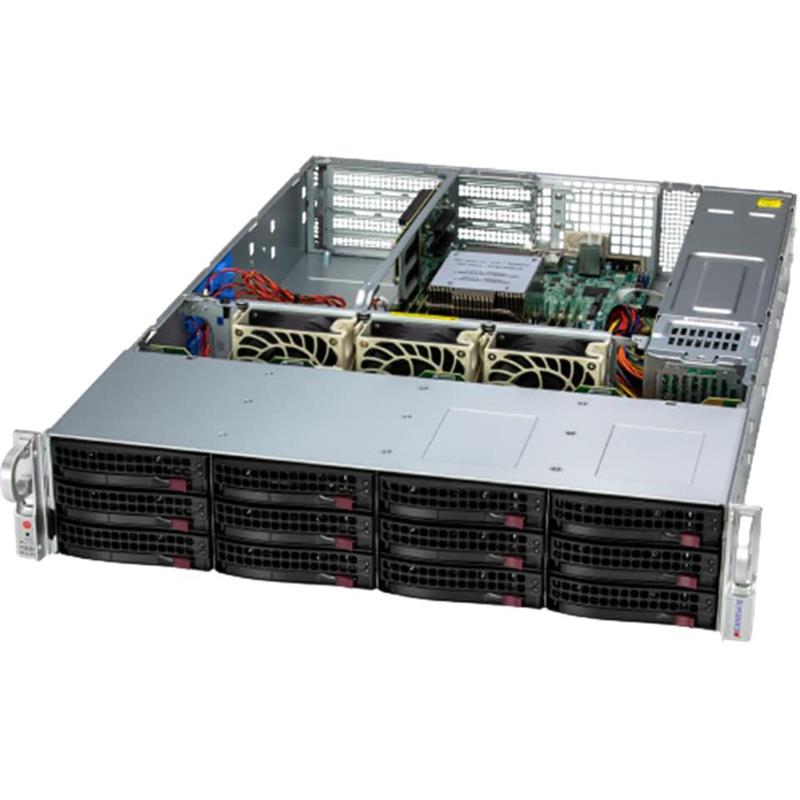

Supermicro AS-2015SV-WTNRT WIO A+ 2U Barebone Single AMD EPYC 8004 Series Processor
• Virtualization
• Data Center Optimized
• Firewall Applications
• Database/Storage
• Edge/Cloud Computing Services
Barebone 2U Rackmount SuperServer, Supports Single Socket, Supporting AMD EPYC 8004 Series Processor, System on Chip, Up to 576GB in 6 DIMM slots, RDIMM, On-Board: SATA (6Gbps), 12x Hot-swap 3.5in Drive Bays Support SATA (Default), Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 10 GbE LAN Ports, 800W Power Supply - (CSE-826BTS-R000WNBP4 + H13SVW-NT) - AS-2015SV-WTNRT
1. Single Socket AMD EPYC™ 8004 Series Processor
2. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
3. 2 PCIe 5.0 x16 FHFL; 2 PCIe 5.0 x 8 LP, Supports up to 1 double-width or 2 single-width GPU(s)
4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
5. 12 hot-swap 3.5"/2.5" SATA(default)/SAS drive bays or 6 SATA/NVMe hybrid + 6 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)
Extra Specifications for Supermicro AS-2015SV-WTNRT WIO A+ 2U Barebone Single AMD EPYC 8004 Series Processor
| Product SKUs | ||
| Product SKUs | AS -2015SV-WTNRT | |
| Motherboard | ||
| Motherboard | Super H13SVW-NT | |
| Processor | ||
| CPU | Single processor(s) | |
| AMD EPYC™ 8004 Series Processor | ||
| Core Count | Up to 64C/128T | |
| Note | Supports up to 225W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 double-width or 2 single-width GPU(s) | |
| System Memory | ||
| Memory | Slot Count: 6 DIMM slots | |
| View Memory Options | ||
| Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom® BCM57416 | |
| View AOC Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| NVMe | View NVMe Options | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 10 GBASE-T LAN port(s) | ||
| USB | 4 port(s) (rear) | |
| Video | 1 VGA port(s) | |
| Serial | 1 COM port(s) (Rear) | |
| TPM | 1 TPM Onboard/port 80 | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | 1U redundant 800W Titanium AC Power Supply | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826BTS-R000WNBP4 | |
| Dimensions and Weight | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.6" (650 mm) | |
| Package | 11.5" (H) x 26.5" (W) x 34" (D) | |
| Weight | Gross Weight: 58 lbs (26.3 kg) | |
| Net Weight: 34 lbs (15.4 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status | |
| System information | ||
| Device Activity | ||
| LAN 1 Activity | ||
| LAN 2 Activity | ||
| Power Failure LED | ||
| Buttons | System Reset | |
| Power On/Off | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| M.2 | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Default: Total 12 bay(s) 12 front hot-swap 3.5" SATA drive bay(s) | ||
| 12 front hot-swap 3.5" SATA drive bay(s) | ||
| Option A: Total 12 bay(s) 6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s) 6 front hot-swap 3.5"/2.5" SATA drive bay(s) | ||
| 6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s) | ||
| 6 front hot-swap 3.5"/2.5" SATA drive bay(s) | ||
| Option B: Total 12 bay(s) 12 front hot-swap 2.5" SAS* drive bay(s) | ||
| 12 front hot-swap 2.5" SAS* drive bay(s) | ||
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110) | |
| View M.2 Options | ||
| System Cooling | ||
| Fans | 3 Heavy duty PWM 80x80x38mm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 76 x 40 x 336 mm | |
| +12V | Max: 66A / Min: 0A (100Vac-240Vac) | |
| Max: 66A / Min: 0A (200Vdc-240Vdc) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 800W: 100-240Vac / 50-60Hz | |
| 800W: 200-240Vdc / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SVW-NT | 1 | Super H13SVW-NT Motherboard | |
| Motherboard / Chassis | CSE-826BTS-R000WNBP4 | 1 | 2U Chassis | |
| Backplane | BPN-NVME5-LA26A-S12 | 1 | 2U 12-Slot 3.5" SATA3/SAS3/NVMe5 Hybrid Backplane X13 Cl | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-MCIO-1227EQS4 | 1 | MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS | |
| Cable | CBL-MCIO-1243S4Y | 1 | (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-0182L | 1 | PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF | |
| Cable | CBL-CDAT-0921-85 | 1 | [NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| Power Supply | PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input | |
| Riser Card | RSC-W2-66G5 | 1 | 2U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,Ro | |
| Riser Card | RSC-W2R-88G5+ | 1 | 2U RHS WIO Riser card with two PCIe 5.0 X8 slots,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0063P-1 | 1 | 2U Passive CPU Heat Sink for AMD Socket SP6 Processors | |
| *Power Distributor | PDB-PT826-S8824 | 1 | PDB with shorter 24pin and 8pin cables for SC826B | |
| *Fan | FAN-0206L4 | 3 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | |
| *Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 | |
| *Drive Tray(s) | MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Drive Tray(s) | MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5" HDD cage,RoHS | |
| *Rear Window | MCP-240-82609-0N | 1 | SC826B, 216B WIO rear window | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Rail Set | MCP-410-00007-0N | 1 | Rail screw bag |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2.5" to 3.5" Toolless Converter Tray | MCP-220-00118-0B • | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | |||
| Cable Management Arm | MCP-290-00073-0N • | 1 | Supermicro Cable Management Arm | |||
| GPU Bracket Kit | MCP-120-82504-0N | $ 23.50 | 1 | GPU bracket kit for SC825B2 WIO chassis | ||
| GPU Bracket Kit | MCP-240-00199-0N | 1 | 2U WIO top load riser card bracket for SC825B2 | |||
| GPU Bracket Kit | MCP-240-82516-0N | 1 | SC825B2 WIO rear window for top load RSC bracket | |||
| GPU Bracket Kit | MCP-240-82517-0N | 1 | 2U bridge BKT support WIO Top-loading Riser BKT | |||
| GPU Power Cable | CBL-0424L • | 1 | GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm | |||
| GPU Power Cable | CBL-PWEX-1240 • | 1 | GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM | |||
| NVMe Cable (Drive Bay 0-1, 2-3, 4-5) | CBL-MCIO-1340M5-1 • | 3 | MCIO x8 (STR to STR), semi-flat, 40cm,32AWG. | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
