| Product SKUs |

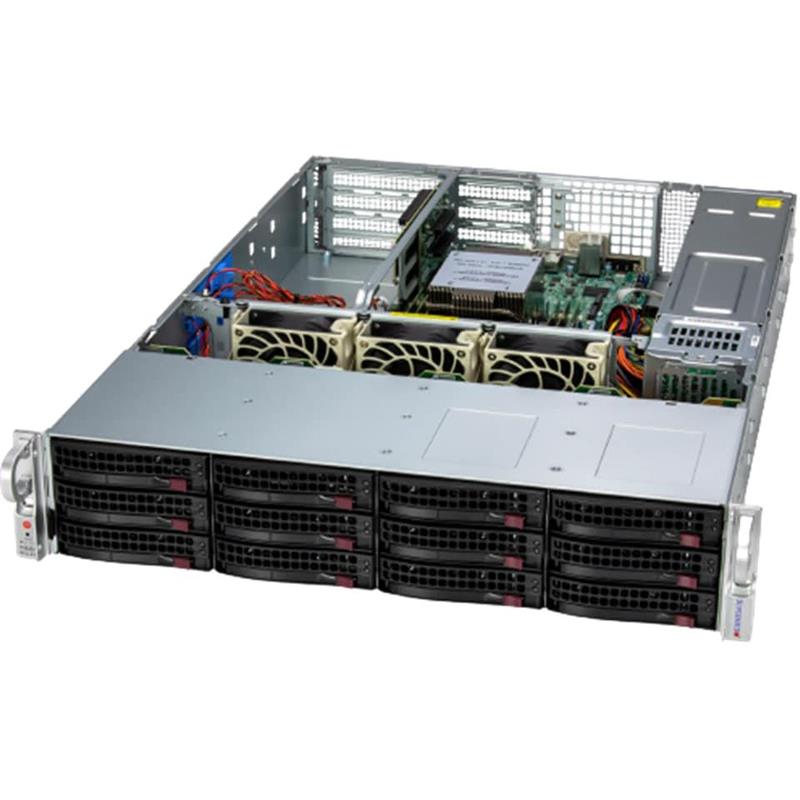

| Product SKUs | AS -2015SV-WTNRT |
| Motherboard |
| Motherboard | Super H13SVW-NT |
| Processor |
| CPU | Single processor(s) |
| AMD EPYC™ 8004 Series Processor |
| Core Count | Up to 64C/128T |
| Note | Supports up to 225W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 1 double-width or 2 single-width GPU(s) |
| System Memory |
| Memory | Slot Count: 6 DIMM slots |
| View Memory Options |
| Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom® BCM57416 |
| View AOC Options |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| NVMe | View NVMe Options |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| 2 RJ45 10 GBASE-T LAN port(s) |
| USB | 4 port(s) (rear) |
| Video | 1 VGA port(s) |
| Serial | 1 COM port(s) (Rear) |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | 1U redundant 800W Titanium AC Power Supply |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-826BTS-R000WNBP4 |
| Dimensions and Weight |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.6" (650 mm) |
| Package | 11.5" (H) x 26.5" (W) x 34" (D) |
| Weight | Gross Weight: 58 lbs (26.3 kg) |
| Net Weight: 34 lbs (15.4 kg) |
| Available Color | Black |
| Front Panel |
| LED | Power status |
| System information |
| Device Activity |
| LAN 1 Activity |
| LAN 2 Activity |
| Power Failure LED |
| Buttons | System Reset |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Default: Total 12 bay(s) 12 front hot-swap 3.5" SATA drive bay(s) |
| 12 front hot-swap 3.5" SATA drive bay(s) |
| Option A: Total 12 bay(s) 6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s) 6 front hot-swap 3.5"/2.5" SATA drive bay(s) |
| 6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s) |
| 6 front hot-swap 3.5"/2.5" SATA drive bay(s) |
| Option B: Total 12 bay(s) 12 front hot-swap 2.5" SAS* drive bay(s) |
| 12 front hot-swap 2.5" SAS* drive bay(s) |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110) |
| View M.2 Options |
| System Cooling |
| Fans | 3 Heavy duty PWM 80x80x38mm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| +12V | Max: 66A / Min: 0A (100Vac-240Vac) |
| Max: 66A / Min: 0A (200Vdc-240Vdc) |
| 5V SB | Max: 4A / Min: 0A |
| AC Input | 800W: 100-240Vac / 50-60Hz |
| 800W: 200-240Vdc / 50-60Hz |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
