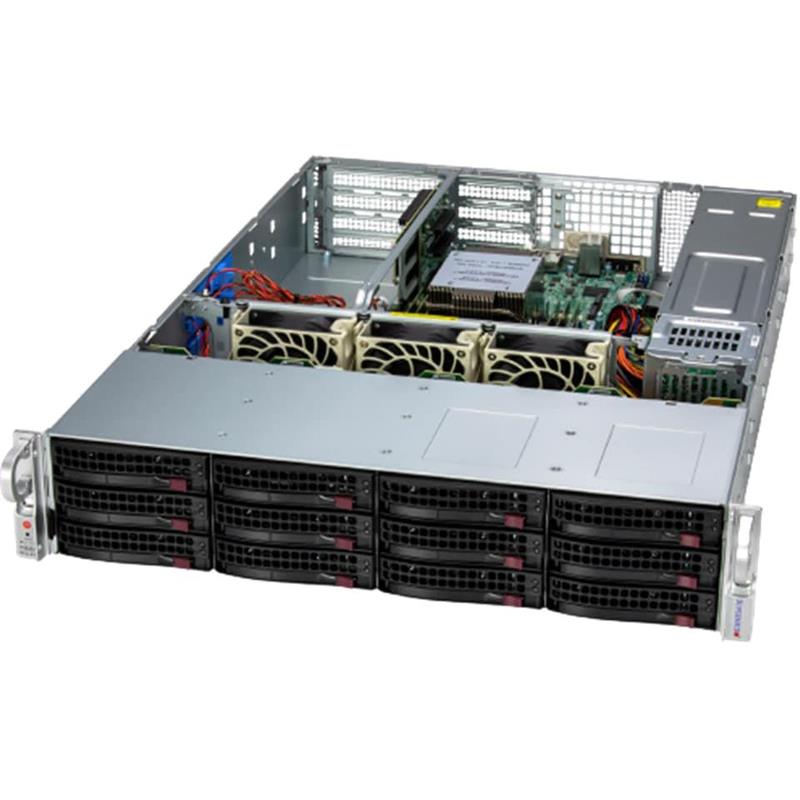

Supermicro AS-2015SV-WTNRT WIO A+ 2U Barebone Single AMD EPYC 8004 Series Processor

Supermicro AS-2015SV-WTNRT WIO A+ 2U Barebone Single AMD EPYC 8004 Series Processor


Barebone 2U Rackmount SuperServer, Supports Single Socket, Supporting AMD EPYC 8004 Series Processor, System on Chip, Up to 576GB in 6 DIMM slots, RDIMM, On-Board: SATA (6Gbps), 12x Hot-swap 3.5in Drive Bays Support SATA (Default), Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 10 GbE LAN Ports, 800W Power Supply - (CSE-826BTS-R000WNBP4 + H13SVW-NT) - AS-2015SV-WTNRT

$ 2,078.00$ 2,078.002078.0USD

$ 2,078.00

Option not available

    This combination does not exist.

    Add to Cart

    Extra Specifications for Supermicro AS-2015SV-WTNRT WIO A+ 2U Barebone Single AMD EPYC 8004 Series Processor

    Product SKUs
    Product SKUsAS -2015SV-WTNRT
    Motherboard
    MotherboardSuper H13SVW-NT
    Processor
    CPUSingle processor(s)
    AMD EPYC™ 8004 Series Processor
    Core CountUp to 64C/128T
    NoteSupports up to 225W TDP CPUs (Air Cooled)
    GPU
    Max GPU CountUp to 1 double-width or 2 single-width GPU(s)
    System Memory
    MemorySlot Count: 6 DIMM slots
    View Memory Options
    Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
    On-Board Devices
    ChipsetSystem on Chip
    Network Connectivity2 RJ45 10GBASE-T with Broadcom® BCM57416
    View AOC Options
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    NVMeView NVMe Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    2 RJ45 10 GBASE-T LAN port(s)
    USB4 port(s) (rear)
    Video1 VGA port(s)
    Serial1 COM port(s) (Rear)
    TPM1 TPM Onboard/port 80
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    BIOS FeaturesACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support
    Management
    SoftwareKVM with dedicated LAN
    Redfish API
    SuperDoctor® 5
    IPMI 2.0
    Supermicro Update Manager (SUM)
    Supermicro Server Manager (SSM)
    Super Diagnostics Offline
    Power configurations1U redundant 800W Titanium AC Power Supply
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor2U Rackmount
    ModelCSE-826BTS-R000WNBP4
    Dimensions and Weight
    Height3.5" (89 mm)
    Width17.2" (437 mm)
    Depth25.6" (650 mm)
    Package11.5" (H) x 26.5" (W) x 34" (D)
    WeightGross Weight: 58 lbs (26.3 kg)
    Net Weight: 34 lbs (15.4 kg)
    Available ColorBlack
    Front Panel
    LEDPower status
    System information
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power Failure LED
    ButtonsSystem Reset
    Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    M.2
    Drive Bays / Storage
    Drive Bays ConfigurationView Drive Options
    (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    Default: Total 12 bay(s) 12 front hot-swap 3.5" SATA drive bay(s)
    12 front hot-swap 3.5" SATA drive bay(s)
    Option A: Total 12 bay(s) 6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s) 6 front hot-swap 3.5"/2.5" SATA drive bay(s)
    6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s)
    6 front hot-swap 3.5"/2.5" SATA drive bay(s)
    Option B: Total 12 bay(s) 12 front hot-swap 2.5" SAS* drive bay(s)
    12 front hot-swap 2.5" SAS* drive bay(s)
    M.22 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110)
    View M.2 Options
    System Cooling
    Fans3 Heavy duty PWM 80x80x38mm Fan(s)
    Power Supply
    Dimension (WxHxL)76 x 40 x 336 mm
    +12VMax: 66A / Min: 0A (100Vac-240Vac)
    Max: 66A / Min: 0A (200Vdc-240Vdc)
    5V SBMax: 4A / Min: 0A
    AC Input800W: 100-240Vac / 50-60Hz
    800W: 200-240Vdc / 50-60Hz
    Output TypeBackplanes (gold finger)
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    Operating Relative Humidity: 8% to 80% (non-condensing)
    Non-operating Relative Humidity: 8% to 90% (non-condensing)
    NamePart NumberQty.Description
    Motherboard / ChassisMBD-H13SVW-NT1Super H13SVW-NT Motherboard
    Motherboard / ChassisCSE-826BTS-R000WNBP412U Chassis
    Backplane BPN-NVME5-LA26A-S1212U 12-Slot 3.5
    Cable CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    Cable CBL-MCIO-1227EQS41MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS
    Cable CBL-MCIO-1243S4Y1(MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS
    Cable CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable CBL-0182L1PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
    Cable CBL-CDAT-0921-851[NR] I2C,(1x4F to 1x4F)/P2.5,85CM,26AWG,RoHS
    Cable CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Cable CBL-PWEX-10693PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    Power Supply PWS-802A-1R21U 800W 100-240Vac/47-63Hz, and DC240 input
    Riser Card RSC-W2-66G512U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,Ro
    Riser Card RSC-W2R-88G5+12U RHS WIO Riser card with two PCIe 5.0 X8 slots,HF,RoHS
    Software SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention SNK-P0063P-112U Passive CPU Heat Sink for AMD Socket SP6 Processors
    *Power Distributor PDB-PT826-S88241PDB with shorter 24pin and 8pin cables for SC826B
    *Fan FAN-0206L4380x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
    *Front Panel FPB-TB826-T1Chassis transfer board for SC826
    *Drive Tray(s) MCP-220-00075-0B12Black gen 5.5 hot-swap 3.5" HDD tray
    *Drive Tray(s) MCP-290-82607-0N1826B/216B rear dummy cover for 2 X 2.5
    *Rear Window MCP-240-82609-0N1SC826B, 216B WIO rear window
    *Rail Set MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    *Rail Set MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    *Rail Set MCP-410-00007-0N1Rail screw bag
    Note:

    • Parts with * are inside the chassis

    • Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

    NamePart NumberPriceAdd to CartQty.Description
    2.5" to 3.5" Toolless Converter TrayMCP-220-00118-0B •0Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    GPU Bracket KitMCP-120-82504-0N$ 9.501GPU bracket kit for SC825B2 WIO chassis
    GPU Bracket KitMCP-240-00199-0N12U WIO top load riser card bracket for SC825B2
    GPU Bracket KitMCP-240-82516-0N1SC825B2 WIO rear window for top load RSC bracket
    GPU Bracket KitMCP-240-82517-0N12U bridge BKT support WIO Top-loading Riser BKT
    GPU Power CableCBL-0424L •1GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm
    GPU Power CableCBL-PWEX-12401GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM
    NVMe Cable (Drive Bay 0-1, 2-3, 4-5)CBL-MCIO-1340M5-1 •3MCIO x8 (STR to STR), semi-flat, 40cm,32AWG.
    SoftwareSFT-DCMS-Single1DataCenter Management Package (per node license)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
