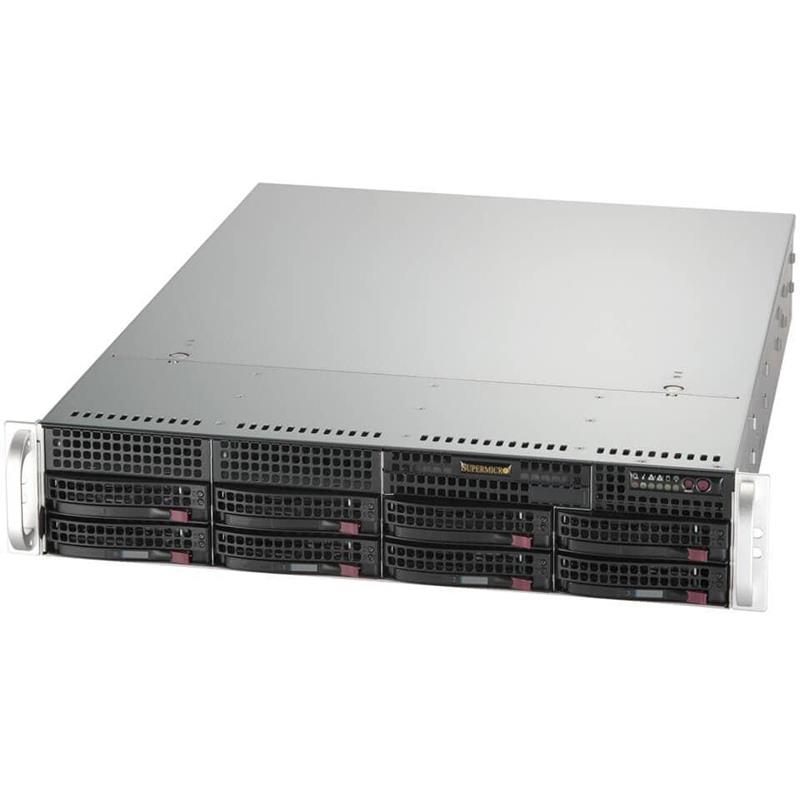

- Supermicro AS-2015A-TR Mainstream 2U Barebone Single AMD Ryzen 7000 Series Processor
Supermicro AS-2015A-TR Mainstream 2U Barebone Single AMD Ryzen 7000 Series Processor
• Designed for financial companies
• AMD Xilinx Solarflare X2 and X3 Ethernet adapters validated
Barebone 2U Rackmount SuperServer, Supports Single Socket LGA1718, Supporting AMD Ryzen 7000 Series up to 170W TDP Processor, AMD B650, Up to 128GB in 4 DIMM slots, UDIMM, On-Board: 4 SATA (6Gbps) Port, 4x 3.5in SATA Drive Bays (or up to 8x 3.5in/2.5in SATA/SAS Drive Bays Via Optional RAID AOC), M.2: M-Key, 2280/22110, Network Connectivity: 2x 1GbE LAN (Intel I210-AT) IPMI 2.0 + KVM with Dedicated LAN (1GbE), 800W Power Supply - (CSE-825TQC-R802LPB + H13SAE-MF) - AS-2015A-TR
1. AMD EPYC™ 4004 Series LGA1718 up to 170W TDP Processors
2. 4 DDR5-5200 UDIMM ECC/Non-ECC slots supporting up to 192GB memory
3. 2 PCIe 5.0 x16 HHHL slots (16/NA or 8/8)
4. IPMI 2.0 + KVM with Dedicated LAN (1GbE) Dual 1GbE LAN (Intel® I210-AT)
5. 800W High-Efficiency Power Supply Titanium Level Certified
Extra Specifications for Supermicro AS-2015A-TR Mainstream 2U Barebone Single AMD Ryzen 7000 Series Processor
| Product SKUs | ||
| Product SKUs | AS -2015A-TR | |
| Motherboard | ||
| Motherboard | Super H13SAE-MF | |
| Processor | ||
| CPU | Single processor(s) | |
| Core Count | Up to 16C/32T | |
| Note | Supports 60W - 170W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 2 double-width GPU(s) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 4 DIMM slots | ||
| Max Memory (2DPC): Up to 128GB 5200MT/s ECC DDR5 UDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) | |
| Chipset | AMD B650 | |
| Network Connectivity | View AOC Options | |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) | ||
| 2 RJ45 1GbE with Intel® I210-AT | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||

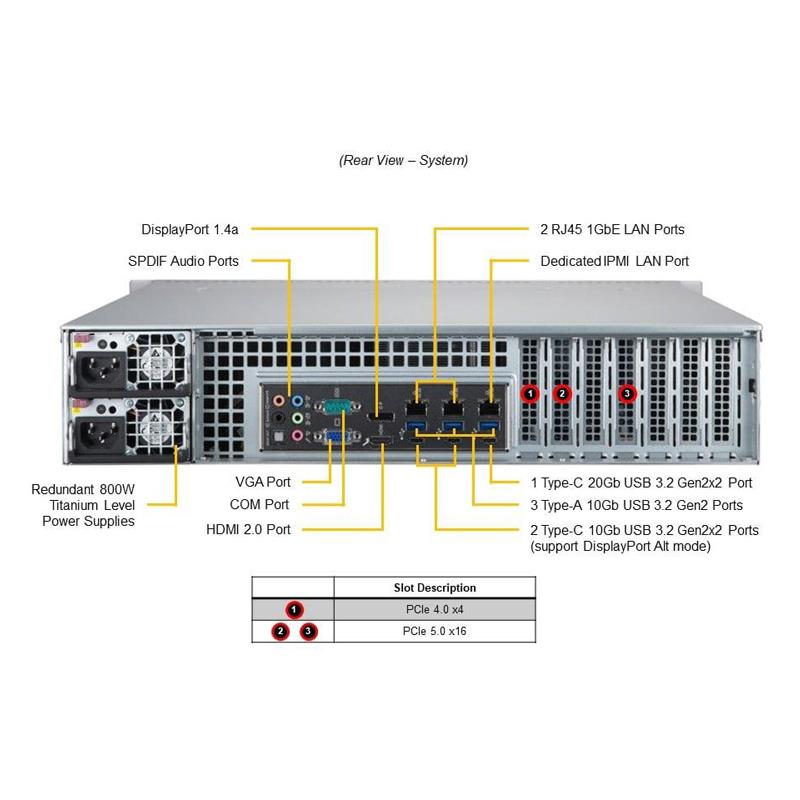

| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| USB | 3 Type-A port(s) (Rear) | |
| 2 Type-C port(s) (Rear) | ||
| 1 Type-C port(s) (Rear) | ||
| Video | 1 VGA port(s) | |
| 1 HDMI 2.0 port(s) | ||
| 1 DisplayPort 1.4 port(s) | ||
| Audio | Rear Audio | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI 6.0 | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Supply Chain Security: Remote Attestation | |
| Runtime BMC Protections | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM | |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor | |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI | |
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-825TQC-R802LPB | |
| Dimensions and Weight | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) | |
| Weight | Gross Weight: 52 lbs (23.59 kg) | |
| Net Weight: 37 lbs (16.78 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| System Information LED | ||
| Power Fail LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 8 bay(s) 8 front hot-swap 3.5" SAS/SATA drive bay(s) | ||
| 8 front hot-swap 3.5" SAS/SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 3x 80mm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 76 x 40 x 336 mm | |
| +12V | Max: 66A / Min: 0A (100Vac-240Vac) | |
| Max: 66A / Min: 0A (200Vdc-240Vdc) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 800W: 100-240Vac / 50-60Hz | |
| 800W: 200-240Vdc / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SAE-MF | 1 | Super H13SAE-MF Motherboard | |
| Motherboard / Chassis | CSE-825TQC-R802LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-825TQ | 1 | 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable | CBL-0186L | 1 | 4x 7pin SATA (STR to RA), 56/45.5/35/23cm,PBF | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1078 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
| Parts | MCP-260-00185-0B | 1 | STD I/O Shield for H13SAE-MF with EMI Gasket & Black Mylar | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0094AP4 | 1 | 2U Active CPU Heat Sink for AMD Socket AM5 Systems | |
| *Power Supply | PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input | |
| *Power Distributor | PDB-PT825-8824 | 1 | SC825 24PIN REDUNDANT POWER DISTRIBUTOR | |
| *Fan | FAN-0181L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis | |
| *Front Panel | FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825 | |
| *Drive Tray(s) | MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | |
| *Drive Tray(s) | MCP-220-00075-0B | 8 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Drive Tray(s) | MCP-220-82502-0B | 2 | Black fixed 3.5\" HDD tray or FDD dummy tray | |
| *Rear Window | MCP-240-82506-0N | 1 | LP Rear Window for SC825,825M,826,213,216 | |
| *Peripheral Drive | MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2.5" Drive Tray | MCP-220-00043-0N • | 8 | Black hot-swap gen 4 3.5 to 2.5 HDD tray | |||
| TPM | AOM-TPM-9670V | $ 56.50 | 1 | SPI TPM 2.0 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
