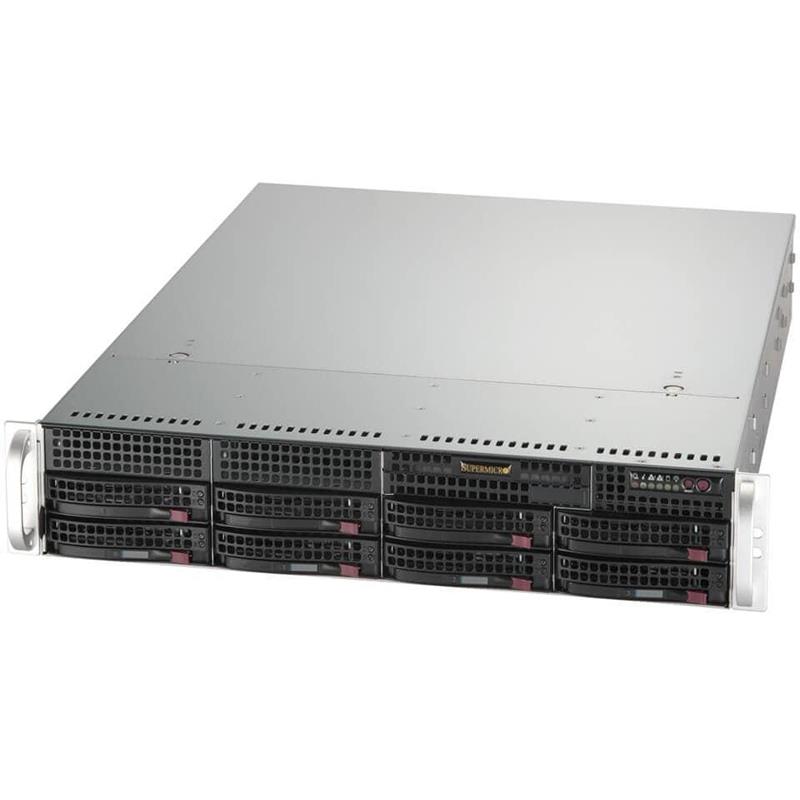

- Supermicro AS-2015A-TR Mainstream 2U Barebone Single AMD Ryzen 7000 Series Processor
Supermicro AS-2015A-TR Mainstream 2U Barebone Single AMD Ryzen 7000 Series Processor
• Designed for financial companies
• AMD Xilinx Solarflare X2 and X3 Ethernet adapters validated
Barebone 2U Rackmount SuperServer, Supports Single Socket LGA1718, Supporting AMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series up to 170W TDP Processor, AMD B650, Up to 192GB in 4 DIMM slots, UDIMM, On-Board: 4 SATA (6Gbps) Port, 4x 3.5in SATA Drive Bays (or up to 8x 3.5in/2.5in SATA/SAS Drive Bays Via Optional RAID AOC), M.2: M-Key, 2280/22110, Network Connectivity: 2x 1GbE LAN (Intel I210-AT) IPMI 2.0 + KVM with Dedicated LAN (1GbE), 2x 800W Power Supply - (CSE-825TQC-R802LPB + H13SAE-MF) - AS-2015A-TR
1. AMD EPYC™ 4004 / 4005 or Ryzen™ 7000 / 9000 series LGA1718 up to 170W TDP Processors
2. 4 DDR5-5200 UDIMM ECC/Non-ECC slots supporting up to 192GB memory
3. 2 PCIe 5.0 x16 HHHL slots (16/NA or 8/8)
4. IPMI 2.0 + KVM with Dedicated LAN (1GbE) Dual 1GbE LAN (Intel® I210-AT)
5. 800W High-Efficiency Power Supply Titanium Level Certified
Extra Specifications for Supermicro AS-2015A-TR Mainstream 2U Barebone Single AMD Ryzen 7000 Series Processor
| Product SKUs | ||
| Product SKUs | AS -2015A-TR | |
| Motherboard | ||
| Motherboard | Super H13SAE-MF | |
| Processor | ||
| CPU | Single processor(s) | |
| Core Count | Up to 16C/32T | |
| Note | Supports 60W - 170W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 2 double-width GPU(s) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 4 DIMM slots | ||
| Max Memory (2DPC): Up to 128GB 5200MT/s ECC DDR5 UDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) | |
| Chipset | AMD B650 | |
| Network Connectivity | View AOC Options | |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) | ||
| 2 RJ45 1GbE with Intel® I210-AT | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| USB | 3 Type-A port(s) (Rear) | |
| 2 Type-C port(s) (Rear) | ||
| 1 Type-C port(s) (Rear) | ||
| Video | 1 VGA port(s) | |
| 1 HDMI 2.0 port(s) | ||
| 1 DisplayPort 1.4 port(s) | ||
| Audio | Rear Audio | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI 6.0 | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Supply Chain Security: Remote Attestation | |
| Runtime BMC Protections | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM | |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor | |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI | |
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-825TQC-R802LPB | |
| Dimensions and Weight | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) | |
| Weight | Gross Weight: 52 lbs (23.59 kg) | |
| Net Weight: 37 lbs (16.78 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| System Information LED | ||
| Power Fail LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 8 bay(s) 8 front hot-swap 3.5" SAS/SATA drive bay(s) | ||
| 8 front hot-swap 3.5" SAS/SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 3x 80mm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 76 x 40 x 336 mm | |
| +12V | Max: 66A / Min: 0A (100Vac-240Vac) | |
| Max: 66A / Min: 0A (200Vdc-240Vdc) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 800W: 100-240Vac / 50-60Hz | |
| 800W: 200-240Vdc / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SAE-MF | 1 | Super H13SAE-MF Motherboard | |
| Motherboard / Chassis | CSE-825TQC-R802LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-825TQ | 1 | 2U 8-Slot 12G Backplane for 8x3.5" SAS/SATA HDD/SSD | |
| Cable | CBL-0186L | 1 | 4x 7pin SATA (STR to RA), 56/45.5/35/23cm,PBF | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1078 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS | |
| Parts | MCP-260-00185-0B | 1 | STD I/O Shield for H13SAE-MF with EMI Gasket & Black Mylar | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0094AP4 | 1 | 2U Active CPU Heat Sink for AMD Socket AM5 Systems | |
| *Power Supply | PWS-802A-1R | 2 | 1U 800W 100-240Vac/47-63Hz, and DC240 input | |
| *Power Distributor | PDB-PT825-8824 | 1 | SC825 24PIN REDUNDANT POWER DISTRIBUTOR | |
| *Fan | FAN-0181L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis | |
| *Front Panel | FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825 | |
| *Drive Tray(s) | MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | |
| *Drive Tray(s) | MCP-220-00075-0B | 8 | Black gen 5.5 hot-swap 3.5" HDD tray | |
| *Drive Tray(s) | MCP-220-82502-0B | 2 | Black fixed 3.5\" HDD tray or FDD dummy tray | |
| *Rear Window | MCP-240-82506-0N | 1 | LP Rear Window for SC825,825M,826,213,216 | |
| *Peripheral Drive | MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
