| System Memory |
| Memory Capacity | 4 DIMM slots |
| Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MHz |
| Memory Type | 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC) |
| DIMM Sizes | 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C266 |
| IPMI | ASPEED AST2600 BMC |
| Graphics | 1 Aspeed AST2600 BMC port(s) |
| Network Controllers | Dual LAN with 1GbE with Intel® I210 |
| SATA | Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA D-Sub Connector port(s) |
| TPM | 1 TPM Header |
| SATA | 8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| System BIOS |
| BIOS Type | AMI 32MB AMI UEFI |
| BIOS Features | Plug and Play (PnP) |
| ACPI 6.4 |
| UEFI 2.8 |
| PCI FW 3.3 |
| SMBIOS 3.5 |
| Management |
| Software | Redfish API , Supermicro Server Manager (SSM) , Supermicro Update Manager (SUM) , SuperDoctor® 5 , Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| PECI |
| Other Features | WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management |
| FAN | Fan speed control |
| 7x 4-pin fan headers (up to 7 fans) |
| Overheat LED indication |
| 7 fans with tachometer status monitoring |
| Product SKUs |

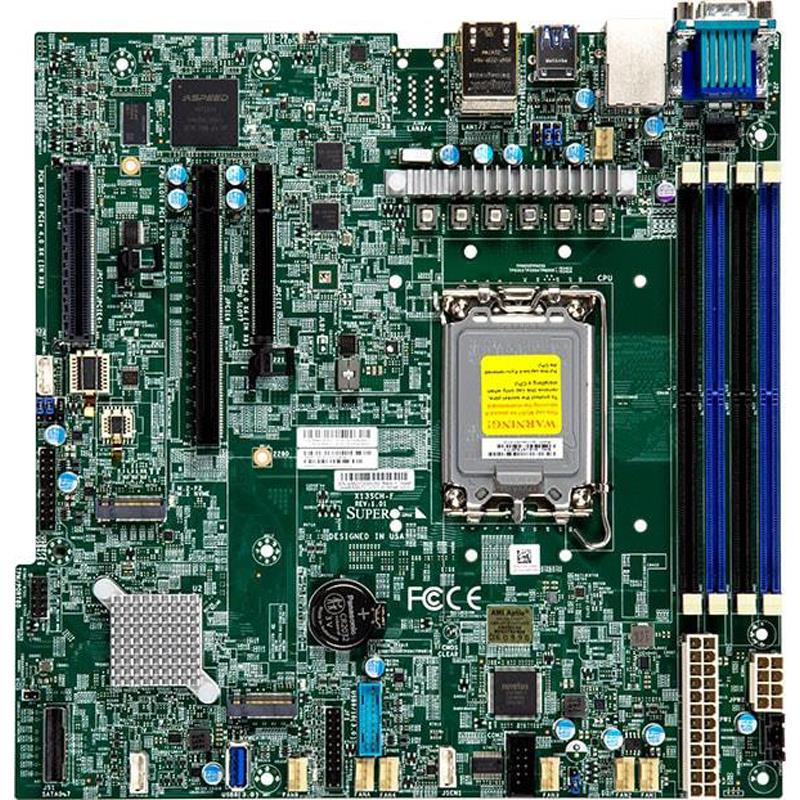

| Product SKUs | MBD-X13SCH-F |
| Physical Stats |
| Form Factor | microATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | Intel® Xeon® E-2400/Pentium®* Processor |
| Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP |
| *Pentium® G7400 and G7400T |
| Core | Up to 8 cores |
| Expansion Slots |
| PCIe | 1 PCIe 5.0 x16, |
| 2 PCIe 4.0 x4 (in x8 slot) |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 4.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
