| System Memory |
| Memory Capacity | 6 DIMM slots |
| Up to 576GB ECC Registered RDIMM, DDR5-4800MHz |
| Memory Type | 4800 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 4800MHz (1DPC) |
| DIMM Sizes | 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T |
| Single LAN with Realtek RTL8211F PHY |
| Input / Output |
| Video Output | 1 VGA port(s) |
| TPM | 1 TPM Header |
| Others | 2 MCIO (PCIe 5.0 x8/SATA3) Port(s) |
| 3 MCIO (PCIe 5.0 x8) Port(s) |
| USB | 6 USB 3.0 port(s) (4 USB; 2 via header) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
| Management |
| Software | Redfish API , Supermicro Server Manager (SSM) , Supermicro Update Manager (SUM) , SuperDoctor® 5 , Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| LED | UID/Remote UID |
| BMC/IPMI Heartbeat LED |
| Other Features | RoT |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Product SKUs |

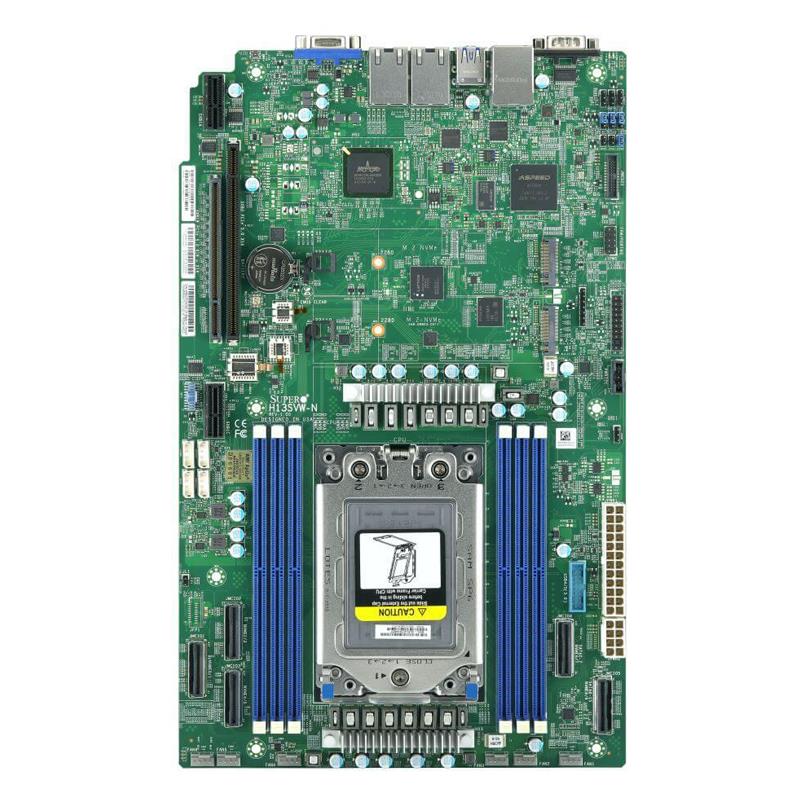

| Product SKUs | MBD-H13SVW-N |
| Physical Stats |
| Form Factor | Proprietary WIO |
| Dimension | 8.15" x 13.05" (20.7cm x 33.15cm) |
| Processor |
| CPU | AMD EPYC™ 8004 series Processors |
| Single Socket SP6 supported, CPU TDP supports Up to 225W TDP |
| Core | Up to 64 cores, 128 threads |
| Expansion Slots |
| PCIe | 1 PCIe 5.0 x16 Right Riser Slot, |
| 1 PCIe 5.0 x32 Left Riser Slot |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 3.0 x4 |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (°F - °F) |
| Non-Operating Temperature Range | -40°C - 70°C (°F - °F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
