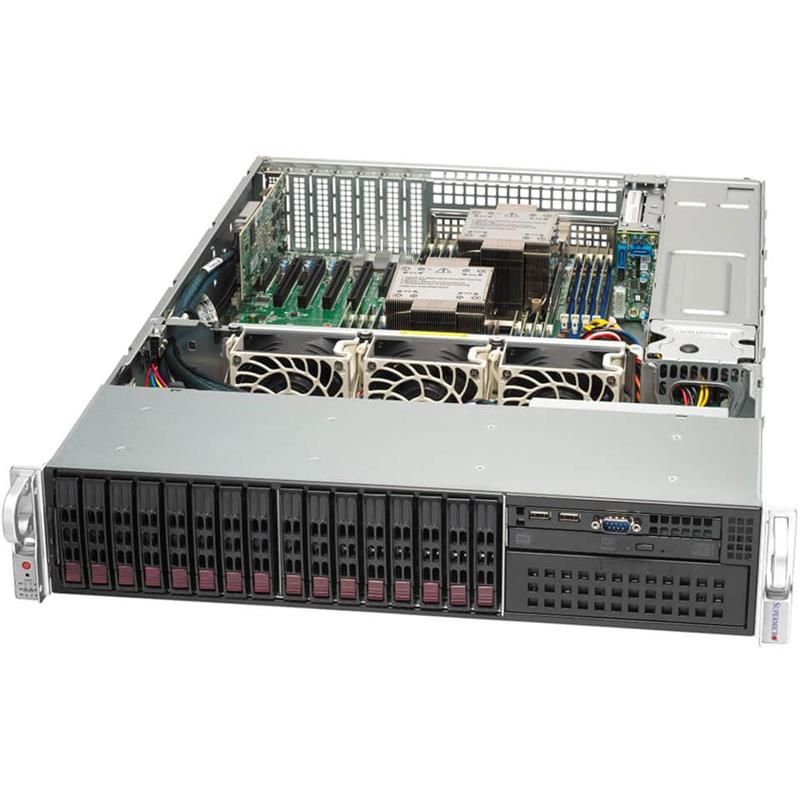

Supermicro SYS-221P-C9R Mainstream 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
• Virtualization
• Enterprise Server
• Application and data serving
• Compute Intensive Applications
Barebone 2U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Supports up to 300W TDP CPUs (Air Cooled). Intel C741, Up to 4TB in 16 DIMM slots, RDIMM, On-Board: SATA3, 16x 2.5in Hot-swap Drive Bays, 2x M.2 NVMe, Network Connectivity: 1 RJ45 Dedicated BMC LAN Port, 1200W Power Supply - (CSE-213BTS-R1K23LPBP3-1 + X13DEI) - SYS-221P-C9R
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
3. 4 PCIe 5.0 x16 Low Profile (LP), 1 PCIe 5.0 x8 Low Profile (LP)
4. 16 hotswap 2.5" drive bays with 8 SAS RAID (0, 1, 5, 6, 10, 50, 60) and 8 SATA drive support
5. 1200W Redundant Titanium level Power Supplies
Extra Specifications for Supermicro SYS-221P-C9R Mainstream 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SYS-221P-C9R | |
| Motherboard | ||
| Motherboard | Super X13DEI | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 4th Gen Intel® Xeon® Scalable processors | ||
| Note | CPUs with high TDP (Air Cooled) only supported under specific conditions. Contact Technical Support for details | |
| Supports up to 300W TDP CPUs (Air Cooled) | ||
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Connectivity | 2x 1GbE port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 4 USB 3.0 port(s) (4 rear) | |
| 2 USB 2.0 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 front; 1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | NMI | |
| KVM with dedicated LAN | ||
| Redfish API | ||
| Intel® Node Manager | ||
| SUM | ||
| SSM | ||
| SPM | ||
| IPMI2.0 | ||
| Supermicro Out of Band (OOB) License (included in the unit) | ||
| Power Configurations | ACPI/APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-213BTS-R1K23LPBP3-1 | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 24.8" (630mm) | |
| Package | 11" (H) x 29" (W) x 38.7" (D) | |
| Weight | Net Weight: 38 lbs (17.4 kg) | |
| Gross Weight: 63 lbs (28.8 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 4 PCIe 5.0 x16 LP slot(s) | |
| 1 PCIe 5.0 x8 LP slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 16x 2.5" hot-swap drive bays (8x SAS drive bays in the slot 0~7 via Broadcom® 3908 HW RAID and 8x SATA3 drive bays in the slot 8~15 via Intel® C741. Configurable option for 4x hot-swap NVMe in drive bay slot 0~3. NVMe or Additional SAS support requires additional parts. Please see the Optional Parts list) | |
| M.2 | 2 M.2 NVMe | |
| Peripheral Bays | 1x (slim or 5.25") DVD drive bays (optional) | |
| System Cooling | ||
| Fans | 3x 8cm heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| AC Input | 1000W: 100-127Vac / 15A-12A / 50-60Hz | |
| 1200W: 200-240Vac / 8.5A-7A / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13DEI | 1 | Super X13DEI Motherboard | |
| Motherboard / Chassis | CSE-213BTS-R1K23LPBP3-1 | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-S3908L-H8IR-16DD-P | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDDw/ exp,RoHS | |
| Backplane | BPN-SAS4-213A-N8 | 1 | 2U 16-slot SFF 2.5" SAS4 direct-attached backplane, 1st | |
| Cable | CBL-PWEX-1109-10 | 2 | MicroFit,2x4,PH3.0,F to 2x BIG,1x4,PH5.08,M,10CM,10A/pin | |
| Cable | CBL-SAST-1261-100 | 2 | Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O | |
| Cable | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| Cable | CBL-0217L | 1 | 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF | |
| Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Cable | CBL-PWEX-1069 | 3 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| Drive Tray(s) | MCP-220-00007-01 | 1 | Black USB/COM port tray for SC825, 836 | |
| Drive Tray(s) | MCP-220-00009-01 | 1 | Black 5.25"; drive tray w/o rail (square pattern) | |
| Drive Tray(s) | MCP-220-00023-01 | 1 | Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836 | |
| Drive Tray(s) | MCP-220-00047-0B | 16 | Black gen 3rd hot-swap 2.5inch HDD tray | |
| Parts | MCP-260-00042-3N | 1 | STD I/O shield for X13 server MB with venting holes | |
| Manual | MNL-2566-QRG | 1 | 221P-C9R(T) Quick Reference Guide | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0088P | 2 | 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems | |
| *Power Supply | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH | |
| *Power Distributor | PDB-PT829-S8824 | 1 | PDB with 23pairs input connectors for SC829B216B | |
| *Fan | FAN-0206L4 | 3 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers | |
| *Front Panel | FPB-FP826-D | 1 | Front control board Dual color LED(FP826-D)forSC826,213,216, | |
| *Front Panel | FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 | |
| *Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF | |
| *Peripheral Drive | MCP-290-00007-01 | 1 | Black DVD dummy cover for SC825, 836 | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
