- Supermicro SYS-221P-C9RT Mainstream 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

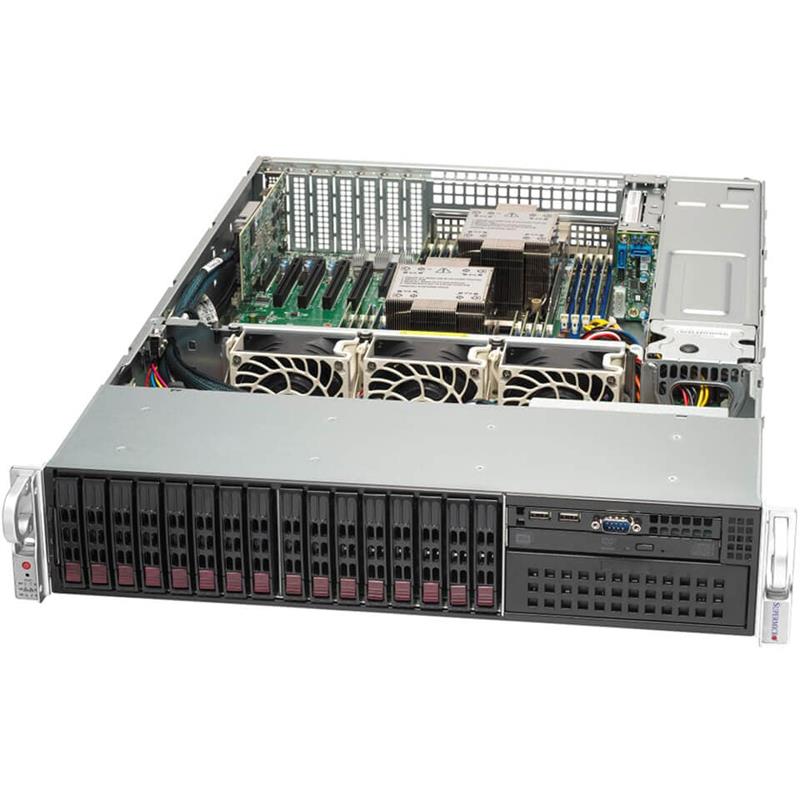

Supermicro SYS-221P-C9RT Mainstream 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
• Virtualization
• Enterprise Server
• Application and data serving
• Compute Intensive Applications
Barebone 2U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 4th and 5th Generation. Up to 300W TDP CPUs (Air Cooled). Intel C741, Up to 4TB in 16 DIMM slots, RDIMM, On-Board: SAS Via Broadcom 3908 HW RAID, SATA3 Via Intel C741, 16x 2.5in Hot-swap Drive Bays, 2x M.2 NVMe, Network Connectivity: 1 RJ45 Dedicated BMC LAN Port, 1200W Power Supply - (CSE-213BTS-R1K23LPBP3-1 + X13DEI-T) - SYS-221P-C9RT
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
3. 4 PCIe 5.0 x16 Low Profile (LP), 1 PCIe 5.0 x8 Low Profile (LP)
4. 16 hotswap 2.5" drive bays with 8 SAS RAID (0, 1, 5, 6, 10, 50, 60) and 8 SATA drive support
5. 1200W Redundant Titanium level Power Supplies
Extra Specifications for Supermicro SYS-221P-C9RT Mainstream 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SYS-221P-C9RT | |
| Motherboard | ||
| Motherboard | Super X13DEI-T | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Supports up to 300W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Connectivity | 2x 10GbE port(s) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated BMC LAN port | |
| USB | 4 USB 3.0 port(s) (4 rear) | |
| 2 USB 2.0 port(s) (2 front) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 front; 1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| TPM | ||
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power Configurations | ACPI/APM Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-213BTS-R1K23LPBP3-1 | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 24.8" (630mm) | |
| Package | 11" (H) x 29" (W) x 38.7" (D) | |
| Weight | Net Weight: 38 lbs (17.4 kg) | |
| Gross Weight: 63 lbs (28.8 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | System Reset | |
| Power On/Off | ||
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 4 PCIe 5.0 x16 LP slot(s) | |
| 1 PCIe 5.0 x8 LP slot(s) | ||
| Drive Bays / Storage | ||
| Hot-swap | 16x 2.5" hot-swap drive bays (8x SAS drive bays in the slot 0~7 via Broadcom® 3908 HW RAID and 8x SATA3 drive bays in the slot 8~15 via Intel® C741. Configurable option for 4x hot-swap NVMe in drive bay slot 0~3. NVMe or Additional SAS support requires additional parts. Please see the Optional Parts list) | |
| M.2 | 2 M.2 NVMe | |
| Peripheral Bays | 1x (slim or 5.25") DVD drive bays (optional) | |
| System Cooling | ||
| Fans | 3x 8cm heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13DEI-T | 1 | Super X13DEI-T Motherboard | |
| Motherboard / Chassis | CSE-213BTS-R1K23LPBP3-1 | 1 | 2U Chassis | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
