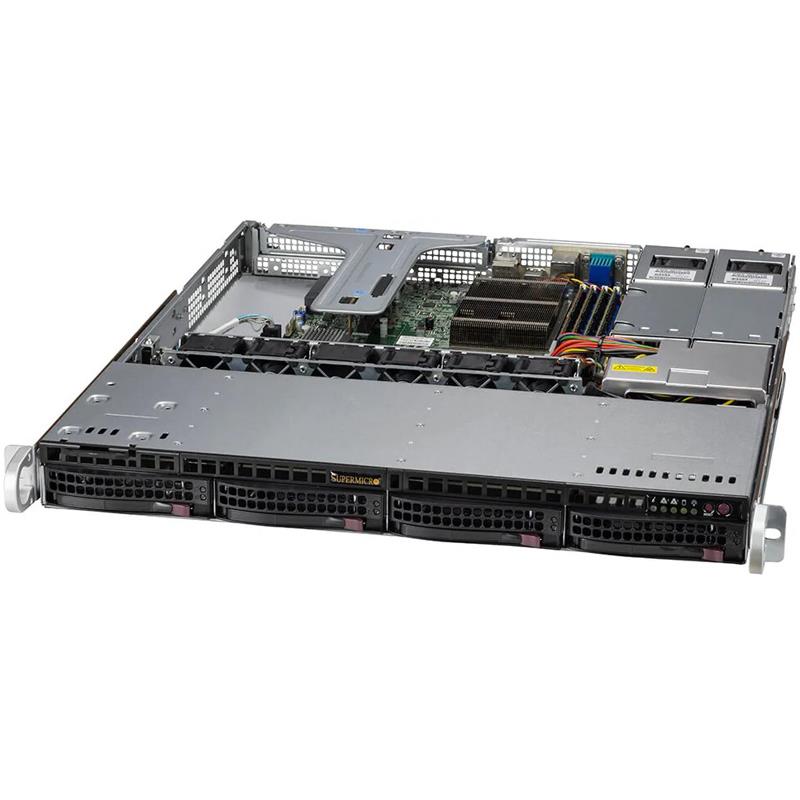

Supermicro SYS-510T-MR-EU UP 1U Barebone Single Intel Xeon E-2300 Series Processors
UP mainstream with 4 hot-swap 3.5" drive bays
Equipped with Redundant Platinum 400W Power Supply
Supports Intel Xeon E-2300 series, Intel Pentium processors
4 DIMMs, Up to 128GB of DDR4 memory with speeds of up to 3200MHz
Barebone 1U Rackmount SuperServer, Supports Single Socket H5 (LGA-1200), Supporting Intel Xeon E-2300 Series Processors and 10th Generation Pentium Processors, Intel C256, Up to 128GB in 4 DIMM slots, UDIMM, On-Board: SATA3 (6Gbps), RAID 0/1/5/10 Support (Port 0-5), 4x 3.5in SATA Drive Bays, M.2: M-key, 2280, 22110, Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 1GbE LAN Ports, 400W Power Supply - (CSE-813MF2TS-R407RCBP + X12STH-SYS) - SYS-510T-MR-EU
Key Applications
Virtualization
Small Business
Encoding Decoding
Key Features
Single Socket H5 (LGA-1200) supports Intel Xeon E-2300 series, Intel Pentium processors
4 DIMMs, Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHHL);
1 Dedicated Internal HBA slot
Intel Ethernet Controller i210 2x 1GbE RJ45
Redundant Platinum 400W Power Supply
Extra Specifications for Supermicro SYS-510T-MR-EU UP 1U Barebone Single Intel Xeon E-2300 Series Processors
| Main Specifications | ||
| Device Type | Mainstream Server | |
| Built-in Devices | Super X12STH-SYS | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 19.98" (507 mm) | |
| Weight | Gross Weight: 30.4 lbs (13.8 kg) - Net Weight: 17.6 lbs (8 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Compatible Processors | Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors | |
| Compatible Socket | Single Socket H5 (LGA-1200) | |
| Cache/Core | Up to 8C/16T, Up to 16MB Cache | |
| Note | Supports up to 95W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 single-width GPU(s) | |
| Supported GPUs | NVIDIA PCIe: T400, T1000 | |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
| System Memory | ||
| Memory Capacity | Slot Count: 4 DIMM slots, Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| SATA RAID | SATA (6Gbps), RAID 0/1/5/10 support | |
| Chipset | Intel C256 | |
| Network Connectivity | 2 RJ45 1GbE with Intel I210 | |
| Input / Output | ||
| LAN | 2 RJ45 1 GbE LAN port(s), 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1) | |
| USB(s) | 4 USB 2.0 port(s) (header), 2 USB 3.2 Gen1 Type-A port(s) (rear), 2 USB 2.0 Type-A port(s) (rear), 2 USB 3.2 Gen1 port(s) (Header), 1 USB 3.2 Gen1 Type-A port(s) (Header) | |
| Video Output | 1 VGA port | |
| Serial Ports | 1 COM port(s) (Rear), 1 COM port(s) (Header) | |
| SuperDOM | 2 SuperDOM (Disk on Module) port(s) with built-in power | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New | |
| Power Configurations | ACPI/APM Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Miscellaneous | ||
| Feature(s) | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 6 + 2 + 1 Phase-switching voltage regulator | |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| LEDs | Device Activity, LAN 1 Activity, LAN 2 Activity, Power status, System information | |
| Buttons | Power On/Off, System Reset | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 1 PCIe 4.0 x8 FHHL slot, 1 PCIe 4.0 x8 LP slot | |
| Option A: 1 PCIe 4.0 x16 FHHL slot | ||
| Expansion Bays Total (Free) | 4 front hot-swap 3.5" SATA drive bay(s) | |
| M.2 | 1 M.2 NVMe slot(s) (M-key 2280/22110) | |
| Peripheral Bay (Free) | 2 2.5" bay(s) | |
| Power Supply | ||
| Power Supply | 2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies | |
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Motherboard / Chassis | 1x MBD-X12STH-SYS / CSE-813MF2TS-R407RCBP | |
| Backplanes | 1x BPN-SAS3-815TQ | |
| Cable(s) | 1x CBL-0296L, 1x CBL-SAST-0811, 1x CBL-0071L, 2x CBL-PWCD-0160-IS | |
| Air Shroud | 1x MCP-310-81307-0B | |
| Riser Cards | 1x Proprietary Riser Card | |
| Heatsink / Retention | 1x Proprietary Heatsink | |
| Power Supply Number | 2x PWS-407P-1R | |
| Power Distributor(s) | 1x PDB-PT813M-S2424 | |
| Fan(s) | 4x FAN-0154L4 | |
| Front Panel | 1x FPB-FP813-D | |
| Drive Tray(s) | 4x MCP-220-00075-0B | |
| Rear Window | 1x MCP-240-00195-0N | |
| Rail Set | 1set MCP-290-00102-0N, 1set MCP-290-00108-0N, 1set MCP-290-00110-0N | |
| Fan Holders | 1x MCP-320-00060-0N | |
| Parts | 2x MCP-340-00001-01 | |
| Peripheral Drives | ||
| Peripheral Drives | 1x CSE-PT93L-B | |
