- Supermicro SYS-510T-WTR-EU UP 1U Barebone Single Intel Xeon E-2300 Series Processors

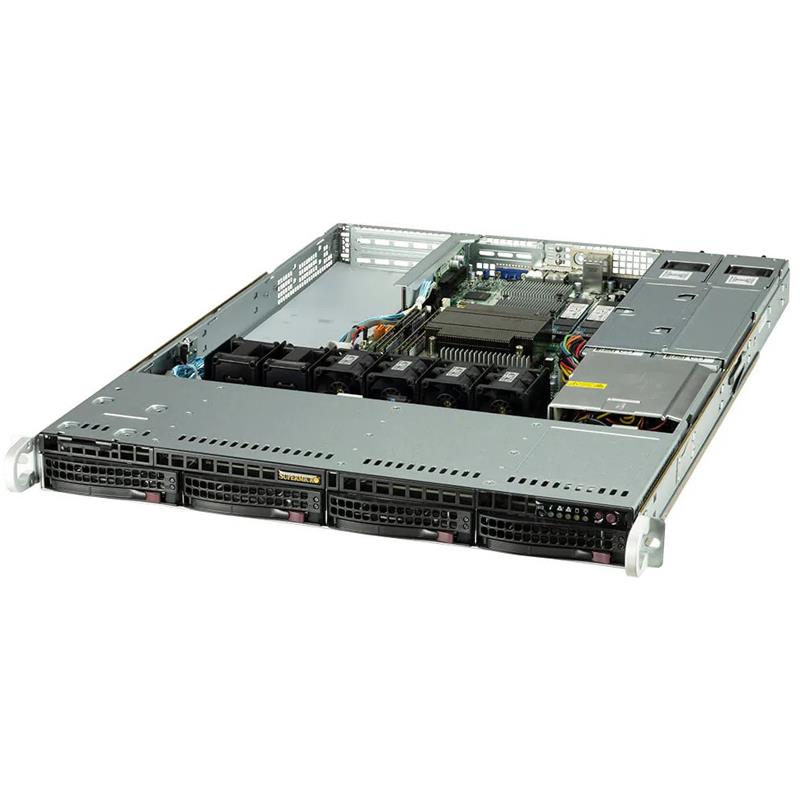

Supermicro SYS-510T-WTR-EU UP 1U Barebone Single Intel Xeon E-2300 Series Processors
Intel Ethernet Controller X550 2x 10GbE RJ45
Equipped with Redundant Platinum Power Supply
4 DIMMs, Up to 128GB of DDR4 ECC UDIMM memory
Supports Intel Xeon E-2300 series, Intel Pentium processors
Barebone 1U Rackmount SuperServer, Supports Single Socket H5 (LGA-1200), Supporting Intel Xeon E-2300 Series Processors and 10th Generation Pentium Processors, Intel C256, Up to 128GB in 4 DIMM slots, UDIMM, On-Board: SATA3 (6Gbps), RAID 0/1/5/10 Support (Port 0-5), 4x 3.5in SATA Drive Bays, M.2: M-key, 2280, 22110, Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 10GbE LAN Ports, 600W Power Supply - (CSE-815TS-R504WBP7 + X12STW-TF) - SYS-510T-WTR-EU
1. Single Socket H5 (LGA-1200), supports Intel Xeon E-2300 series and Pentium processors
2. 4 DIMMs, up to 128GB DDR4 ECC UDIMM, 3200MHz
3. 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHFL)
4. 1 PCIe 3.0 x4 (in x8 LP)
5. 2x 10GbE RJ45 (Intel X550)
6. Redundant 500W Platinum power supply
Extra Specifications for Supermicro SYS-510T-WTR-EU UP 1U Barebone Single Intel Xeon E-2300 Series Processors
| Main Specifications | ||
| Device Type | SuperServer | |
| Form Factor | 1U Rackmount - CSE-815TS-R504WBP7 | |
| Built-in Devices | Super X12STW-TF | |
| Localization | European Version | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 25.6" (650 mm) | |
| Weight | Gross Weight: 48 lbs (21.77 kg) - Net Weight: 24 lbs (10.89 kg) | |
| Enclosure Color | Black | |
| Processor | ||
| Compatible Processors | Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors | |
| Compatible Socket | Single Socket H5 (LGA-1200) | |
| Cache/Core | Up to 8C/16T, Up to 16MB Cache | |
| Note | Supports up to 95W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 double-width or 1 single-width GPU(s) | |
| Supported GPUs | NVIDIA PCIe: T4, RTX A4000, RTX A2000 | |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect | |
| System Memory | ||
| Memory Capacity | Slot Count: 4 DIMM slots, Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| SATA RAID | SATA (6Gbps), RAID 0/1/5/10 support | |
| Chipset | Intel C256 | |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550-AT2 | |
| Input / Output | ||
| LAN | 2 RJ45 10 GbE LAN port(s), 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1) | |
| USB(s) | 4 USB 2.0 port(s) (header), 2 USB 3.2 Gen1 Type-A port(s) (rear), 2 USB 2.0 Type-A port(s) (rear), 2 USB 3.2 Gen1 port(s) (Header), 1 USB 3.2 Gen2 Type-A port(s) (Header) | |
| Video Output | 1 VGA port | |
| Serial Ports | 1 COM port(s) (Rear), 1 COM port(s) (Header) | |
| SuperDOM | 2 SuperDOM (Disk on Module) port(s) with built-in power | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory, 6 + 2 + 1 Phase-switching voltage regulator | |
| FAN | Fans with tachometer monitoring, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| LEDs | Device Activity, LAN 1 Activity, LAN 2 Activity, Power status, System information | |
| Buttons | Power On/Off, System Reset, UID button | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 2 PCIe 4.0 x8 FHFL slot(s), 1 PCIe 3.0 x4 (in x8) LP slot(s) | |
| Option A: 1 PCIe 4.0 x16 FHFL slot(s), 1 PCIe 3.0 x4 (in x8) LP slot(s) | ||
| Expansion Bays Total (Free) | 4 front hot-swap 3.5" SAS/SATA drive bay(s) (SAS support may require additional storage controller and/or cables, please see the optional parts list for details) | |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110) | |
| Drive Bays | ||
| Peripheral Bays | 2 2.5" bay(s) | |
| Peripheral Drives | 1x CSE-PT93L-B | |
| System Cooling | ||
| Fans/Air Shroud | 4 counter-rotation PWM 40x40x56mm Fan(s), 2 AOC cooling Fan(s) (optional) | |
| Air Shroud | 1x MCP-310-19002-0N | |
| Power Supply | ||
| Power Supply | Redundant (1 + 1) Platinum Level (94%) power supplies | |
| Certification | 80PLUS Platinum Level | |
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Parts List - (Items Included) | ||
| Motherboard / Chassis | 1x MBD-X12STW-TF / CSE-815TS-R504WBP7 | |
| Backplanes | 1x BPN-SAS3-815TQ-N4 | |
| Cable(s) | 1x CBL-SAST-0699, 1x CBL-0335L | |
| Riser Cards | 1x RSC-R1UW-E8R, 1x RSC-W-68G4 | |
| Heatsink / Retention | 1x SNK-P0049P | |
| Power Supply Number | 2x PWS-504P-1R2 | |
| Power Distributor(s) | 1x PDB-PT112-S2424 | |
| Fan Holders | 1x CSE-PT0135, 2x MCP-340-00035-0B | |
| Front Panel | 1x FPB-FP815U | |
| Parts | 1x MCP-120-00030-0N, 2x MCP-120-00053-0N | |
| Drive Tray(s) | 4x MCP-220-00075-0B | |
| Rear Window(s) | 1x MCP-240-00098-0N | |
| Rail Set | 1x MCP-290-00016-0N, 1set MCP-290-00054-0N | |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
