| Product SKUs |

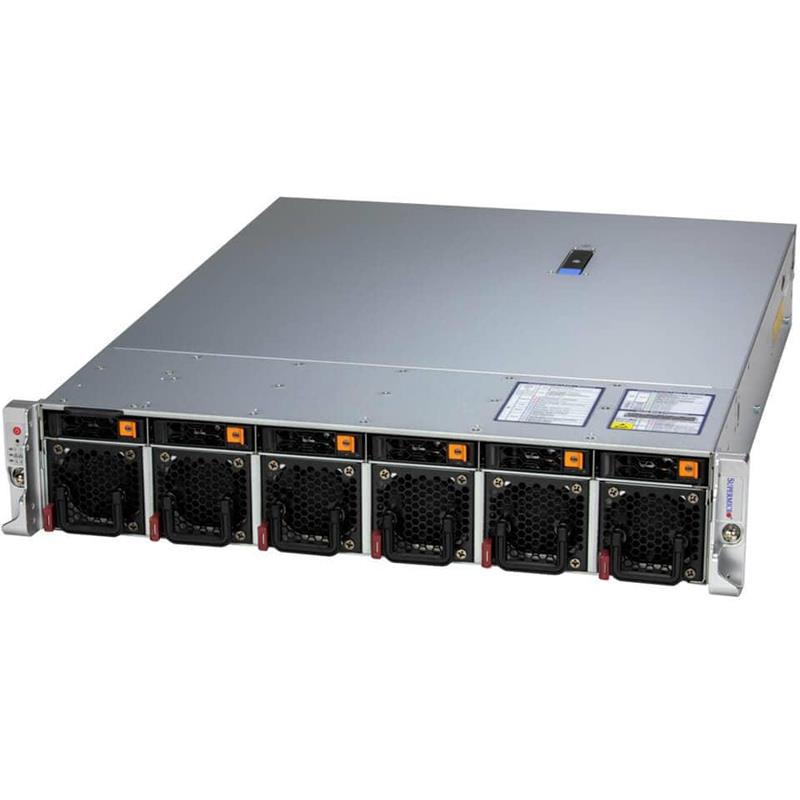

| Product SKUs | SYS-221HE-TNR |
| Motherboard |
| Motherboard | Super X13DEM |
| Processor |
| CPU | Dual Socket E (LGA-4677) |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) |
| Core Count | Up to 60C/120T; Up to 112.5MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 3 double-width or 3 single-width GPU(s) |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, A2 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 32 DIMM slots/16 Channels |
| Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| NVMe | View NVMe Options |
| NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Chipset | Intel® C741 |
| Network Connectivity | View AOC Options |
| View AIOM Options |
| 2 SFP28 25GbE with Broadcom® BCM57414 (optional) |
| 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) |
| 2 QSFP28 100GbE with Intel® E810-CAM2 (optional) |
| 2 QSFP28 100GbE (optional) |
| 4 SFP+ 10GbE with Intel® X710-BM2 (optional) |
| 2 QSFP56 200GbE (optional) |
| 2 QSFP56 100GbE (optional) |
| 2 RJ45 1GbE with Intel® I350-AM2 (optional) |
| 4 SFP+ 10GbE with Intel® X710-TM4 (optional) |
| 1 OSFP 400GbE with NVIDIA® ConnectX®-7 NDR (optional) |
| 4 RJ45 10GbE with Intel® X550 (optional) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB | 2 USB 2.0 port(s) (front) |
| Video | 1 VGA port(s) |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Power Manager (SPM) |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-HE211-R000NFP |
| Dimensions and Weight |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (436.88 mm) |
| Depth | 22.6" (574 mm) |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) |
| Weight | Gross Weight: 47.4 lbs (21.5 kg) |
| Net Weight: 34.4 lbs (15.6 kg) |
| Available Color | Silver |
| Front Panel |
| LED | Power status LED |
| HDD activity LED |
| LAN1 activity |
| LAN2 activity |
| System information |
| Power Fail |
| Buttons | UID button |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | View Drive Options |
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| Default: Total 6 bay(s) 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s) |
| 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s) |
| M.2 | View M.2 Options |
| 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110) |
| System Cooling |
| Fans | 6 Counter-rotating, Hot-swappable 6cm Fan(s) |
| Power Supply |
| Dimension (WxHxL) | 73.5 x 40 x 203 mm |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 166A / Min: 0A (200Vac-240Vac) |
| Certification | Titanium Level |
| [Test Report] |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) |
