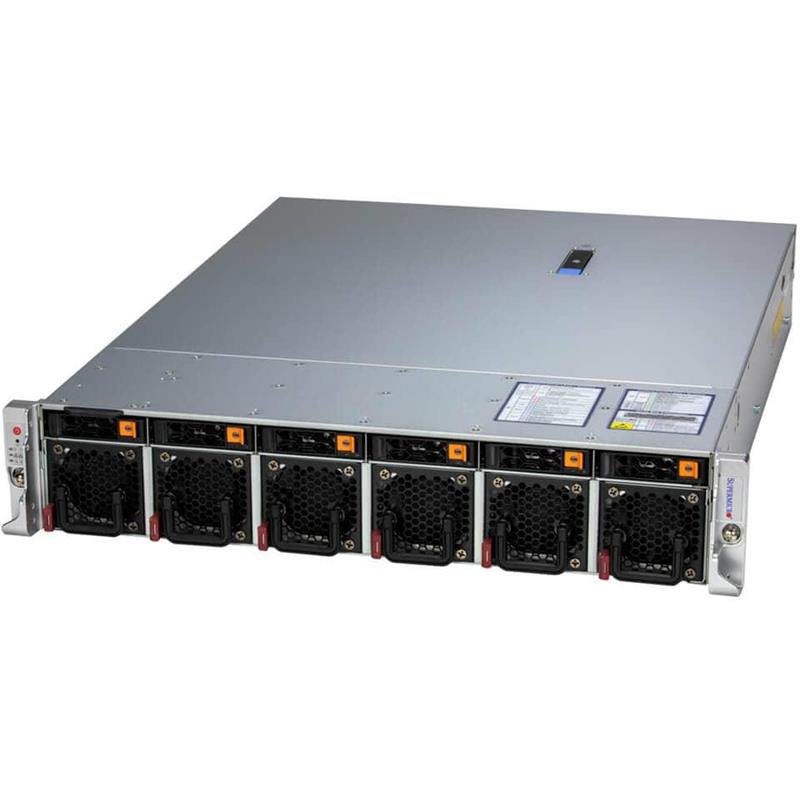

Supermicro SYS-221HE-TNRD IoT 2U Barebone Dual Intel Xeon CPU Max Series With High Bandwidth Memory And Intel Xeon Scalable Processors 5th Generation
• 5G Core and Edge
• Telecom Micro Data Center
• AI Inference and Machine Learning
• Network Function Virtualization
• Cloud Computing
Barebone 2U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon CPU Max Series With High Bandwidth Memory (HBM) And Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741, Up to 8TB in 32 DIMM slots, RDIMM, On-Board: SATA3 (6Gbps), RAID 0/1/5/10 Support, NVMe, RAID 0/1/5/10 support (Intel VROC RAID Key Required), 6x 2.5in Hot-swap Drive Bays, Network Connectivity: Optional Via AOC And AIOM, 1300W Power Supply - (CSE-HE211-R000NFP + X13DEM) - SYS-221HE-TNRD
This product is sold only as a completely assembled system.
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
3. Configurable PCIe slot options up to 8 PCIe 5.0 x8 (6 FHFL+ 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL)
4. Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
6. 6 heavy duty hot-swap fans with optimal fan speed control
7. Redundant 1300W -48V DC power supplies
Extra Specifications for Supermicro SYS-221HE-TNRD IoT 2U Barebone Dual Intel Xeon CPU Max Series With High Bandwidth Memory And Intel Xeon Scalable Processors 5th Generation
| Product SKUs | ||
| Product SKUs | SYS-221HE-TNRD | |
| Motherboard | ||
| Motherboard | Super X13DEM | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | ||
| Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) | ||
| Core Count | Up to 60C/120T; Up to 112.5MB Cache per CPU | |
| Note | Supports up to 350W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 3 double-width or 3 single-width GPU(s) | |
| Supported GPU | View GPU Options | |
| NVIDIA PCIe: RTX A4000, RTX 6000, RTX 5000, A2 | ||
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | PCIe | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 32 DIMM slots/16 Channels | ||
| Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support | |
| NVMe | View NVMe Options | |
| NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) | ||
| Chipset | Intel® C741 | |
| Network Connectivity | View AOC Options | |
| View AIOM Options | ||
| 2 SFP28 25GbE with Broadcom® BCM57414 (optional) | ||
| 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) | ||
| 2 QSFP28 100GbE with Intel® E810-CAM2 (optional) | ||
| 2 QSFP28 100GbE (optional) | ||
| 4 SFP+ 10GbE with Intel® X710-BM2 (optional) | ||
| 2 QSFP56 200GbE (optional) | ||
| 2 QSFP56 100GbE (optional) | ||
| 2 RJ45 1GbE with Intel® I350-AM2 (optional) | ||
| 4 SFP+ 10GbE with Intel® X710-TM4 (optional) | ||
| 1 OSFP 400GbE with NVIDIA® ConnectX®-7 NDR (optional) | ||
| 4 RJ45 10GbE with Intel® X550 (optional) | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB | 2 USB 2.0 port(s) (front) | |
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI Power Management | |
| Power-on mode for DC power recovery | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-HE211-R000NFP | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9 mm) | |
| Width | 17.2" (436.88 mm) | |
| Depth | 22.6" (574 mm) | |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) | |
| Weight | Gross Weight: 47.4 lbs (21.5 kg) | |
| Net Weight: 34.4 lbs (15.6 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| LAN1 activity | ||
| LAN2 activity | ||
| System information | ||
| Power Fail | ||
| Buttons | UID button | |
| Power On/Off | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| Default: Total 6 bay(s) 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s) | ||
| 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s) | ||
| M.2 | View M.2 Options | |
| 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110) | ||
| System Cooling | ||
| Fans | 6 Counter-rotating, Hot-swappable 6cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 73.5 x 40 x 203 mm | |
| +12V | Max: 108.3A / Min: 0A | |
| 12V SB | Max: 2.1A / Min: 0A | |
| AC Input | 1300W: -44--65Vdc | |
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-PWEX-0962Y-20 | $ 42.50 | 0 | 12VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 1/5 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada) | ||
| Cable | CBL-PWEX-0962Y-30 • | 0 | 12VHPWR 2x6+4S to 2x 2x4 MicroHi power cable for PCIe slot 3 (H100, L40S, L40 RTX 6000 Ada, RTX 5000 Ada, RTX 4000 Ada) | |||
| Cable | CBL-PWEX-1148-30 | 0 | CPU 8-pin connector to 2x4 MicroHi power cable for PCIe slot 1/3/5 (A40, A100) | |||
| Cable | CBL-PWEX-1040 • | 0 | Cable to convert CPU 8-pin to 2 PCI 2x3 + 2x1 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
