- Supermicro SYS-511R-W UP 1U Barebone Single Intel Xeon E-2400 Series Processors

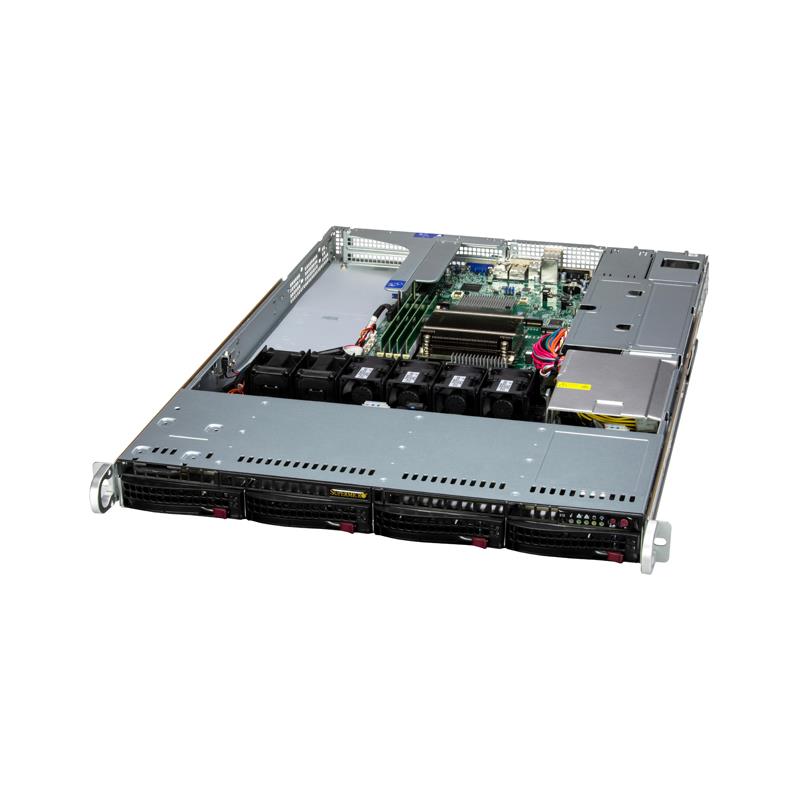

Supermicro SYS-511R-W UP 1U Barebone Single Intel Xeon E-2400 Series Processors
• Virtualization
• Cloud Computing
• Enterprise Server
• Data Center Optimized
• Entry GPU server
• Rack Workstation
Barebone 1U Rackmount SuperServer, Supports Single Socket V0 (LGA-1700), Supporting Intel Xeon E-2400 Series Processors and Intel Pentium Processors 12th Generation, Intel C266, Up to 128GB in 4 DIMM slots, UDIMM, On-Board: SATA3 (6Gbps) RAID, NVMe, 4x 3.5in NVMe/SATA/SAS Drive Bays (2x 3.5in NVMe hybrid), 2x PCIe 4.0 x 4 M.2, Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 1GbE LAN Ports, 600W Power Supply - (CSE-815BTS-R000WNP + X13SCW-F) - SYS-511R-W

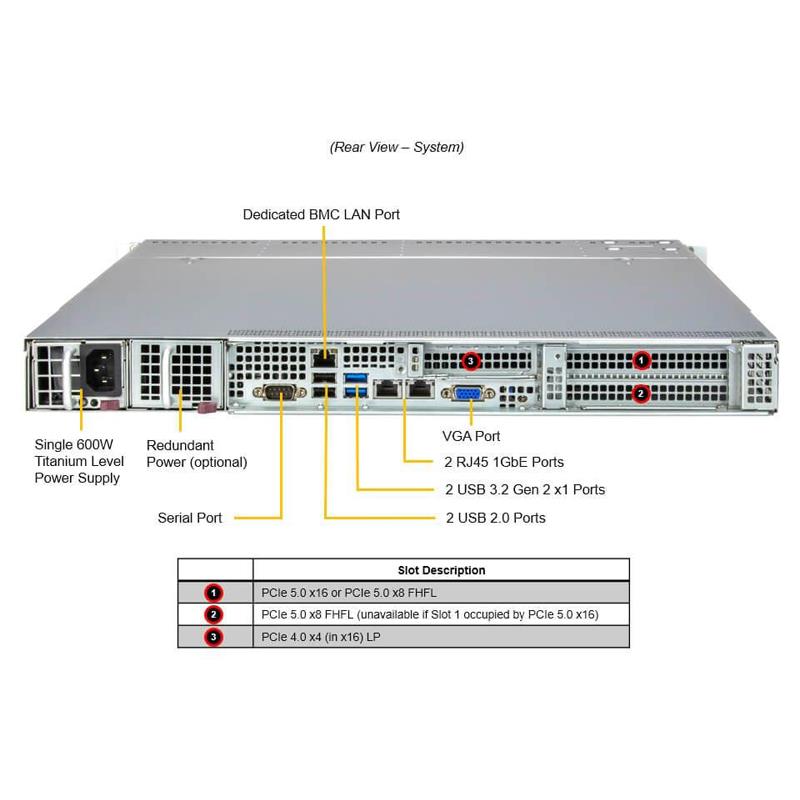

1. Single Socket V0 (LGA-1700) supports Intel® Xeon® 6300-series / E-2400 series, Intel® Pentium® processors
2. 4 DIMMs; Up to 128GB of DDR5 ECC UDIMM memory with speeds of up to 4400MHz
3. 1 PCIe 5.0 x16 or 2 PCIe 5.0 x8 (FHFL); 1 PCIe 4.0 x4 (in x16 LP)
4. Intel® Ethernet Controller i210 2x 1GbE RJ45
5. Default single Titanium 600W Power Supply; Optional redundant power by adding 1x Power Supply Module
Extra Specifications for Supermicro SYS-511R-W UP 1U Barebone Single Intel Xeon E-2400 Series Processors
| Product SKUs | ||
| Product SKUs | SYS-511R-W | |
| Motherboard | ||
| Motherboard | Super X13SCW-F | |
| Processor | ||
| CPU | Single processor(s) | |
| Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors | ||
| Core Count | Up to 8C/16T; Up to 24MB Cache | |
| Note | Supports up to 95W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 double-width or 1 single-width GPU(s) | |
| Supported GPU | View GPU Options | |
| NVIDIA PCIe: L40, RTX A4000, RTX A2000, L4 | ||
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 4 DIMM slots/2 Channels | ||
| Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support | |
| Chipset | Intel® C266 | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 1GbE with Intel® I210 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 2 RJ45 1 GbE LAN port(s) | |
| 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1) | ||
| USB | 4 USB 2.0 port(s) (header) | |
| 2 USB 2.0 Type-A port(s) (rear) | ||
| 2 USB 3.2 Gen1 port(s) (Header) | ||
| 1 USB 3.2 Gen2 Type-A port(s) (Header) | ||
| 2 USB 3.2 Gen2 Type-A port(s) (Rear) | ||
| Video | 1 VGA port(s) | |
| Serial | 1 COM port(s) (Rear) | |
| 1 COM port(s) (Header) | ||
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI/APM Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 6 + 1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-815BTS-R000WNP | |
| Dimensions and Weight | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.6" (650 mm) | |
| Package | 8.5" (H) x 23.5" (W) x 33.7" (D) | |
| Weight | Gross Weight: 34.5 lbs (15.46 kg) | |
| Net Weight: 21.5 lbs (9.75 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Unit Identification (UID) LED | ||
| Fan Fail/System Over Heat LED | ||
| Network Activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Unit Identification (UID) button | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 4 bay(s) 4 front hot-swap 3.5" SAS*/SATA drive bay(s) | ||
| 4 front hot-swap 3.5" SAS*/SATA drive bay(s) | ||
| Option A: Total 4 bay(s) 2 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bay(s) 2 front hot-swap 3.5" SAS*/SATA drive bay(s) | ||
| 2 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bay(s) | ||
| 2 front hot-swap 3.5" SAS*/SATA drive bay(s) | ||
| (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) | ||
| M.2 | View M.2 Options | |
| 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110) | ||
| Peripheral Bays | 2 2.5" bay(s) (optional) | |
| System Cooling | ||
| Fans | 2 AOC cooling Fan(s) (optional) | |
| 4 counter-rotation PWM 40x40x56mm Fan(s) | ||
| Power Supply | ||
| Dimension (WxHxL) | 54.5 x 40.25 x 322 mm | |
| +12V | Max: 50A / Min: 0A (100Vac-127Vac) | |
| Max: 50A / Min: 0A (200Vdc-240Vdc) | ||
| Max: 50A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 600W: 100-127Vac / 50-60Hz | |
| 600W: 200-240Vdc / 50-60Hz | ||
| 600W: 200-240Vac / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N | $ 26.00 | 0 | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black | ||
| 3.5'' to 2.5" NVMe Drive Tray(s) | MCP-220-00138-0B | $ 43.00 | 2 | Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black | ||
| CacheVault | BTR-CVPM05 + MCP-240-00203-0N (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location | |||
| CacheVault | BTR-CV3916-1U1 (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting in 1U 40x56 fan tray | |||
| Cooling Fan | FAN-0163L4 | $ 33.50 | 2 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | $ 101.00 | 1 | PHILPS slim DVD-RW SATA drive | ||
| DVD-ROM Accessory | CDM-USATA-G + 1x CBL-0470L + 1x CBL-0099 (max 1pc) | 1 | Slim SATA DVD mounting kit | |||
| Front Bezel | CSE-PTFB-813LB | $ 27.00 | 1 | Black Front Bezel | ||
| Front Bezel | CSE-PTFB-813-02B | $ 25.50 | 1 | Black Front Bezel w/ Round Venting Holes | ||
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N + 1x CBL-SAST-1270S (max 1pc) + 1x CBL-0099 (max 1pc) | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor | |||
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N + 1x CBL-SAST-1270S (max 1pc) + 1x CBL-0099 (max 1pc) | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor | |||
| Inlet Thermal Sensor | MCP-280-00034-0N | $ 31.50 | 1 | Inlet Thermal sensor kit with 40cm I2C cable | ||
| NVMe Cable (Drive Bay 0-1) | CBL-MCIO-1260M5Y • | 1 | MCIO (x8 to 2 x4) STR,60CM,85OHM | |||
| Power Supply | PWS-601A-1R | $ 279.00 | 1 | Optional redundant power supply | ||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT | $ 397.50 | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA | ||
| TPM | AOM-TPM-9672V | $ 72.00 | 1 | TPM 2.0 with 10 pins SPI support, vertical form factor | ||
| TPM | AOM-TPM-9670V | $ 56.50 | 1 | TPM 2.0, vertical form factor |
