| System Memory |
| Memory Voltage | 1.2V |
| Memory | View Memory Options |
| Slot Count: 2 DIMM slots |
| Max Memory (1DPC): Up to 128GB 2933MT/s ECC/non-ECC DDR4 RDIMM/UDIMM |
| On-Board Devices |
| Chipset | Intel® SoC |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) |
| 2 RJ45 10GbE with Intel® X550-AT2 |
| 2 SFP28 25GbE |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| 2 SFP28 25 GbE LAN port(s) |
| 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2) |
| USB | 2 USB 3.0 Type-A port(s) (Rear) |
| Video | 1 VGA port(s) (Rear) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| SMBIOS 3.0 or later |
| Riser Card audio detection support |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | Power-on mode for AC power recovery |
| CPU thermal trip support for processor protection |
| +12V DC Power Input |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| System Lockdown |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LED | Unit Identification (UID) LED |
| Product SKUs |

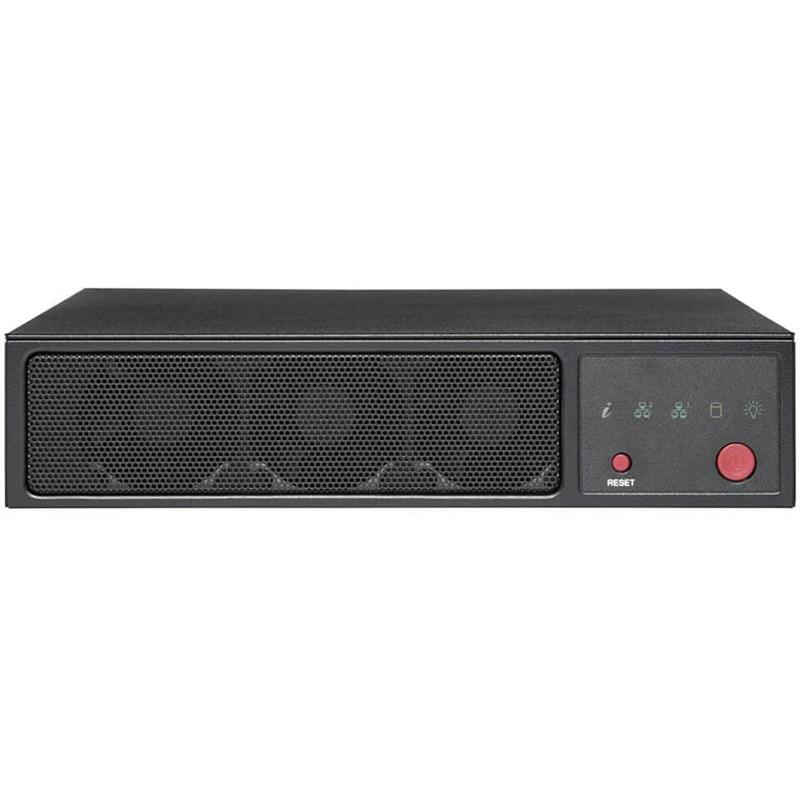

| Product SKUs | SYS-E200-12D-10C |
| Motherboard |
| Motherboard | Super X12SDV-10C-SPT4F |
| Processor |
| CPU | Intel® Xeon® Processor D-1749NT |
| Single processor(s) |
| Core Count | Up to 10C/20T; Up to 15MB Cache |
| Note | Supports up to 90W TDP CPUs (Air Cooled) |
| Chassis |
| Form Factor | Mini-ITX |
| Model | CSE-101F |
| Dimensions and Weight |
| Height | 1.69" (43 mm) |
| Width | 7.68" (195 mm) |
| Depth | 8.89" (225.8 mm) |
| Package | 11.22" (H) x 14.96" (W) x 5.47" (D) |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 2.76 lbs (1.25 kg) |
| Available Color | Black |
| Drive Bays / Storage |
| M.2 | View M.2 Options |
| 1 M.2 PCIe 4.0 x4 NVMe/SATA slot(s) (M-key 2280) |
| System Cooling |
| Fans | 3x 4-PIN PWM 40x40x28mm Fan(s) |
| Power Supply |
| AC Input | 180W: 100-240Vac / 47-63Hz |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
