Supermicro SYS-521AD-TN2 IoT Compact Mini-Tower Single Intel Core i9/Core i7/Core i5/Core i3 Processor 13th and 12th Generation
• Surveillance Security Server
• Compact Storage Appliance
•Video processing & streaming
•Small Medium Business Edge Server
Barebone Compact Mini-Tower SuperServer, Supports Single Socket (LGA-1700), Supporting Intel Core i9, Core i7, Core i5, Core i3 13th and 12th Generation - Pentium and Celeron Processor, Intel Q670E, Up to 64GB in 2 DIMM slots, SO-DIMM, On-Board: SATA3 (SATA 6Gb/s), 4x 3.5in SATA Drive Bays, Network Connectivity: 1 RJ45 GbE Intel I210-AT, 1 RJ45 2.5G Intel I225-LM, 350W Power Supply - (CSE-721TQ-350B2 + X13SAV-LVDS) - SYS-521AD-TN2
1. 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor (LGA-1700)
2. Intel® Q670E
3. 2x DDR4-3200MHz SO-DIMM max 64GB
4. Support 1x PCIe 5.0 x16 Slot
5. AMT vPro Supported
6. 4x Hot-swap 3.5", 1x 2.5" drive bays or 1x Slim DVD-ROM (optional)
7. 350W Flex ATX Multi-output Gold Power Supply
8. TPM chip onboard with jumper disable Support M.2 M/E-Key
9. Intel® UHD Graphics,2x DisplayPort, 1x HDMI 2.0 Ports, 1x HDMI 1.4 Ports HD Audio(Mic In/Line Out) 4x USB3.2 (rear) 2x USB 3.0 (front) 1x GbE, 1x 2.5G LAN ports
Extra Specifications for Supermicro SYS-521AD-TN2 IoT Compact Mini-Tower Single Intel Core i9/Core i7/Core i5/Core i3 Processor 13th and 12th Generation
| Product SKUs | ||
| Product SKUs | SYS-521AD-TN2 | |
| Motherboard | ||

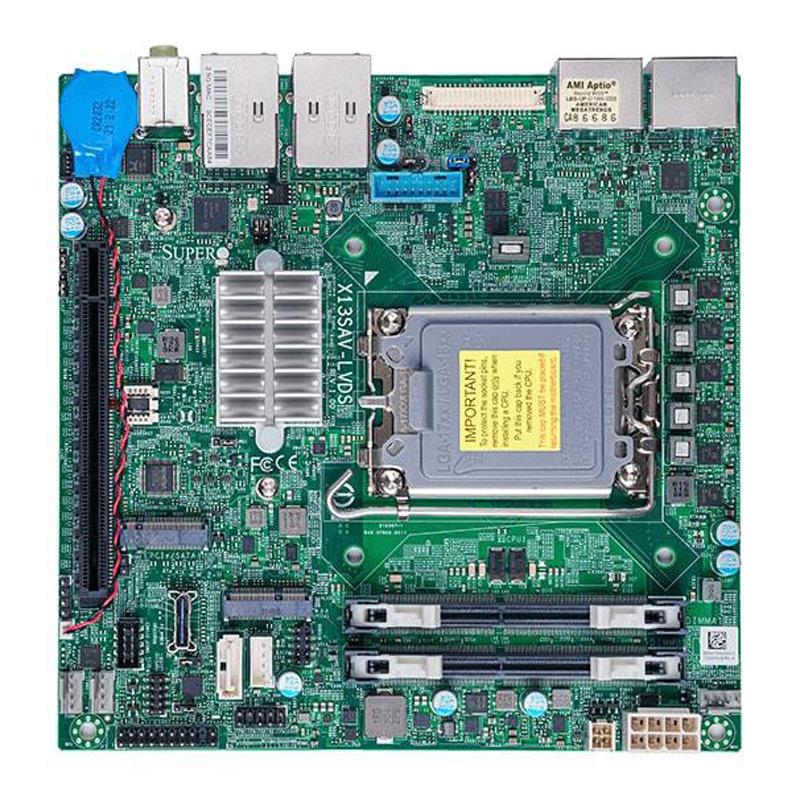

| Motherboard | Super X13SAV-LVDS | |
| Processor | ||
| CPU | Single processor(s) | |
| 13th/12th Gen Intel® Core i9/Core i7/Core i5/Core i3/Pentium/Celeron processor | ||
| Core Count | Up to 16C/32T; Up to 30MB Cache | |
| Note | Supports up to 65W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 2 DIMM slots | ||
| Max Memory (2DPC): Up to 64GB 3200MT/s non-ECC DDR4 SO-DIMM | ||
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) | |
| Chipset | Intel® Q670E | |
| Network Connectivity | View AOC Options | |
| 1 RJ45 1GbE with Intel® I210-AT | ||
| 1 RJ45 2.5GbE with Intel® I225-LM | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 2.5 GbE LAN port(s) (Intel® I225-LM) | |
| 1 RJ45 1 GbE LAN port(s) (Intel® I210-AT) | ||
| USB | 4 port(s) (rear) | |
| 2 port(s) (front) | ||
| Video | 1 HDMI 2.0b port(s) | |
| 1 HDMI 1.4 port(s) | ||
| 2 port(s) | ||
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| BIOS Features | RTC (Real Time Clock) Wakeup | |
| SMBIOS 3.0 or later | ||
| UEFI 2.7 | ||
| PCI FW 3.0 | ||
| ACPI 6.1 | ||
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for 4x 4-pin fan connectors | ||
| Platform Environmental Control Interface (PECI) | ||
| Chassis | ||
| Form Factor | Compact Mini-Tower | |
| Model | CSE-721TQ-350B2 | |
| Dimensions and Weight | ||
| Height | 9.45" (240.03 mm) | |
| Width | 8.27" (210.06 mm) | |
| Depth | 11" (279.4 mm) | |
| Package | 13.78" (H) x 12.4" (W) x 16.14" (D) | |
| Weight | Gross Weight: 15 lbs (6.8 kg) | |
| Net Weight: 13.5 lbs (6.12 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Network activity LEDs | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| Port | USB 3.0 Port(s) | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| M.2 | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 4 bay(s) 4 internal fixed 2.5" SATA drive bay(s) | ||
| 4 internal fixed 2.5" SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 1 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280) | ||
| System Cooling | ||
| Fans | 1x 4-PIN PWM 12cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 81.5 x 40.5 x 150 mm | |
| +12V | Max: 28A / Min: 0.1A (100Vac-240Vac) | |
| 5V SB | Max: 2A / Min: 0.05A | |
| AC Input | 350W: 100-240Vac / 50-60Hz | |
| Output Type | 24pin ATX | |
| Certification | Gold Level | |
| [Test Report] | ||
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SAV-LVDS | 1 | Super X13SAV-LVDS Motherboard | |
| Motherboard / Chassis | CSE-721TQ-350B2 | 1 | Compact Mini-Tower Chassis | |
| Cable | CBL-PWEX-0887Y-15 | 1 | [NR]MiniFit (2x4F to 2 2x2M), PH4.2,15cm,9A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1066 | 1 | 2x2F/P2.54TO 2x12M/P4.2,ATX(+5VSTB,PSON#),5A/p,20CM,20#,RoHS | |
| Cable | CBL-SAST-0933 | 1 | OcuLink v 1.0 to 4x SATA 7-pin,INT, 50CM,32AWG,RoHS | |
| Backplane | CSE-SAS-733TQ | 1 | 733 SAS BACKPLANE W/SES2 | |
| Parts | MCP-260-00166-0N | 1 | STD I/O Shield for X13SAV-LVDS with EMI Gasket | |
| *Power Supply | PWS-353-1H | 1 | 1U Flex ATX 350W Multi-output Gold power supply | |
| *Fan | FAN-0124L4 | 1 | 12 CM x12 CM fan | |
| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-0044L • | 1 | 57.5CM SATA FLAT S-S PBF | |||
| DVD | DVM-TEAC-DVDRW-SBT5 | $ 101.00 | 1 | BLACK TEAC SLIM DVD-RW SATA DRIVE,HF,RoHS/REACH,PBF | ||
| DVD kit | MCP-220-81502-0N • | 1 | Slim SATA DVD kit | |||
| Heatsink | SNK-P0092AP4-1 | $ 78.00 | 1 | 2U Active CPU Heat Sink for X13SAV-PS | ||
| Tray | MCP-220-00043-0N • | 1 | Black hot-swap gen 4 3.5 to 2.5 HDD tray |
