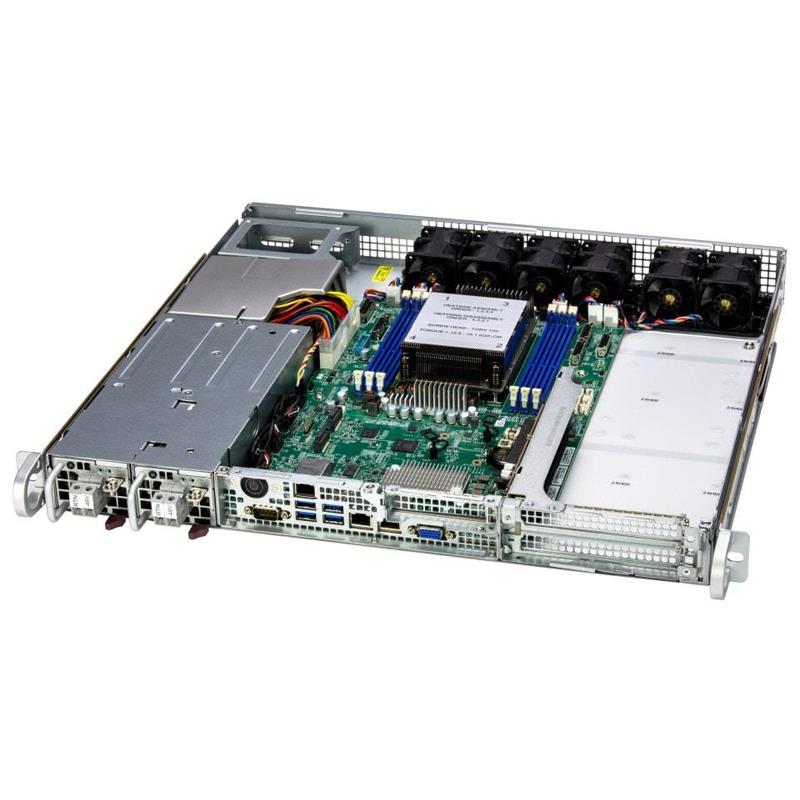

Supermicro AS-1115S-FDWTRT IoT 1U Barebone Single AMD EPYC 8004 Series Processor
• Virtualization
• Firewall Applications
• Edge/Cloud Computing Services
• CDN/vCDN/Cloud CDN
• 5G/Telco/NEBS environment
• vRAN/o-RAN
Barebone 1U Rackmount SuperServer, Supports Single Socket, Supporting AMD EPYC 8004 Series Processor, System on Chip, Up to 576GB in 6 DIMM slots, RDIMM, On-Board: SATA (6Gbps), 2x 2.5in SATA/SAS/NVMe Drive Bays, PCIe 3.0 x4 M.2, Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2 RJ45 10GbE (Broadcom BCM57416), 600W Power Supply - (CSE-515B-R000WNP + H13SVW-NT) - AS-1115S-FDWTRT
1. AMD EPYC™ 8004 Series Processor
2. 6 DIMM slots, DDR5-4800MHz memory, support up to 576GB
3. 1x dedicated IPMI LAN, 2x 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
4. 600W Redundant DC Power Supplies
Extra Specifications for Supermicro AS-1115S-FDWTRT IoT 1U Barebone Single AMD EPYC 8004 Series Processor
| Product SKUs | ||
| Product SKUs | AS -1115S-FDWTRT | |
| Motherboard | ||
| Motherboard | Super H13SVW-NT | |
| Processor | ||
| CPU | Single processor(s) | |
| AMD EPYC™ 8004 Series Processor | ||
| Core Count | Up to 64C/128T | |
| Note | Supports up to 200W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 1 single-width GPU(s) | |
| Supported GPU | NVIDIA PCIe: A2 | |
| View GPU Options | ||
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| System Memory | ||
| Memory | Slot Count: 6 DIMM slots | |
| Max Memory (2DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM | ||
| View Memory Options | ||
| On-Board Devices | ||
| SATA | SATA (6Gbps) | |
| NVMe | NVMe; (Optional) | |
| Chipset | System on Chip | |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom® BCM57416 | |
| View AOC Options | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 10 GbE LAN port(s) | ||
| USB | 4 port(s) | |
| Video | 1 VGA port(s) | |
| TPM | 1 TPM header | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 Plug and Play (PnP) USB Keyboard support | |
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | 1U 600W Redundant DC48V input w/PMBus power supply | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| CPU | Monitors for CPU thermal trip, Chipset Voltages, Memory | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-515B-R000WNP | |
| Dimensions and Weight | ||
| Height | 1.7" (44.5 mm) | |
| Width | 17.2" (436.88 mm) | |
| Depth | 16.9" (429.3 mm) | |
| Package | 8" (H) x 27" (W) x 24" (D) | |
| Weight | Gross Weight: 15 lbs (6.8 kg) | |
| Net Weight: 10 lbs (4.54 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| LED | LAN1 activity | |
| LAN2 activity | ||
| Power status | ||
| Buttons | Power On/Off | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: Total 2 bay(s) 2 internal fixed 2.5" NVMe/SAS/SATA drive bay(s) | |
| 2 internal fixed 2.5" NVMe/SAS/SATA drive bay(s) | ||
| View Drive Options | ||
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 2280/22110) | |
| View M.2 Options | ||
| System Cooling | ||
| Fans | 6 Heavy duty counter-rotating 4cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 54.5 x 40 x 220 mm | |
| 5V SB | Max: 3A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H13SVW-NT | 1 | Super H13SVW-NT Motherboard | |
| Motherboard / Chassis | CSE-515B-R000WNP | 1 | 1U Chassis | |
| Cable | CBL-0082L | 1 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
| Cable | CBL-PWCD-0974 | 2 | 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS | |
| Fan | FAN-0167L4 | 2 | 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers | |
| Riser Card | RSC-W-66G5 | 1 | 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R | |
| Riser Card | RSC-WR-6G5H | 1 | 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0062P-1 | 1 | 1U Passive CPU Heat Sink for AMD Socket SP6 Processors | |
| *Power Supply | PWS-601S-1R | 2 | 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4 | |
| *Power Distributor | PDB-PT514-2824 | 1 | 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
