- Supermicro SYS-211TP-HPTR IoT 2U Barebone Four Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th and 4th Generation

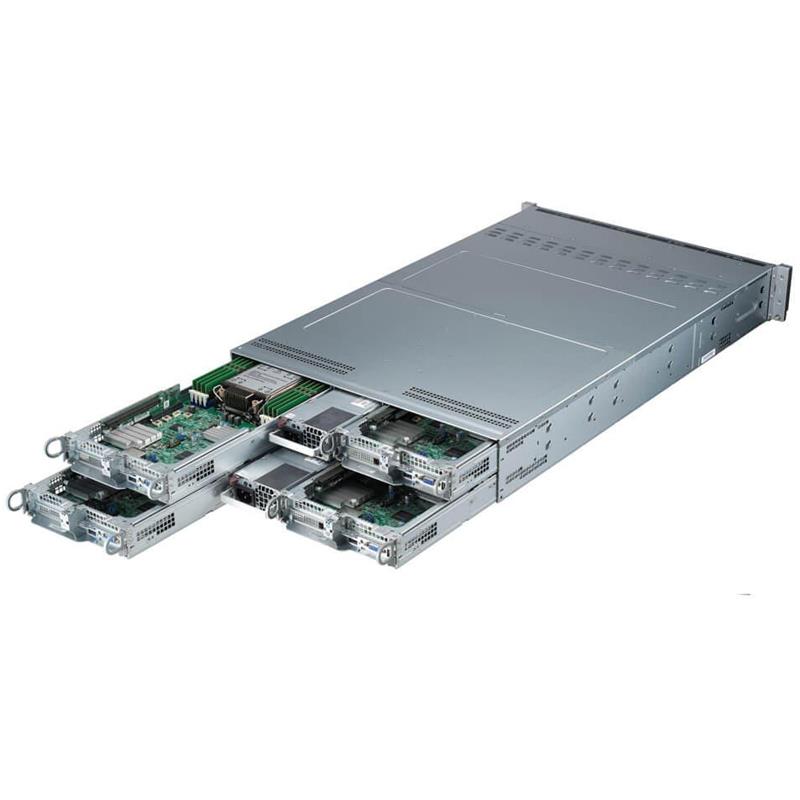

Supermicro SYS-211TP-HPTR IoT 2U Barebone Four Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th and 4th Generation
• Multi-Access Edge Computing
• Flex-RAN, Open-RAN vBBU
• Telecom DRAN, CRAN, and Edge Core Application
• Enterprise Edge Computing
Barebone 2U Rackmount SuperServer, Four Nodes, Each Node Supports: Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741, Up to 2TB in 8 DIMM slots, RDIMM, On-Board: SATA3 (6Gbps), 6x 2.5in Hot-swap SATA Drive Bays, 2x M.2 NVMe, Network Connectivity: 1 RJ45 Dedicated IPMI LAN Port, 2x 10 GbE SFP+ (LAN1 shared with IPMI), 2000W Power Supply - (CSE-217HQ+-R2K04BP4 + X13SET-PT) - SYS-211TP-HPTR
1. Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors (per node)
2. Intel® C741 Chipset
3. 8 DIMMs; Up to 2TB ECC DDR5-5600MT/s R-DIMM / R-DIMM 3DS (per node)
4. 2 PCIe Gen5 x16 HHHL slot (per node)
5. 2 NVMe M.2 2280 / 25110 (per node) Front hot-swappable 2.5” HDD/SSD tray (6 tray per node)
6. 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
7. 1+1 Redundant 2000W AC Power Supplies (per system)
8. Intel® X710 Dual port 10G SFP+ onboard
Extra Specifications for Supermicro SYS-211TP-HPTR IoT 2U Barebone Four Hot-pluggable Nodes Single Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SYS-211TP-HPTR | |
| Motherboard | ||
| Motherboard | ||
| Processor (per Node) | ||
| CPU | Single Socket E (LGA-4677) | |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | ||
| Core Count | Up to 60C/120T; Up to 300MB Cache | |
| Note | Supports 85W - 270W TDP CPUs (Air Cooled) | |
| System Memory (per Node) | ||
| Memory | Slot Count: 8 DIMM slots/1 Channels | |
| Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices (per Node) | ||
| SATA | SATA (6Gbps) | |
| Chipset | Intel® C741 | |
| Network Connectivity | View AOC Options | |
| 2 SFP+ 10GbE with Intel® X710-BM2 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output (per Node) | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 SFP+ 10 GbE LAN port(s) (IPMI shared on LAN port 1) | ||
| USB | 2 USB 3.2 Gen1 Type-A port(s) (rear) | |
| Video | 1 VGA port(s) (Rear) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| BIOS Features | RTC (Real Time Clock) Wakeup | |
| SPI dual/quad speed support | ||
| SMBIOS 3.5 or later | ||
| UEFI 2.9 | ||
| Riser Card audio detection support | ||
| ACPI Power Management 6.4 | ||
| PCI firmware 4.0 | ||
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Power Manager (SPM) | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI Power Management | |
| Power-on mode for power recovery | ||
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support, PEPI | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217HQ+-R2K04BP4 | |
| Dimensions and Weight | ||
| Height | 3.5" (88 mm) | |
| Width | 17.25" (438 mm) | |
| Depth | 28.75" (730 mm) | |
| Package | 9.8" (H) x 20.7" (W) x 38" (D) | |
| Weight | Gross Weight: 90 lbs (40.8 kg) | |
| Net Weight: 70 lbs (31.8 kg) | ||
| Available Color | Black front & silver body | |
| Front Panel | ||
| LED | Power status LED | |
| Network activity LED | ||
| System information (overheat/UID) LED | ||
| Buttons | Power On/Off button | |
| UID button | ||
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage (per Node) | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 6 bay(s) 6 front hot-swap 2.5" SATA drive bay(s) | ||
| 6 front hot-swap 2.5" SATA drive bay(s) | ||
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110/25110; VROC required for RAID) | |
| System Cooling | ||
| Air Shroud | 4 Air Shroud(s) | |
| Fans | 4 heavy duty fans with optimal fan speed control 8cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 76 x 40 x 336 mm | |
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) | ||
| Max: 166.7A / Min: 0A (230Vac-240Vac) | ||
| 5V SB | Max: 1A / Min: 0A | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) | ||
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| [Test Report] | ||
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) | ||
| Non-operating Temperature: 0°C to 70°C (32°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SET-PT | 4 | Super X13SET-PT Motherboard | |
| Motherboard / Chassis | CSE-217HQ+-R2K04BP4 | 1 | 2U Chassis | |
| Backplane | BPN-ADP-6SATA3P | 4 | Backplan adapter card; 6SATA ports,RoHS/REACH,PBF | |
| Backplane | BPN-SAS3-217HQ3 | 1 | 2U 24-Slot 4-Node TwinPro Backplane Supports up to 6x 2.5 SA | |
| Cable | CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17 | |
| Parts | MCP-150-00015-0B | 4 | Rubber pad, 3.0mm H, 10x10mm | |
| Riser Card | RSC-P-6G5 | 4 | 1U LHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF, | |
| Riser Card | RSC-PR-6G5 | 4 | 1U RHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF | |
| Software | SFT-OOB-LIC | 4 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0087V | 4 | 1U Passive CPU VC HS for X13 Intel Eagle Stream Platform | |
| *Power Supply | PWS-2K04A-1R | 2 | AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH | |
| *Power Distributor | PDB-PT217-H2412 | 1 | 2U support redundancy input powers up to 2.6KW for Twin seri | |
| *Fan | FAN-0183L4 | 4 | 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers | |
| *Drive Tray(s) | MCP-220-00047-0B | 24 | Black gen 3rd hot-swap 2.5inch HDD tray | |
| *Rail Set | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W | |
| *Fan Holder | MCP-320-21701-0N | 2 | Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH |
