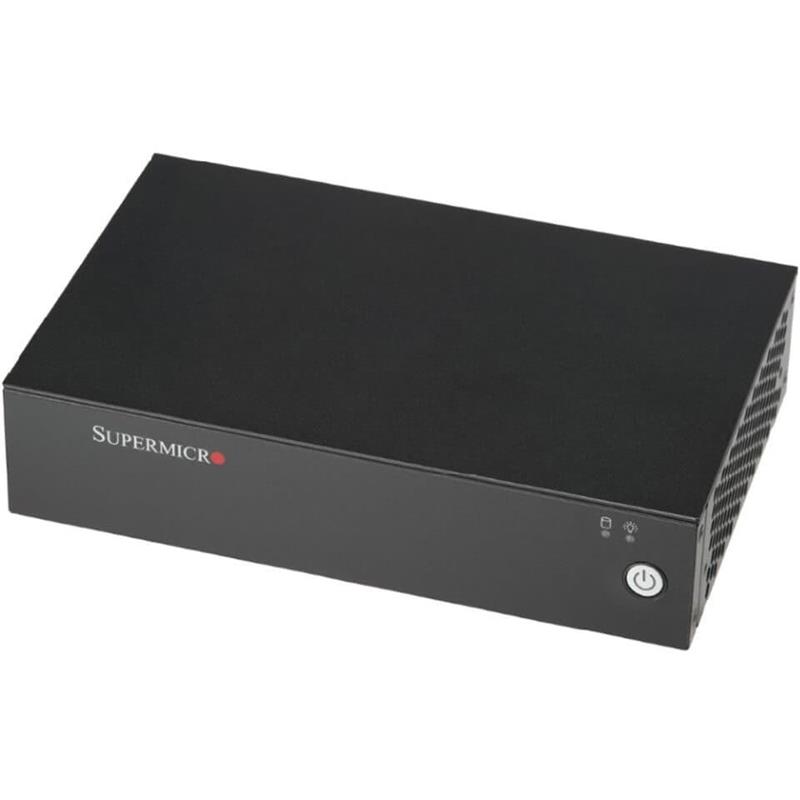

- Supermicro SYS-E102-13R-H IoT Fan-based Embedded Intel Raptor Lake-P I7-1370PE Processor
Supermicro SYS-E102-13R-H IoT Fan-based Embedded Intel Raptor Lake-P I7-1370PE Processor
• IoT Gateway
• Smart Retail
• Inference AI edge compute
• Medical/Education Signage
Barebone Fan-based SuperServer, Embedded Intel Raptor Lake-P I7-1370PE Processor, 1.90GHz 14-Core/6 Thread/24MB Cache. Up to 64GB in 2 DIMM slots, SO-DIMM, Chipset: System-on-Chip, On-Board: NVMe, SATA3, 1x 2.5in SATA Drive Bays, 1 M.2 NVMe, Network Connectivity: 2x 2.5GbE BaseT with Intel I226-IT, 84W Power Supply - (CSE-E102TF2 + X13SRN-H-WOHS) - SYS-E102-13R-H
1. Intel® Intel® Raptor Lake-P I7-1370PE 14C/20T Processor
2. Dual Channel DDR5 4800MHz SO-DIMM, up to 64GB
3. 2x 2.5GbE LAN Ports
4. 1x 2.5” 7mm Storage Drive
5. 1x M.2 M-Key 2242/2280 (PCIe x4), 1x M.2 E Key 2230, 1x M.2 B-key 2242/3042/2280
6. 4x USB 3.2 Ports Gen2, 2x HDMI Port, 2x DisplayPort (2x USB type-C for USB & DP)
Extra Specifications for Supermicro SYS-E102-13R-H IoT Fan-based Embedded Intel Raptor Lake-P I7-1370PE Processor
| Product SKUs | ||
| Product SKUs | SYS-E102-13R-H | |
| Motherboard | ||
| Motherboard | Super X13SRN-H-WOHS | |
| Processor | ||
| CPU | Single processor(s) | |
| Core Count | 14C/28T; 24MB Cache | |
| Note | Supports up to 28W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 2 DIMM slots | ||
| Max Memory (2DPC): 64GB 4800MT/s non-ECC DDR5 SO-DIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| SATA | SATA (6Gbps) | |
| Chipset | Intel® System on Chip | |
| Network Connectivity | View AOC Options | |
| 2 RJ45 2.5GbE with Intel® I226-IT | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 2 RJ45 2.5 GbE LAN port(s) | |
| USB | 2 USB 3.2 Gen2 Type-A port(s) (Rear) | |
| 2 USB 3.2 Gen2 Type-C port(s) (Rear) | ||
| Video | 1 HDMI 2.0b port(s) (Rear) | |
| 1 HDMI 1.4b port(s) (Rear) | ||
| 2 DisplayPort over USB Type-C 1.4 port(s) (Rear) | ||
| System BIOS | ||
| BIOS Type | AMIUEFI | |
| BIOS Features | ACPI 6.4 | |
| SMBIOS 3.5 or later | ||
| UEFI 2.8B | ||
| PCI F/W 3.3 | ||
| Management | ||
| Software | KVM with dedicated LAN | |
| Redfish API | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| Super Diagnostics Offline | ||
| Power configurations | ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Cryptographically Signed Firmware | |
| Secure Boot | ||
| Secure Firmware Updates | ||
| Automatic Firmware Recovery | ||
| Supply Chain Security: Remote Attestation | ||
| Runtime BMC Protections | ||
| System Lockdown | ||
| Chassis | ||
| Form Factor | Fan-based Embedded | |
| Model | CSE-E102TF2 | |
| Dimensions and Weight | ||
| Height | 1.72" (44 mm) | |
| Width | 7.48" (190 mm) | |
| Depth | 4.72" (120 mm) | |
| Package | 5.12" (H) x 11.81" (W) x 11.02" (D) | |
| Weight | Gross Weight: 4.5 lbs (2 kg) | |
| Net Weight: 2.65 lbs (1.2 kg) | ||
| Palletized Packing (W x H x L) | 46.5" (1180 mm) x 39.4" (1000 mm) x 37.4" (950 mm) | |
| Available Color | Black | |
| Front Panel | ||
| LED | Power status | |
| HDD Status | ||
| Buttons | Power On/Off | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: Total 1 bay(s) 1 internal fixed 2.5" SATA drive bay(s) | |
| 1 internal fixed 2.5" SATA drive bay(s) | ||
| M.2 | View M.2 Options | |
| 1 M.2 NVMe slot(s) (M-key 2280) | ||
| System Cooling | ||
| Fans | 1x 4-PIN PWM 40x40x15mm Fan(s) | |
| Power Supply | ||
| AC Input | 84W: 100-240Vac / 47-63Hz | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SRN-H-WOHS | 1 | Super X13SRN-H-WOHS Motherboard | |
| Motherboard / Chassis | CSE-E102TF2 | 1 | Fan-based Embedded Chassis | |
| Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Fan | FAN-0131L4 | 1 | 40x40x15 mm, 12K RPM, Cooling Fan for SYS-E102-13R,RoHS | |
| Power Supply | MCP-250-10137-0N | 1 | 84W Lockable AC to DC power adapter w/o power cord - EN62368 | |
| Heatsink / Retention | SNK-C0126PL-1 | 1 | 68W x 128L x 18.7H mm, Al+Cu+HP, Screws, Grease, Nickel |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-PWEX-1030 • | 0 | SATA power | |||
| Cable | CBL-SAST-0881 | $ 17.00 | 0 | SATA signal | ||
| Dual System Tray & Sliding Rail Kit | MCP-290-10119-0B | 0 | MCP-290-10119-0B：Dual System Tray | |||
| Dual System Tray & Sliding Rail Kit | MCP-120-10202-0B | 0 | MCP-120-10202-0B：Sliding Rail Kit | |||
| M.2 heatsink | SNK-C0160L | $ 25.50 | 1 | M.2 heatsink interferes with the 2.5" SSD, you can only choose one between M.2 heatsink and 2.5" SSD. | ||
| Mounting Clip for DIN Rail | MCP-290-10201-0N | 0 | Mounting Clip for DIN Rail | |||
| Wall mount/VESA mount | MCP-290-10113-0B | 0 | Wall mount/VESA mount |
