| Product SKUs |

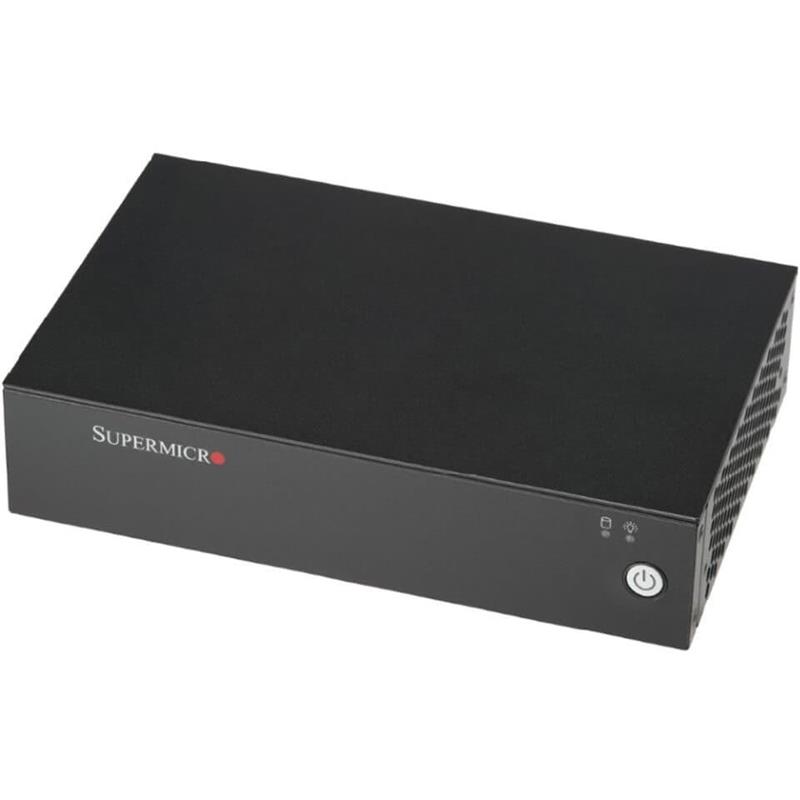

| Product SKUs | SYS-E102-13R-H |
| Motherboard |
| Motherboard | Super X13SRN-H-WOHS |
| Processor |
| CPU | Single processor(s) |
| Core Count | 14C/28T; 24MB Cache |
| Note | Supports up to 28W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 2 DIMM slots |
| Max Memory (2DPC): 64GB 4800MT/s non-ECC DDR5 SO-DIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) |
| Chipset | Intel® System on Chip |
| Network Connectivity | View AOC Options |
| 2 RJ45 2.5GbE with Intel® I226-IT |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 2 RJ45 2.5 GbE LAN port(s) |
| USB | 2 USB 3.2 Gen2 Type-A port(s) (Rear) |
| 2 USB 3.2 Gen2 Type-C port(s) (Rear) |
| Video | 1 HDMI 2.0b port(s) (Rear) |
| 1 HDMI 1.4b port(s) (Rear) |
| 2 DisplayPort over USB Type-C 1.4 port(s) (Rear) |
| System BIOS |
| BIOS Type | AMIUEFI |
| BIOS Features | ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8B |
| PCI F/W 3.3 |
| Management |
| Software | KVM with dedicated LAN |
| Redfish API |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Supermicro Update Manager (SUM) |
| Supermicro Server Manager (SSM) |
| Super Diagnostics Offline |
| Power configurations | ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| Chassis |
| Form Factor | Fan-based Embedded |
| Model | CSE-E102TF2 |
| Dimensions and Weight |
| Height | 1.72" (44 mm) |
| Width | 7.48" (190 mm) |
| Depth | 4.72" (120 mm) |
| Package | 5.12" (H) x 11.81" (W) x 11.02" (D) |
| Weight | Gross Weight: 4.5 lbs (2 kg) |
| Net Weight: 2.65 lbs (1.2 kg) |
| Palletized Packing (W x H x L) | 46.5" (1180 mm) x 39.4" (1000 mm) x 37.4" (950 mm) |
| Available Color | Black |
| Front Panel |
| LED | Power status |
| HDD Status |
| Buttons | Power On/Off |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 1 bay(s) 1 internal fixed 2.5" SATA drive bay(s) |
| 1 internal fixed 2.5" SATA drive bay(s) |
| M.2 | View M.2 Options |
| 1 M.2 NVMe slot(s) (M-key 2280) |
| System Cooling |
| Fans | 1x 4-PIN PWM 40x40x15mm Fan(s) |
| Power Supply |
| AC Input | 84W: 100-240Vac / 47-63Hz |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
