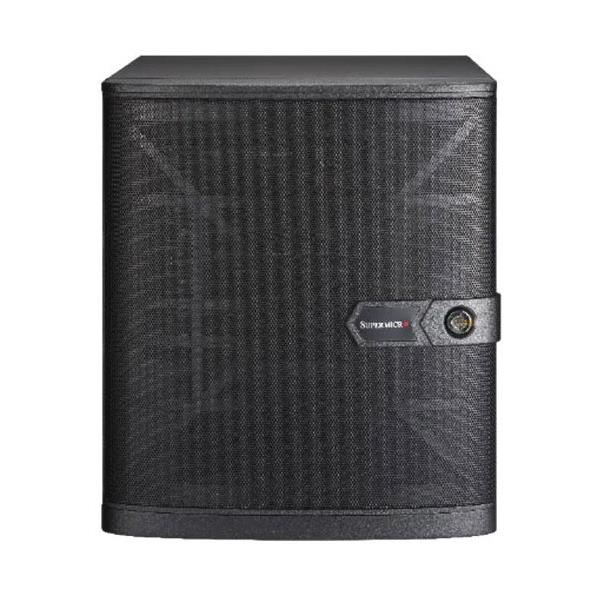

Supermicro SYS-521R-T UP Workstation Compact Mini-Tower Single Intel Xeon E-2400 Series and Intel Pentium Processors 12th Generation
• Entry-Level Micro-Server
• Designed for Small and Medium-sized Businesses Applications
Barebone Compact Mini-Tower SuperServer, Supports Single Socket LGA-1700 (Socket V0), Supporting Intel Xeon E-2400 Series Processors and Intel Pentium Processors 12th Generation, Intel C262, Up to 64GB in 2 DIMM slots, UDIMM, On-Board: SATA3 (6Gbps), 4x 3.5in Hot-swap SATA Drive Bays, M.2: 1x PCIe 4.0 x4 (2280 only), Network Connectivity: 2x 1GbE BaseT with Intel i210, 1x 1GbE BaseT with Dedicated IPMI, 350W Power Supply - (CSE-721TQ-350B2 + X13SCL-IF) - SYS-521R-T
1. PCIe 5.0 x 16 slot
2. Dual LAN ports, 1 GbE and dedicated IPMI
3. 12cm PWM quiet exhaust fan and optional 12cm front intake fan
4. 350W 80PLUS Gold Power Supply
5. Up to 2 U.2 NVMe drives support (2024H2 version only)
Extra Specifications for Supermicro SYS-521R-T UP Workstation Compact Mini-Tower Single Intel Xeon E-2400 Series and Intel Pentium Processors 12th Generation
| System Memory | ||
| Memory Voltage | 1.1V | |
| Memory | View Memory Options | |
| Slot Count: 2 DIMM slots | ||
| Max Memory (1DPC): Up to 64GB 4800MT/s ECC DDR5 UDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® C262 | |
| Network Connectivity | View AOC Options | |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) | ||
| 2 RJ45 1GbE with Intel® I210 | ||
| SATA | SATA (6Gbps) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Supermicro SuperDoctor® 5 (SD5) | ||
| Power configurations | ACPI 6.0 Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Supply Chain Security: Remote Attestation | |
| Runtime BMC Protections | ||
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Network activity LEDs | ||
| Port | USB 3.0 Port(s) | |
| Product SKUs | ||
| Product SKUs | SYS-521R-T | |
| Motherboard | ||
| Motherboard | Super X13SCL-IF | |
| Processor | ||
| CPU | Single processor(s) | |
| Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors | ||
| Core Count | Up to 8C/16T | |
| Note | Supports up to 80W TDP CPUs (Air Cooled) | |
| Input / Output | ||
| USB | 2 USB 2.0 Type-A ports(rear) | |
| 2 USB 3.2 Gen1 Type-A ports(rear) | ||
| 2 USB 3.2 Gen1 Type-A ports(front) | ||
| Video | 1 VGA port | |
| Chassis | ||
| Form Factor | Compact Mini-Tower | |
| Model | CSE-721TQ-350B2 | |
| Dimensions and Weight | ||
| Height | 9.45" (240.03 mm) | |
| Width | 8.27" (210.06 mm) | |
| Depth | 11" (279.4 mm) | |
| Package | 13.78" (H) x 12.4" (W) x 16.14" (D) | |
| Weight | Gross Weight: 15 lbs (6.8 kg) | |
| Net Weight: 13.5 lbs (6.12 kg) | ||
| Available Color | Black | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 4 bays 4 front hot-swap 3.5" PCIe 4.0 x4 NVMe*/SAS*/SATA drive bays | ||
| 4 front hot-swap 3.5" PCIe 4.0 x4 NVMe*/SAS*/SATA drive bays | ||
| (*NVMe/SAS support may require additional storage controller and/or cables) | ||
| M.2 | View M.2 Options | |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) | ||
| Peripheral Bays | 1 bay | |
| System Cooling | ||
| Fans | 1x 120mm Fan(s) | |
| Operating Environment | ||
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SCL-IF | 1 | Super X13SCL-IF Motherboard | |
| Motherboard / Chassis | CSE-721TQ-350B2 | 1 | Compact Mini-Tower Chassis | |
| Backplane | BPN-NVME5-733N-S4 | 1 | 4-port backplane support up to 4x3.5" SATA3/SAS4/NVME5 S | |
| Cable | CBL-SAST-1269F-100 | 1 | Slimline x4 (RA) to Slimline x4 (STR),70CM,100 OHM,RoHS | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| *Power Supply | PWS-353-1H | 1 | 1U Flex ATX 350W Multi-output Gold power supply | |
| *Fan | FAN-0124L4 | 1 | 12 CM x12 CM fan | |
| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
