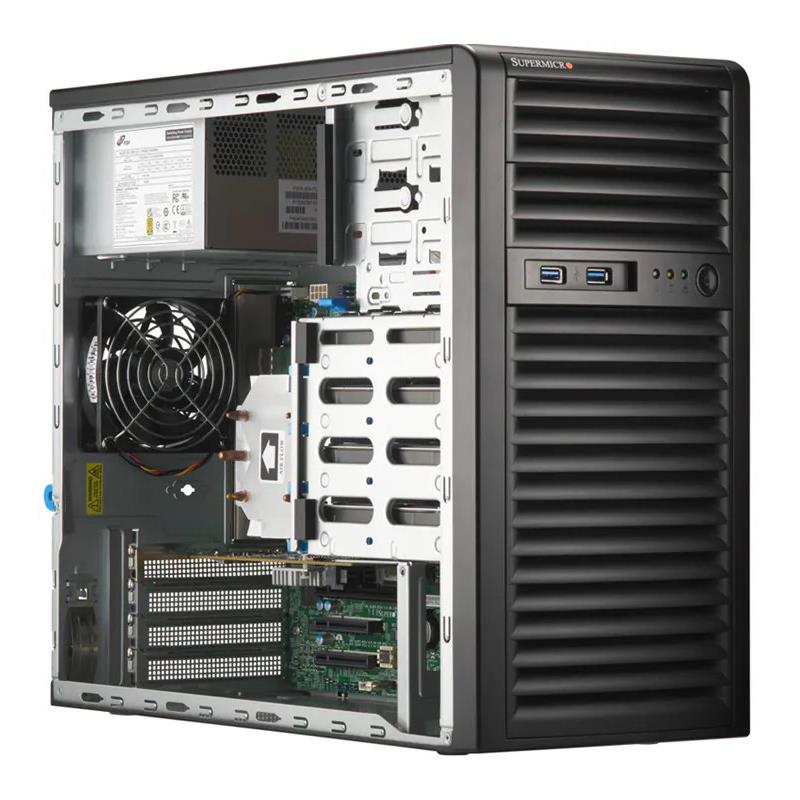

Supermicro SYS-531R-I UP Workstation Mini-Tower Single Intel Xeon E-2400 Series and Intel Pentium Processors 12th Generation
• Storage, application and centralized data backup system
Applications
• IPMI for remote management
• Entry-Level Server for SOHO and SMB
Barebone Mini-tower SuperWorkstation, Supports Single Socket LGA-1700 (Socket V0), Supporting Intel Xeon E-2400 Series Processors and Intel Pentium Processors 12th Generation, Intel C262, Up to 128GB in 4 DIMM slots, UDIMM, On-Board: SATA3 (6Gbps), 4x 3.5in SATA Drive Bays, M.2: 1x PCIe4.0 x4 (22110 / 2280), Network Connectivity: 2x 1GbE BaseT with Intel i210, 1x 1GbE BaseT with Dedicated IPMI, 400W Power Supply - (CSE-731I-404B + X13SCL-F) -SYS-531R-I
1. Supports Intel® Intel® Xeon® 6300-series/E-2400 Series Processor
2. PCIe 5.0 Support
3. Dual LAN ports, GbE and dedicated IPMI LAN port
4. 9cm PWM quiet exhaust fan and optional front intake fan
5. 400W 80PLUS Gold Power Supply
Extra Specifications for Supermicro SYS-531R-I UP Workstation Mini-Tower Single Intel Xeon E-2400 Series and Intel Pentium Processors 12th Generation
| GPU | ||
| Max GPU Count | Up to 1 double-width or 1 single-width GPU | |
| System Memory | ||
| Memory Voltage | 1.1V | |
| Memory | View Memory Options | |
| Slot Count: 4 DIMM slots | ||
| Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® C262 | |
| Network Connectivity | View AOC Options | |
| 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) | ||
| 2 RJ45 1GbE with Intel® I210 | ||
| SATA | SATA (6Gbps) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Supermicro Thin-Agent Service (TAS) | |
| Supermicro Update Manager (SUM) | ||
| Supermicro Server Manager (SSM) | ||
| SuperCloud Composer® | ||
| Super Diagnostics Offline (SDO) | ||
| SuperServer Automation Assistant (SAA) New! | ||
| Supermicro SuperDoctor® 5 (SD5) | ||
| Power configurations | ACPI 6.0 Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | ||
| Features | Supply Chain Security: Remote Attestation | |
| Runtime BMC Protections | ||
| PC Health Monitoring | ||
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LED | HDD activity LED | |
| Power LED | ||
| System Overheat LED | ||
| Network activity LEDs | ||
| Port | USB 3.0 Port(s) | |
| Product SKUs | ||
| Product SKUs | SYS-531R-I | |
| Motherboard | ||
| Motherboard | Super X13SCL-F | |
| Processor | ||
| CPU | Single processor(s) | |
| Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors | ||
| Core Count | Up to 8C/16T | |
| Note | Supports up to 95W TDP CPUs (Air Cooled) | |
| Input / Output | ||
| USB | 2 USB 2.0 Type-A ports(rear) | |
| 2 USB 3.2 Gen1 Type-A ports(rear) | ||
| 2 USB 3.2 Gen1 Type-A ports(front) | ||
| Video | 1 VGA port | |
| Chassis | ||
| Form Factor | mini-tower | |
| Model | CSE-731I-404B | |
| Dimensions and Weight | ||
| Height | 14.25" (362 mm) | |
| Width | 7.25" (184 mm) | |
| Depth | 16.75" (425 mm) | |
| Package | 20" (H) x 11" (W) x 21" (D) | |
| Weight | Gross Weight: 20 lbs (9.07 kg) | |
| Net Weight: 16 lbs (7.26 kg) | ||
| Available Color | Black | |
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | View Drive Options | |
| Default: Total 4 bays 4 internal fixed 3.5" SATA drive bays | ||
| 4 internal fixed 3.5" SATA drive bays | ||
| M.2 | View M.2 Options | |
| 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110) | ||
| Peripheral Bays | 2 5.25" bays | |
| System Cooling | ||
| Fans | 1x 90mm Fan(s) | |
| Operating Environment | ||
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13SCL-F | 1 | Super X13SCL-F Motherboard | |
| Motherboard / Chassis | CSE-731I-404B | 1 | mini-tower Chassis | |
| Cable | CBL-0044L | 4 | 7pin SATA (STR to STR), 57.5cm, Flat, PBF | |
| Cable | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |
| Cable | CBL-0084L | 1 | 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE | |
| Cable | CBL-CUSB-1007 | 1 | 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Parts | MCP-110-00033-0N | 2 | Binding Head Screw (with teeth) #632*4.5L | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-C0156L | 1 | M.2 Passive Heat Sink for Both 2280 & 22110 M.2 Type | |
| *Power Supply | PWS-404-PQ | 1 | PS2 400W Multi-output High Efficiency 80PLUS Gold Power | |
| *Fan | FAN-0108L4 | 1 | 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731 | |
| *Drive Tray(s) | MCP-220-73101-0B | 4 | SC731 Tool-less Internal 3.5inch HDD Tray |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-SAST-0624 • | 1 | 70cm SATA Cable S-S 30AWG | |||
| Cable | CBL-0082L • | 1 | Y SPLIT SATA POWER ADAPTER, PB FREE | |||
| DVD Kit | DVM-TEAC-DVDRW24-HBT | $ 99.00 | 1 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L) | ||
| Fan | FAN-0113L4 | $ 33.50 | 1 | 80X25MM 2.8K RPM 4-PIN PWM Fan, Optional Front Fan | ||
| HDD Converter | MCP-220-73102-0N • | 1 | 2.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842 | |||
| Heatsink | SNK-P0086AP4 • | 1 | High Performance CPU Heatsink for LGA1700 | |||
| Mobile Rack | CSE-M14TQC | $ 151.50 | 1 | SAS3/SATA mobile rack for 4x 2.5" drives |
