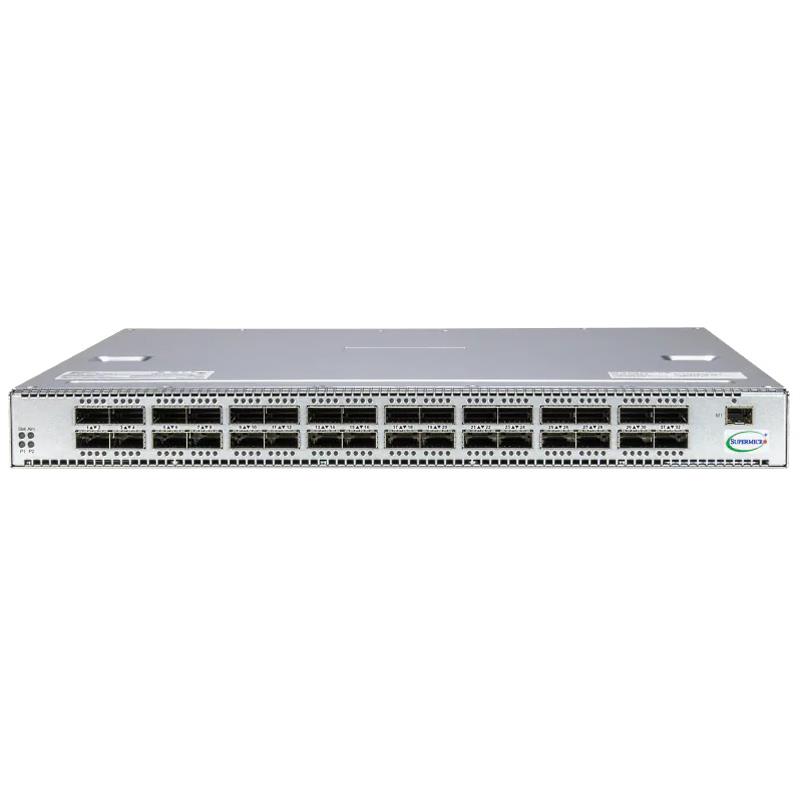

Supermicro SSE-C4632SRB 100GbE Open Networking Aggregation Switch Offers 32x QSFP28 Ports Reverse Airflow (Back to Front)
Best suitable for data center leaf and spine deployments
32 port 100Gbps switch designed to provide high performance
Extremely compact 1RU with proven layer 2 and layer 3 features
Pre-loaded with the Broadcom Enterprise Distribution SONiC OS
1RU Mountable 100GbE Aggregation Switch, Operating System: SONiC OS, Offers 32x QSFP28 Ports, 1x RJ45 Serial Console, 1x RJ45 100/1000BASE-T Management, 1x USB Type A Storage, Layer 2 and Layer 3 100G, Ethernet Switch, 2x AC Redundant Power Supplies and FANs That Are FRU Capable, Onboard CPU Engine: INTEL Atom C1.6Ghz dual-core CPU, 128GB DDR4 DRAM with ECC, 64GB SSD, Reverse Airflow (Back to Front) RoHS compliant - Included: Rail kit
High-Performance Open Networking 100GbE Aggregation Switch
Supermicro SSE-C4632 is the new generation 32 port 100Gbps switch designed to provide high performance and non-blocking with 6.4Tbps Switching capacity, best suitable for data center leaf and spine deployments. The SSE-C4632 is an extremely compact 1RU form factor with proven layer 2 and layer 3 features.
The Enterprise SONiC distribution offers benefits such as high performance and simplicity based on industry-leading merchant silicon and standards-based IP CLOS architecture. It also provides agility based on a flexible management framework with programmatic APIs and an extensible, container-based architecture.
SSE-C4632 can operate at variety of speeds such as 32x100Gbps QSFP28 or 32x40G QSFP+ or by using the breakout cables 64x50G QSFP56 or 128x25Gbps SFP28 or 10G SFP+. Switch comes with dual and redundant power supplies and FANs that are FRU capable. The included rail kit facilitates rack-mounting installations.
Pre-loaded with the Broadcom Enterprise Distribution SONiC OS, the SSE-C4632 is ready with extensive networking features plus hardware acceleration of routing and switching functions. And the software support is included in the switch standard warranty at no additional cost.
Key Switch Specs / Advantages
Form Factor: 1 RU
Capacity: 6.4Tbps
Interfaces Speeds: 10, 25, 40, 50, 100GbE
Supported Configurations: 32x100GbE or 40GbE, 64x50GbE, 128x25/10GbE
Operating System: Broadcom Advanced Enterprise SONiC OS
2MB memory packet buffer
Extra Specifications for Supermicro SSE-C4632SRB 100GbE Open Networking Aggregation Switch Offers 32x QSFP28 Ports Reverse Airflow (Back to Front)
| Main Specifications | ||
| Device Type | Switch - 32 ports - L3 - managed | |
| Form Factor | 1RU, Mountable in either 19in or 21in racks | |
| Capacity | 6.4Tbps | |
| Dimensions (WxDxH) | Dimensions: (WxDxH) 434 x 521 x 43.8 mm (17.1 x 20.52 x 1.72 inches) | |
| Weight | 10kg | |
| Operating System | Broadcom Advanced Enterprise SONiC OS | |
| Power (W) | 800W Maximum Power (with Pluggable Optic) | |
| Processor | ||
| Onboard CPU Engine | INTEL Atom C1.6Ghz dual-core CPU | |
| 128GB DDR4 DRAM with ECC | ||
| 64GB SSD | ||
| Expansion / Connectivity | ||
| Expansion / Connectivity | 32x QSFP28 Ports | |
| 1x RJ45 Serial Console | ||
| 1x RJ45 100/1000BASE-T Management | ||
| 1x USB Type A Storage | ||
| Networking | ||
| Layer 2 Features | VLAN Auto-state, Interface Hold-Down,LACP Graceful Shutdown, link Tracking, L2 MC-LAG, L2 VXLAN, L2 LVTEP, LACP Fast Rate and LACP Fallback, Static LAG, LLDP, UDLD, MC-LAG Fallback, MC-LAG Graceful Shutdown, xSTP over MC-LAG, PVST and RPVST+, PVST and RPVST+ over MC-LAG, DHCP snooping, VLAN stacking (QinQ), Port Channel Min-Links configuration enhancement | |
| Layer 3 Features | DHCP Relay Enhancements, DHCP Relay over VXLAN Overlay Interfaces, DHCP Relay Source Interface Selection (e.g. loopback), DHCP Relay over IPv6 Link-Local Interfaces with RFC5549 Routes, DHCP Relay Hop Count Configuration, DHCP Relay Over IPv4 Unnumbered Interfaces, DHCP Relay Option 82, Sub Option 151 VRF Name/ID Option, DHCP Relay Option 82, Sub Option 5 Link-Selection Option RFC3527, Support for Circuit-Id Formats, DHCP Relay Circuit-Id Option, DHCP Relay and DHCP snooping support on the same VLAN | |
| Router Advertisement KLISH/REST/gNMI Support, CLI Commands for RA Retransmission Interval, RADv Disable, RFE-8106 | ||
| Support for 4K L3 VLAN Interfaces, Dynamic BGP Neighbor, IP Fabric over IPv6 underlay RFC5549, IP Helper, L3 MC-LAG, L3 VXLAN, L3 LVTEP, Routing Subinterface,Advertise PIP for both ACT-ACT and ACT-STBY on the Same Leaf Pair, Route Leaking across VRFs including Management VRF, BGP Docker Warm Restart, Avoid Netlink for Handling IPv6 Link-Local Address, BFD Optimizations to Support 5x100msec Aggressive Timers in SW, IP SLA (ICMP and TCP tracker), IPv4 Unnumbered Interfaces, RPVST+ over MC-LAG, RPVST+ Scaling to 3500 VLAN Ports, Symmetric Hashing, VXLAN over SVI Interface, BGP for EVPN (with MLAG), BFD IS-CLIs, BFD with VRF, VRF support for syslog, VRF support for SSH.in, VRRPv3, VRRP/VRRPv3 over VRF, Management VRF Hardening, NAT, OSPFv2, Multi Site Data Center Interconnect (DCI), RIB/FIB Consistency Checker, Next Hop Group (NHG) Support, RIF Counters for L3 Interfaces, BFD Profile, 4K L3 VLAN Interface Scale for SAG and Unique-IP Cases, Nexthop resolution using default route, MC-LAG Peer Gateway, 1 Million Route Scale, Route Updates Performance Improvements, Drop Neighbor Entry to Protect CPU from Unknown IP Packets Hitting the CPU, CPU Offload for Neighbor Suppression, CPU Offload for Slowpath ARP Flooding, OSFPv2 GR | ||
| ACL and Flow-Based Services | PBR Enhancements for Service Chaining, ACL-based CoPP, ACL DSCP Map/Remarking, ACL Rate Limiting, Control Plane ACL, Policy-based Routing (IPv4 and IPv6), ACL-based Packet Replication, ACL Consistency Checker | |
| Manageability | Industry Standard CLI (IS-CLI), REST and gNMI Interfaces via OpenConfig YANG (OC-YANG), Role-Based Access Control (RBAC), RBAC and HAMd Enhancements, SNMP Configuration Traps and OIDs, Configuration Services – Chef for EVPN, gNMI Subscription Support for Limited YANG Paths (OnChange, Interval, Once, Poll, Target defined), Bulking support in both REST(YANG patch) and gNMI, Query parameter for REST and filtering support for gNMI, Scalar encoding support for gNMI, Support to Read Service Tag via SNMP, SNMP Trap Enablement on Interface Instead of Global | |
| Multicast Features / Enhancements | L3 Multicast with PIM operates on L3 interfaces only, IGMP, IGMP Snooping (v1, v2, v3) (with MLAG), IPv4 PIM-SSM Support | |
| Debuggability / Serviceability features | In-memory Debug Logging, Audit Logging and Syslogs, Command to Return Interfaces to the Default Configuration, Port Mirroring on Port Channel and VLAN | |
| QoS | RoCE V2 Support, DSCP Marking Preservation for VXLAN, QoS Map Support for Remarking and SVI, BUM Storm Control, Port and Priority Shaping | |
| Telemetry and Instrumentation | sFlow on Management VRF, Inband Flow Analyzer (IFA) 2.0, Drop Monitor, Tail Stamping, BST – Watermarks, Thresholds, and Snapshots, Linux PTP (KNETSync) | |
| Security Features | ||
| Security Features | RADIUS and TACACS, RADIUS/TACACS Password Obfuscation, NTP Server and NTP Authentication, NTP Prefer Option, LDAP Integration, AAA Authorization support with TACACS+ | |
| Expansion Options | ||
| Scalability | L3 VLAN Scale to 4K (for TD3-X7 based Platforms), Host Table Resource Reservation for Local Hosts | |
| Miscellaneous | ||
| Features | AC Power Supply with Reverse Airflow (back to front) | |
| 2x Redundant, Hot Swappable PSUs | ||
| Hot Swappable 3+1 redundant Fan Modules | ||
| Environmental Parameters | ||
| Operating Temperature | Operating 0°C to 45°C (32°F to 113°F) | |
| Humidity Operating: 0% to 95% RH | ||
