- Supermicro AOC-MG-B2 1GbE Broadcom BCM5720 Controller Card Super I/O Module (SIOM) Dual RJ45 Connectors

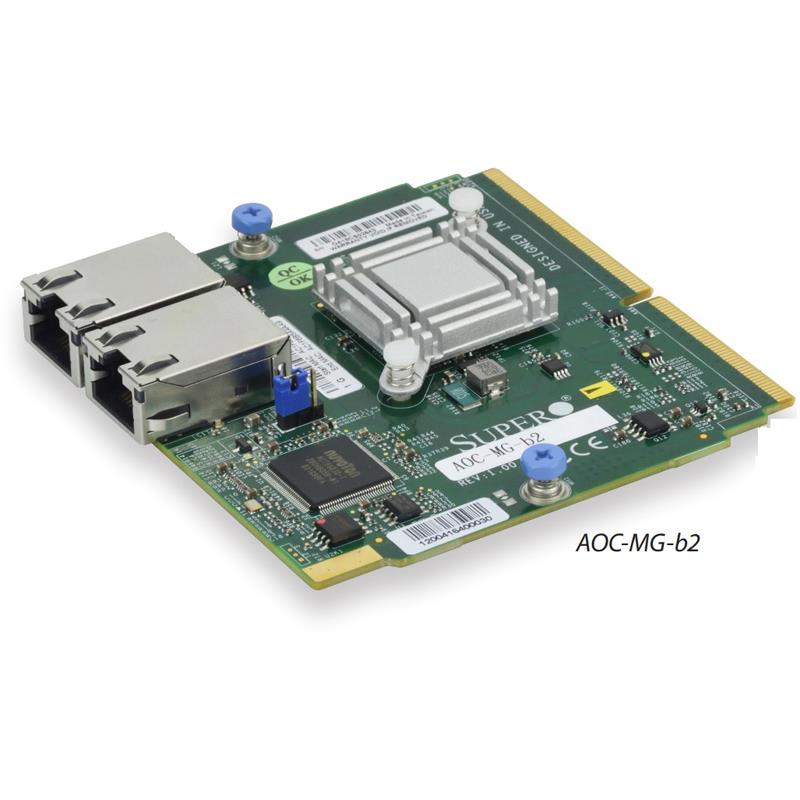

Supermicro AOC-MG-B2 1GbE Broadcom BCM5720 Controller Card Super I/O Module (SIOM) Dual RJ45 Connectors
Energy Efficient Ethernet
Optimized for Virtualization
Super I/O Module (SIOM) Form Factor
Broadcom BCM5720 dual-port 1Gbps controller
1GbE Ethernet Controller Card, Super I/O Module (SIOM) Form Factor, Based on the Broadcom BCM5720, Dual RJ45 Connectors, Designed For Supermicro Twin and SuperStorage Servers, RoHS Compliant 6/6 - (AOC-MG-B2-O)
Supermicro Super I/O Module (SIOM) with Broadcom NetXtreme Ethernet Controller
The Supermicro AOC-MG-b2 features Broadcoms field-proven dual-port NetXtreme BCM5720 Ethernet controller to deliver lower power consumption and energy-efficient Ethernet (EEE). In small form factor SIOM, this adapter is supported in Supermicro Twin and SuperStorage servers. The Supermicro AOC-MG-b2 provides a reliable, high-performance, energy-efficient 1 GbE connectivity solution.
General
Super I/O Module (SIOM) Form Factor
Broadcom BCM5720 dual-port 1Gbps controller
Dual RJ45 connectors
Key Features
Super I/O Module (SIOM) Form Factor
Broadcom BCM5720 1 GbE controller
Dual RJ45 Connectors
Energy Efficient Ethernet (EEE)
Optimized for Virtualization
Asset Management Features
Extra Specifications for Supermicro AOC-MG-B2 1GbE Broadcom BCM5720 Controller Card Super I/O Module (SIOM) Dual RJ45 Connectors
| Main Specifications | ||
| Device Type | Broadcom BCM5720 dual-port 1Gbps Controller | |
| Form Factor | Super I/O Module (SIOM) | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Connectivity | ||
| Connectors | Dual RJ45 Connectors | |
| Networking | ||
| Networking Features | Jumbo Frames (up to 9600-byte), Link Aggregation and automatic load-balancing, Wake-on-LAN support, Support for VMware NetQueue and Microsoft VMQ, MSI and MSI-X support, VLANs support with VLAN tagging, Energy Efficient Ethernet (EEE) | |
| Management Features | Network Controller Sideband Interface (NC-SI), Preboot eXecution Environment (PXE) support, iSCSI remote boot support, Asset Management Monitoring model, PCB Rev., Serial number, MAC addresses with Supermicro management software. | |
| Specifications | ||
| Offload Features | TCP, UDP and IP checksum offloads, TCP segmentation Offload (TSO), Large Receive Offload (LSO), Receive Side Scaling (RSS), Transmit Side Scaling (TSS) | |
| Software / System Requirements | ||
| OS Support | Windows, Linux RedHat, Linux SUSE, VMware | |
| Power | ||
| Power Consumption | Maximum 4.2W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0°C to 55°C (32°F to 131°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Storage temperature: -40°C to 65°C (-40°F to 149°F) | ||
| Supported Platforms | ||
| Supported Platforms | Supermicro motherboards with Super I/O Module slot | |
| Supermicro server systems with Super I/O Module slot | ||
| AOC-MG-b2 for Storage Systems. AOC-MG-b2M for Twin Systems | ||
| Miscellaneous | ||
| Environmental Compliance | RoHS Compliant 6/6 | |
| Bracket Included | BKT-0086L: 2-port Gigabit Ethernet Adapter with a swappable bracket for 2U+ chassis (Storage Servers) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
