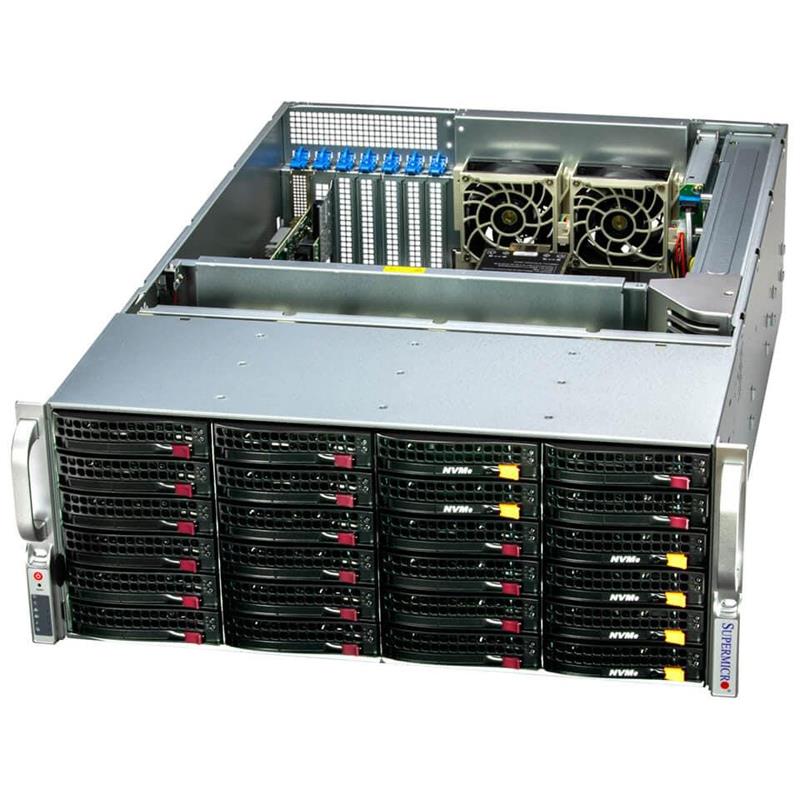

Supermicro SSG-641E-E1CR24H Storage DP 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

Supermicro SSG-641E-E1CR24H Storage DP 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks

Barebone 4U Rackmount SuperServer, Supports Dual Socket E (LGA-4677) supporting Intel Xeon Scalable Processors 5th and 4th Generation, Supports up to 270W TDP CPUs (Air Cooled), Intel C741, Up to 4TB in 16 DIMM slots, RDIMM, On-Board: Controller SATA3 (6Gbps) With RAID, 24x hot-swap 3.5in SAS/SATA Bays and 2 Rear Hot-swap 2.5in SATA Drive Bays, 2x M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110), Network Connectivity: 2 RJ45 10 GbE LAN port, 1x IPMI LAN Port, 1200W Power Supply - (CSE-846BTS-R1K23BP5 + X13DEI-T) - SSG-641E-E1CR24H

1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
3. 2x 10 GbE onboard via Broadcom BCM57416 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
4. 24x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
6. 1200W Redundant Power Supplies Titanium Level (96%)
7. HW RAID support via Broadcom® 3908

Extra Specifications for Supermicro SSG-641E-E1CR24H Storage DP 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

Product SKUs
Product SKUs	SSG-641E-E1CR24H
Motherboard
Motherboard	Super X13DEI-T
Processor
CPU	Dual Socket E (LGA-4677)
	5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory	View Memory Options
	Slot Count: 16 DIMM slots
	Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	View AOC Options
	2 RJ45 10GbE with Broadcom® BCM57416
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe	View NVMe Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
	2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1)
USB	4 USB 3.0 port(s) (rear)
Video	1 VGA port(s) (Rear)
Serial	1 COM port(s) (Rear)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	KVM with dedicated LAN
	Redfish API
	SuperDoctor® 5
	IPMI 2.0
	Supermicro Power Manager (SPM)
	Supermicro Update Manager (SUM)
	Supermicro Server Manager (SSM)
	Super Diagnostics Offline
Power configurations	Power-on mode for AC power recovery
	ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware
	Secure Boot
	Secure Firmware Updates
	Automatic Firmware Recovery
	Supply Chain Security: Remote Attestation
	Runtime BMC Protections
	System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
	7+1 Phase-switching voltage regulator
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
Chassis
Form Factor	4U Rackmount
Model	CSE-846BTS-R1K23BP5
Dimensions and Weight
Height	7"
Width	17.2"
Depth	26"
Package	15" (H) x 27" (W) x 39" (D)
Weight	Gross Weight: 92 lbs (41.7 kg)
	Net Weight: 55 lbs (24.9 kg)
Available Color	Silver
Front Panel
LED	Power status
	HDD activity
	Network activity
	System information (overheat/UID)
Buttons	Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration	View Drive Options
	Default: Total 26 bay(s) 24 front hot-swap 3.5" SAS/SATA drive bay(s) 2 rear hot-swap 2.5" SATA drive bay(s)
	24 front hot-swap 3.5" SAS/SATA drive bay(s)
	2 rear hot-swap 2.5" SATA drive bay(s)
	Option A: Total 6 bay(s) 6 front hot-swap 3.5" NVMe* drive bay(s)
	6 front hot-swap 3.5" NVMe* drive bay(s)
	(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	View M.2 Options
	2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key 2280/22110)
System Cooling
Fans	5 Heavy Duty 8cm Fan(s)
Power Supply
Dimension (WxHxL)	76 x 40 x 336 mm
+12V	Max: 83A / Min: 0A (100Vac-127Vac)
	Max: 100A / Min: 0A (200Vac-240Vac)
	Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
AC Input	1000W: 100-127Vac / 50-60Hz
	1200W: 200-240Vac / 50-60Hz
	1200W: 200-240Vdc / 50-60Hz (for CCC only)
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 90% (Non-Condensing)
	Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Name	Part Number	Qty.	Description
	Motherboard / Chassis	MBD-X13DEI-T	1	Super X13DEI-T Motherboard
Motherboard / Chassis	CSE-846BTS-R1K23BP5	1	4U Chassis
Add-on Card / Module	AOC-S3908L-H8IR-P	1	8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp,RoHS
	Add-on Card / Module	AOM-SAS3-8I8E	1	8-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket
Backplane	BPN-SAS3-846EL1-N8-1	1	4U 24-Port LFF Expander Backplane support up to 16 SAS3/SATA3 and 8 SAS3/SATA3/NVMe Gen 4 Storage Media
Cable	CBL-CDAT-0728	1	4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
	Cable	CBL-PWEX-0645	1	Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
	Cable	CBL-SAST-1281-100	1	Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
	Cable	CBL-SAST-1285-100	2	Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
	Cable	CBL-0071L	1	ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
	Cable	CBL-0160L	2	US POWER CORD 16AWG, PB FREE
	Cable	CBL-PWEX-1078	5	PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
	Parts	MCP-260-00042-3N	1	STD I/O shield for X13 server MB with venting holes
	Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management
	Heatsink / Retention	SNK-P0088P	2	2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
	*Power Supply	PWS-1K23A-1R	2	AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
*Power Supply	MCP-290-84604-0N	1	SC846 PDB Cover
*Power Distributor	PDB-PT846-H2824	1	4U support redundant powers 1.6KW output Power Distribute Bo
*Fan	FAN-0166L4-2	3	80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SYS-740A-T, R
	*Fan	FAN-0212L4	2	80x80x32 mm, 9.7K RPM Rear Exhaust Fan for SC836B and SC846B
*Front Panel	FPB-TB826-T	1	Chassis transfer board for SC826
	*Drive Tray(s)	MCP-220-00075-0B	24	Black gen 5.5 hot-swap 3.5" HDD tray
*Rear Window	MCP-240-84604-0N	1	X12 846B rear window support 2 X 2.5"HDD and PCIe holder
	*Rail Set	MCP-290-00057-0N	1 set	Rail set, quick/quick, default for 4U 17.2" W
	*Rail Set	MCP-410-00007-0N	1	Rail screw bag
	*Air Shroud	MCP-310-49003-0N	1	SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB

Note:

• Parts with * are inside the chassis

• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Name	Part Number	Price	Add to Cart	Qty.	Description
Cable - for NVMe in main drive bay	CBL-MCIO-1260M5 •			3	MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
Cable Management Arm	MCP-120-82503-0N •			1	Cable Arm Adapter
Cable Management Arm	MCP-290-00073-0N •			1	Supermicro Cable Management Arm
Converter Tray	MCP-220-00043-0N •			1	2.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
Converter Tray - orange NVMe tab	MCP-220-00138-0B •			1	Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
Network Cards	AOC-S25G-b2S-O			1	Std LP 2-port 25G SFP28, Broadcom BCM57414
Network Cards	AOC-S25G-i2S-O			1	Std. Low Profile 25G dual port SFP28, based on Intel XXV710
Network Cards	AOC-S25G-M2S-O •			1	Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN
Network Cards	AOC-STG-b2T-O			1	Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
Network Cards	AOC-STGS-i2T-O			1	Std LP 2-port 10G RJ45, Intel X550
	Power Cord	CBL-PWCD-0300-IS	$ 20.00		1	PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
	Power Cord	CBL-PWCD-0579-1	$ 23.00		1	Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
	Power Cord	CBL-PWCD-0579	$ 23.00		1	Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
	Supercap	BTR-CVPM05	$ 207.50		1	Cachevault supercap for storage controller
	Supercap	MCP-240-00203-0N	$ 26.50		1	PCIe plastic battery holder with FH/LP-bracket
TPM	AOM-TPM-9670V-O •			1	TPM 2.0, vertical form factor, provisioned for server
TPM	AOM-TPM-9671V-O			1	TPM 1.2, vertical form factor, provisioned for server
	VROC	AOC-VROCSTNMOD	$ 176.00		1	Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS
VROC	AOC-VROCPREMOD •			1	Intel VROC Premium, RAID0,1,5,10,HF,RoHS

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
