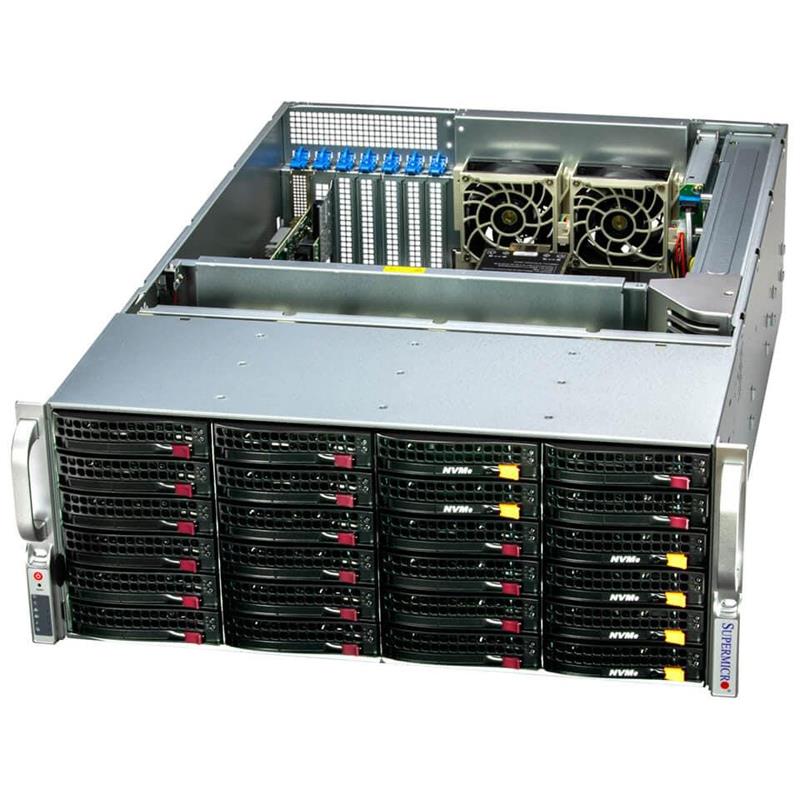

Supermicro SSG-641E-E1CR24L Storage 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

Supermicro SSG-641E-E1CR24L Storage 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks

Barebone 4U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Supports up to 270W TDP CPUs (Air Cooled), Intel C741, Up to 4TB in 16 DIMM slots, RDIMM, On-Board: Controller SATA3 (6Gbps) With RAID, 24x 3.5in/2.5in Hot-swap SAS3/SATA3 drives, 2x Rear 2.5in SATA Slots, 2x NVMe M.2 (M-key 2280/22110), Network Connectivity: 2 RJ45 10 GbE LAN Ports (Broadcom BCM57416), 1 RJ45 1 GbE Dedicated IPMI LAN Port, 1200W Power Supply - (CSE-846BTS-R1K23BP5 + X13DEI-T) - SSG-641E-E1CR24L

$ 3,586.00$ 3,586.003586.0USD

$ 3,586.00

Option not available

    This combination does not exist.

    Add to Cart

    1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    2. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
    3. 2x 10 GbE onboard via Broadcom BCM57416 1x GbE Dedicated LAN for server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    4. 24x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2 (form factor: 2280 and 22110)
    5. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
    6. 1200W Redundant Power Supplies Titanium Level (96%)
    7. HBA Controller support via Broadcom® 3808

    Extra Specifications for Supermicro SSG-641E-E1CR24L Storage 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

    Product SKUs
    Product SKUsSSG-641E-E1CR24L
    Motherboard
    MotherboardSuper X13DEI-T
    Processor
    CPUDual Socket E (LGA-4677)
    5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    NoteSupports up to 270W TDP CPUs (Air Cooled)
    System Memory
    MemoryView Memory Options
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
    Memory Voltage1.1V
    On-Board Devices
    ChipsetIntel® C741
    Network ConnectivityView AOC Options
    2 RJ45 10GbE with Broadcom® BCM57416
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    NVMeView NVMe Options
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s)
    2 RJ45 10 GbE LAN port(s) (Broadcom® BCM57416) (IPMI shared on LAN port 1)
    USB4 USB 3.0 port(s) (rear)
    Video1 VGA port(s) (Rear)
    Serial1 COM port(s) (Rear)
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    Management
    SoftwareKVM with dedicated LAN
    Redfish API
    SuperDoctor® 5
    IPMI 2.0
    Supermicro Power Manager (SPM)
    Supermicro Update Manager (SUM)
    Supermicro Server Manager (SSM)
    Super Diagnostics Offline
    Power configurationsPower-on mode for AC power recovery
    ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    7+1 Phase-switching voltage regulator
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor4U Rackmount
    ModelCSE-846BTS-R1K23BP5
    Dimensions and Weight
    Height7"
    Width17.2"
    Depth26"
    Package15" (H) x 27" (W) x 39" (D)
    WeightGross Weight: 92 lbs (41.7 kg)
    Net Weight: 55 lbs (24.9 kg)
    Available ColorSilver
    Front Panel
    LEDPower status
    HDD activity
    Network activity
    System information (overheat/UID)
    ButtonsPower On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    Drive Bays ConfigurationView Drive Options
    24 front hot-swap 3.5" SAS/SATA drive bay(s)
    2 rear hot-swap 2.5" SATA drive bay(s)
    (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    Default: Total 26 bay(s) 2 rear hot-swap 2.5" SATA drive bay(s) 24 front hot-swap 3.5" SAS/SATA drive bay(s)
    Option A: Total 6 bay(s) 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s)
    6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bay(s)
    M.2View M.2 Options
    2 M.2 PCIe 4.0 x2 NVMe slot(s) (M-key 2280/22110)
    System Cooling
    Fans5 Heavy Duty 8cm Fan(s)
    Power Supply
    Dimension (WxHxL)76 x 40 x 336 mm
    +12VMax: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    5V SBMax: 4A / Min: 0A
    AC Input1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
    Output TypeBackplanes (gold finger)
    Operating Environment
    ROHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Relative Humidity: 8% to 90% (Non-Condensing)
    Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
    NamePart NumberQty.Description
    Motherboard / ChassisMBD-X13DEI-T1Super X13DEI-T Motherboard
    Motherboard / ChassisCSE-846BTS-R1K23BP514U Chassis
    Add-on Card / Module AOC-S3808L-L8IT-P18 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R
    Add-on Card / Module AOM-SAS3-8I8E18-port Mini SAS HD Int-to-Ext Cable Adapter w/FH Bracket
    Backplane BPN-SAS3-846EL1-N8-114U 24-Port LFF Expander Backplane support up to 16 SAS3/SATA3 and 8 SAS3/SATA3/NVMe Gen 4 Storage Media
    Cable CBL-CDAT-072814 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
    Cable CBL-PWEX-06451Big 4 Pin Male to Big 4 Pin Female, Power Extension 15cm
    Cable CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
    Cable CBL-SAST-1285-1002Slimline x4 (STR) to MiniSAS HD (STR) x4,85CM,100 OHM,R
    Cable CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable CBL-0160L2US POWER CORD 16AWG, PB FREE
    Cable CBL-PWEX-10785PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
    Parts MCP-260-00042-3N1STD I/O shield for X13 server MB with venting holes
    Software SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention SNK-P0088P22U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
    *Power Supply PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    *Power Supply MCP-290-84604-0N1SC846 PDB Cover
    *Power Distributor PDB-PT846-H282414U support redundant powers 1.6KW output Power Distribute Bo
    *Fan FAN-0166L4-2380x80x38 mm, 13.5K RPM, Middle Cooling Fan for SYS-740A-T, R
    *Fan FAN-0212L4280x80x32 mm, 9.7K RPM Rear Exhaust Fan for SC836B and SC846B
    *Front Panel FPB-TB826-T1Chassis transfer board for SC826
    *Drive Tray(s) MCP-220-00075-0B24Black gen 5.5 hot-swap 3.5" HDD tray
    *Rear Window MCP-240-84604-0N1X12 846B rear window support 2 X 2.5"HDD and PCIe holder
    *Rail Set MCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2" W
    *Rail Set MCP-410-00007-0N1Rail screw bag
    *Air Shroud MCP-310-49003-0N1SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
    Note:

    • Parts with * are inside the chassis

    • Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

    NamePart NumberPriceAdd to CartQty.Description
    Cable - for NVMe in main drive bayCBL-MCIO-1260M5 •3MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
    Cable Management ArmMCP-120-82503-0N •1Cable Arm Adapter
    Cable Management ArmMCP-290-00073-0N •1Supermicro Cable Management Arm
    Converter TrayMCP-220-00043-0N •12.5" HDD TRAY IN 4TH GENERATION 3.5" HOT SWAP TRAY
    Converter Tray - orange NVMe tabMCP-220-00138-0B •1Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
    Network CardsAOC-STGS-i2T-O1Std LP 2-port 10G RJ45, Intel X550
    Network CardsAOC-STG-b2T-O1Standard LP 2-port 10Gbase-T, Broadcom 57416,HF,RoHS
    Network CardsAOC-S25G-M2S-O •1Std LP 2-port 25G SFP28, Mellanox ConnectX-4 LX EN
    Network CardsAOC-S25G-i2S-O1Std. Low Profile 25G dual port SFP28, based on Intel XXV710
    Network CardsAOC-S25G-b2S-O1Std LP 2-port 25G SFP28, Broadcom BCM57414
    Power CordCBL-PWCD-0300-IS$ 20.001PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
    Power CordCBL-PWCD-0579$ 23.001Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    Power CordCBL-PWCD-0579-1$ 23.001Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
    TPMAOM-TPM-9670V-O •1TPM 2.0, vertical form factor, provisioned for server
    TPMAOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
    VROCAOC-VROCSTNMOD1Intel VROC HW key (RSTe) standard upgrade module,HF,RoHS
    VROCAOC-VROCPREMOD •1Intel VROC Premium, RAID0,1,5,10,HF,RoHS

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
