- Supermicro ARS-211M-NR MegaDC 2U Barebone Single Ampere and AmpereOne Processor

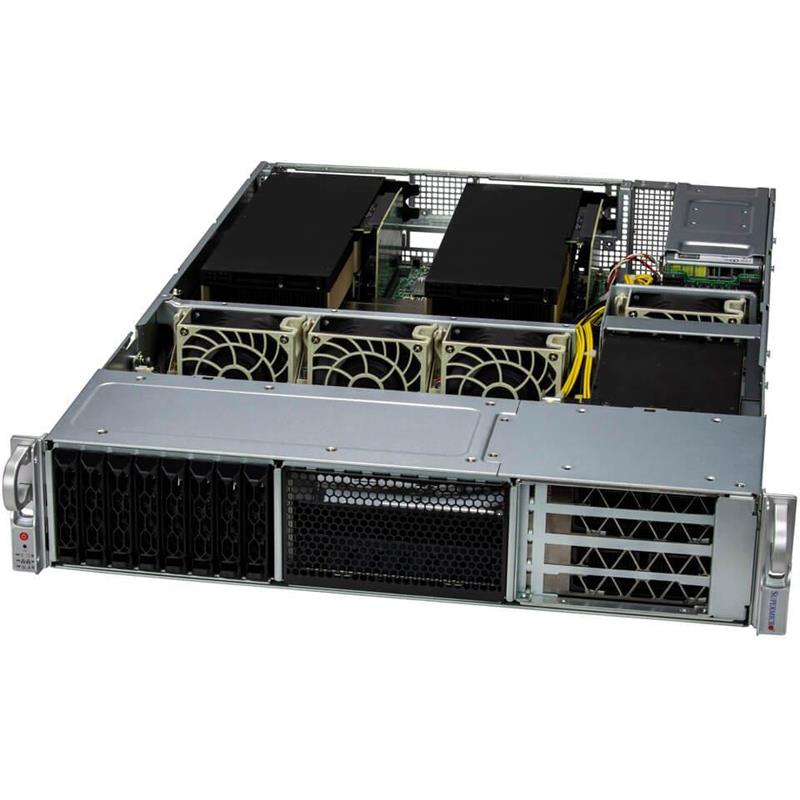

Supermicro ARS-211M-NR MegaDC 2U Barebone Single Ampere and AmpereOne Processor
• High Performance Computing
• Immersive Media
• Cloud Gaming / AICAN
• AI Inference / Training
• Dense-VDI
• Video-on-Demand
Barebone 2U Rackmount SuperServer, Support Single Socket 5964-Pin FCLGA, Supporting Ampere Processor and AmpereOne Processor (Up to 192-Core, Up to 3.0GHz) Up to 350W TDP. Up to 4TB in 16 DIMM slots, RDIMM/LRDIMM, Chipset: System on Chip, Max GPU Count: Up to 4 Double-width GPUs, Drive Bays Configuration: 4x Front Hot-swap 2.5in NVMe Drive Bay, 1x M.2 NVMe Slot (M-key 22110), Network Connectivity: 2x SFP28 25GbE LAN Port, 1x RJ45 1GBASE-T Dedicated IPMI LAN Port, 2000W Power Supply - (CSE-LB26TS-R2K08P + R13SPD) - ARS-211M-NR
1. Single Socket Ampere® AmpereOne® Processor (Up to 192 Cores; Up to 3.2Ghz) ; Up to 400W TDP
2. 16 DIMMs; Up to 4TB ECC Registered DDR5-5600/4800MHz RDIMM/LRDIMM
3. Supports up to 4 PCIe 5.0 x16 Double Wide GPU Cards (Up to 300W per GPU), 1 PCIe 5.0 x16 LP Slot, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
4. 2x 25Gb LAN SFP28 Ports via BCM57414 Controller w/NC-SI
5. 4x 2.5" U.2 NVMe Hot-Swap Drive Bays (Options available for up to 16 or 24 Drive Bays via a Modular Bay Design)
6. 2000W Redundant Titanium Level high-efficiency power supplies
7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
Extra Specifications for Supermicro ARS-211M-NR MegaDC 2U Barebone Single Ampere and AmpereOne Processor
| Product SKUs | ||
| Product SKUs | ARS-211M-NR | |
| Motherboard | ||

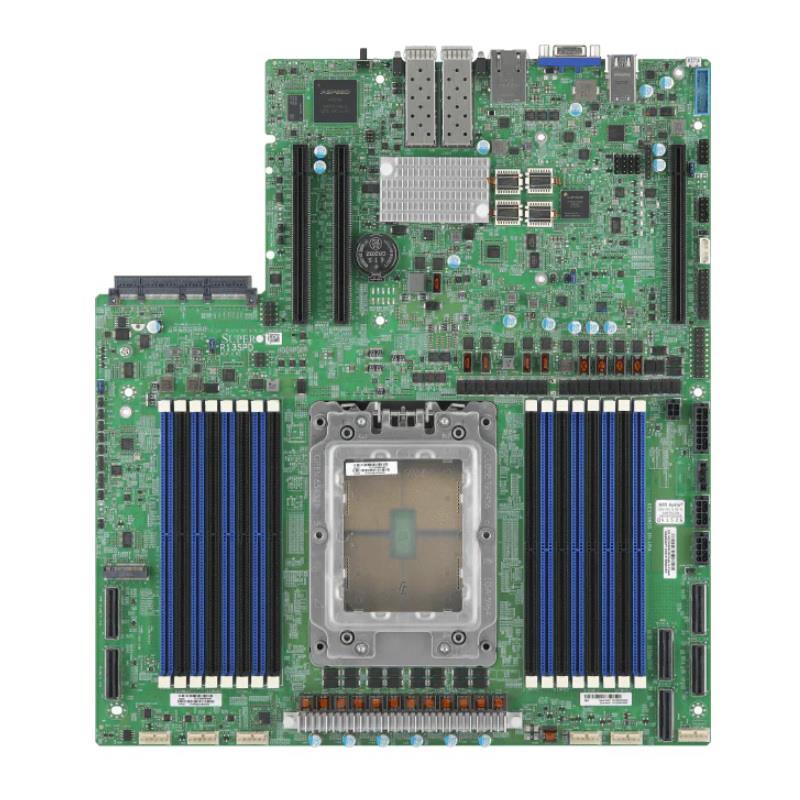

| Motherboard | Super R13SPD | |
| Processor | ||
| CPU | Single processor(s) | |
| Ampere® AmpereOne® processor | ||
| Note | Supports 200W - 350W TDP CPUs (Air Cooled) | |
| GPU | ||
| Max GPU Count | Up to 4 double-width GPU(s) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 16 DIMM slots | ||
| Max Memory (2DPC): Up to 4TB 4800MT/s ECC DDR5 RDIMM/LRDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| 2 SFP28 25GbE with Broadcom® | ||
| Input / Output | ||
| LAN | 2 SFP28 25 GbE LAN port(s) | |
| 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s) | ||
| USB | 2 USB 3.0 port(s) (rear) | |
| Video | 1 VGA port(s) | |
| Serial | 1 port(s) | |
| Management | ||
| Power configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-LB26TS-R2K08P | |
| Dimensions and Weight | ||
| Height | 3.5" (88.9 mm) | |
| Width | 17.2" (436.88 mm) | |
| Depth | 25.5" (647.7 mm) | |
| Package | 11" (H) x 26.5" (W) x 34" (D) | |
| Weight | Gross Weight: 59 lbs (26.76 kg) | |
| Net Weight: 35.3 lbs (16 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status | |
| HDD activity | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Buttons | UID button | |
| Power On/Off | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap 2.5" NVMe drive bay(s) | |
| 4 front hot-swap 2.5" NVMe drive bay(s) | ||
| M.2 | 1 M.2 NVMe slot(s) (M-key 22110) | |
| System Cooling | ||
| Fans | 4 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 73.5 x 40 x 203 mm | |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166A / Min: 0A (230Vac-240Vac) | ||
| 12V SB | Max: 3.5A | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 220-240Vac / 50-60Hz (for UL only) | ||
| 2000W: 230-240Vdc / 50-60Hz (for China only) | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-R13SPD | 1 | Super R13SPD Motherboard | |
| Motherboard / Chassis | CSE-LB26TS-R2K08P | 1 | 2U Chassis | |
| Backplane | BPN-NVME5-HS219N-S8 | 1 | 2U 8-port Hybrid backplane support up to 8x SAS3/SATA2/NVMe5 | |
| Cable | CBL-MCIO-1235M5 | 6 | [NR] MCIO x8 (STR to STR),35cm,85OHM,RoHS | |
| Cable | CBL-PWEX-1142-60 | 1 | MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS | |
| Cable | CBL-PWEX-1148-50 | 4 | MicroHi,2x4,PH3. to 2x4,PH4.2,MiniFit,50CM,8.5A/p,18AWG, | |
| Power Supply | PWS-2K08A-1R | 2 | 1U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm | |
| Riser Card | RSC-D-6G5+ | 1 | [NR]1U LHS DCO Riser card with one PCIe 5.0 X16 slot,HF,RoH | |
| Riser Card | RSC-D2-668G5 | 1 | 2U LHS DCO Riser card with 2 PCIe 5.0 X16 and 1 PCIe 5 | |
| Riser Card | RSC-D2-66G5 | 2 | [NR]2U LHS DCO Riser card with two PCIe 5.0 X16 slots,HF,Ro | |
| Software | SFT-OBF-NODE | 1 | NODE LICENSE,SMC OPENBMC FOUNDATION CODE,MIN.ORD=2500 | |
| Heatsink / Retention | SNK-P5010V | 1 | 1U Passive CPU Heat Sink for ARM-based CPU R13 Systems | |
| *Power Distributor | PDB-PTLB26-6814 | 1 | 2U support Redundant Ultra powers up to 2.6KW for GPU option |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
