- Supermicro ARS-111M-NR MegaDC 1U Barebone Single Ampere and AmpereOne Processors
Supermicro ARS-111M-NR MegaDC 1U Barebone Single Ampere and AmpereOne Processors
• Enterprise Server
• Hyperscale Data Center
• Front End Server
• Infrastructure

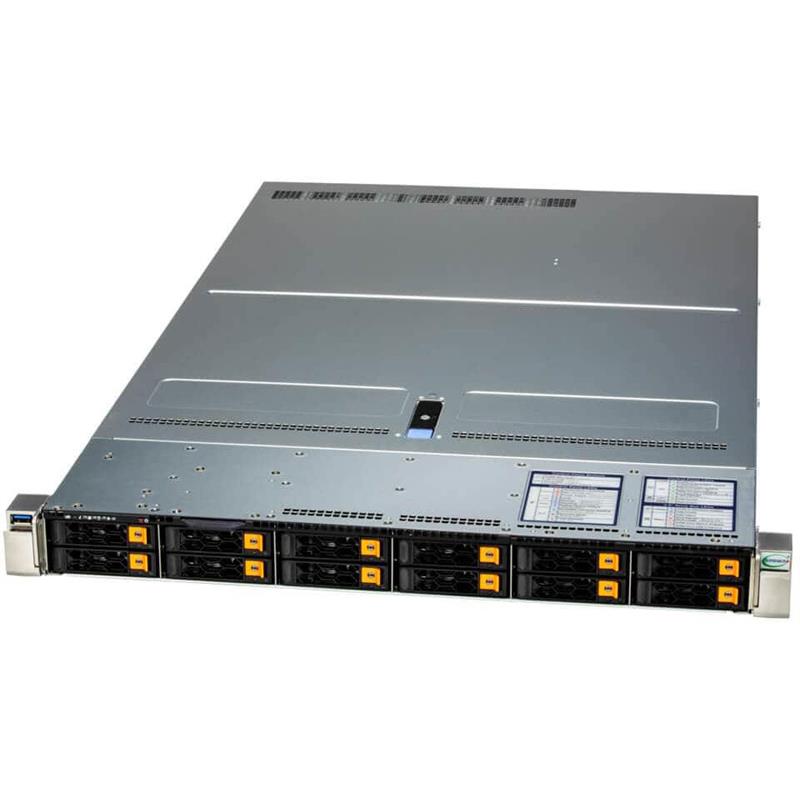

Barebone 1U Rackmount SuperServer, Support Single Socket 5964-Pin FCLGA, Supporting Ampere and AmpereOne Processors (Up to 192-Core, Up to 3.0GHz) Up to 250W TDP. Up to 4TB in 16 DIMM slots, RDIMM/LRDIMM, Chipset: System on Chip, Default: 12x Front Hot-swap 2.5in NVMe Drive Bay, 1x M.2 NVMe Slot (M-key 22110), Network Connectivity: 2 SFP28 25GbE with Broadcom, 1 RJ45 1 GbE Dedicated IPMI LAN Port, 2 RJ45 1 GbE LAN Port, 860W Power Supply - (CSE-LB16TS-R804AMP2 + R13SPD) - ARS-111M-NR
1. Single Socket Ampere® AmpereOne® Processor (Up to 192 Cores) ; Up to 400W TDP
2. 16 DIMMs; Up to 4TB ECC Registered DDR5-5600MHz RDIMM/LRDIMM
3. 3 PCIe 5.0 x16 (LP) Slots, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
4. 2x 25Gb LAN SFP28 Ports via BCM57414 Controller w/NC-SI
5. 10x 2.5" U.2 NVMe Hot-Swap Drive Bays
6. 860W Redundant Titanium Level High-efficiency Power Supplies
7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
Extra Specifications for Supermicro ARS-111M-NR MegaDC 1U Barebone Single Ampere and AmpereOne Processors
| Product SKUs | ||
| Product SKUs | ARS-111M-NR | |
| Motherboard | ||
| Motherboard | Super R13SPD | |
| Processor | ||
| CPU | Single processor(s) | |
| Ampere® AmpereOne® processor | ||
| Note | Supports 200W - 250W TDP CPUs (Air Cooled) | |
| System Memory | ||
| Memory | View Memory Options | |
| Slot Count: 16 DIMM slots | ||
| Max Memory (2DPC): Up to 4TB 4800MT/s ECC DDR5 RDIMM/LRDIMM | ||
| Memory Voltage | 1.1V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| 2 SFP28 25GbE with Broadcom® | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| 2 RJ45 1 GbE LAN port(s) | ||
| USB | 2 USB 3.0 port(s) (rear) | |
| 2 USB 2.0 port(s) (front) | ||
| Video | 1 VGA port(s) | |
| Serial | 1 port(s) | |
| Management | ||
| Power configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-LB16TS-R804AMP2 | |
| Dimensions and Weight | ||
| Height | 1.7" (43.18 mm) | |
| Width | 17.2" (436.88 mm) | |
| Depth | 23.5" (596.9 mm) | |
| Package | 7.5" (H) x 23.5" (W) x 31.5" (D) | |
| Weight | Net Weight: 25 lbs (11.3 kg) | |
| Gross Weight: 46 lbs (20.9 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| LED | Power status | |
| HDD activity | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Buttons | UID button | |
| Power On/Off | ||
| Expansion Slots | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: Total 12 bay(s) 12 front hot-swap 2.5" NVMe drive bay(s) | |
| 12 front hot-swap 2.5" NVMe drive bay(s) | ||
| M.2 | 1 M.2 NVMe slot(s) (M-key 22110) | |
| System Cooling | ||
| Fans | 6 Heavy Duty 4cm Fan(s) | |
| Power Supply | ||
| Dimension (WxHxL) | 54.5 x 40.25 x 220 mm | |
| +12V | Max: 66.67A / Min: 0A (100Vac-127Vac) | |
| Max: 71.67A / Min: 0A (200Vdc-240Vdc) | ||
| Max: 71.67A / Min: 0A (200Vac-240Vac) | ||
| 5V SB | Max: 4A / Min: 0A | |
| AC Input | 800W: 100-127Vac / 50-60Hz | |
| 860W: 200-240Vdc / 50-60Hz | ||
| 860W: 200-240Vac / 50-60Hz | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| ROHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-R13SPD | 1 | Super R13SPD Motherboard | |
| Motherboard / Chassis | CSE-LB16TS-R804AMP2 | 1 | 1U Chassis | |
| Backplane | BPN-NVME5-HS119N-S4R | 1 | 1U 4-slot backplane, 4x SAS3/SATA3/NVME5 X13 Hyper-S,HF,RoHS | |
| Backplane | BPN-NVME5-HS119N-S8L | 1 | 1U 8-slot backplane support 8x SAS3/SATA3/NVME5 storage devices for Hyper-S platform,RoHS | |
| Cable | CBL-MCIO-1235M5 | 6 | [NR] MCIO x8 (STR to STR),35cm,85OHM,RoHS | |
| Cable | CBL-PWEX-1077 | 1 | PWR EXT,2X4F to 2x6, 25CM,18AWG, 8.5A/pin,RoHS | |
| Air Shroud | MCP-310-LB008-0B | 1 | Air block for LB16-AM 1U Mega DC with R12SPD-A | |
| Power Supply | PWS-862A-1R | 2 | 1U redundant 800/860W Titanium AC power supply 54.5x40x220mm | |
| Riser Card | RSC-D-6G5+ | 2 | [NR]1U LHS DCO Riser card with one PCIe 5.0 X16 slot,HF,RoH | |
| Riser Card | RSC-PR-6G5 | 1 | 1U RHS TwinPro Riser card with one PCIe 5.0 X16 slot,HF | |
| Heatsink / Retention | SNK-P5010V | 1 | 1U Passive CPU Heat Sink for ARM-based CPU R13 Systems |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
