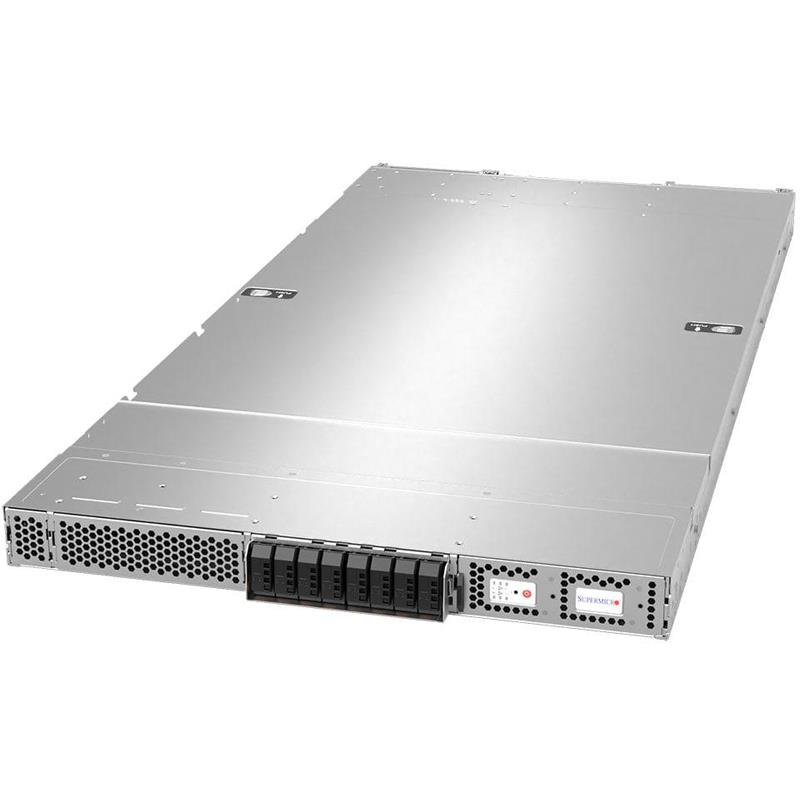

- Supermicro ARS-121L-DNR GPU 1U Barebone Two Nodes Single NVIDIA Grace CPU Superchip
Supermicro ARS-121L-DNR GPU 1U Barebone Two Nodes Single NVIDIA Grace CPU Superchip
• High Performance Computing
• Hyperscale Cloud Applications
• Data Analytics
Barebone 1U Rackmount SuperServer, Two Nodes System With NVIDIA Grace CPU Superchip Per Node, Onboard Memory, Max Memory: Up to 480GB ECC, Chipset: NVIDIA C2, Max GPU Count: Up to 1 Double-width or 1 Single-width GPU, Default: 4x Front Hot-swap E1.S NVMe Drive Bays, 2x M.2 NVMe Slots (M-key), Network Connectivity: Optional, 1x RJ45 1GbE Dedicated IPMI LAN Ports, 2700W Power Supply - (CSE-GP102TS-R000NDFP + G1SMH) - ARS-121L-DNR
1. High density 1U 2-node system with NVIDIA Grace™ CPU Superchip per node
2. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and CPU at 900GB/s
3. Up to 480GB LPDDR5X onboard memory
4. 2x PCIe 5.0 x16 slots per node supporting NVIDIA BlueField®-3 or ConnectX®-7
5. Up to 2x Hot-swap E1.S drives and 2x M.2 NVMe drives per node
6. 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
Extra Specifications for Supermicro ARS-121L-DNR GPU 1U Barebone Two Nodes Single NVIDIA Grace CPU Superchip
Product SKUs | ||
Product SKUs | ARS-121L-DNR | |
Motherboard | ||

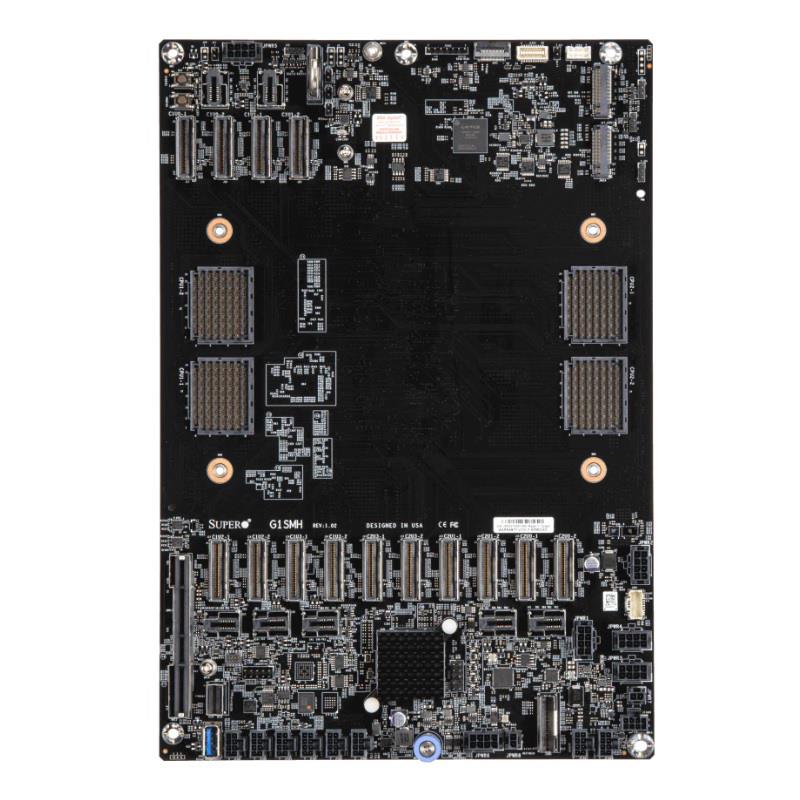

Motherboard | Super G1SMH | |
Processor (per Node) | ||
CPU | Single processor(s) | |
NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip | ||
Note | Supports up to 500W TDP CPUs (Air Cooled) | |
GPU (per Node) | ||
Max GPU Count | Up to 1 double-width or 1 single-width GPU(s) | |
GPU-GPU Interconnect | PCIe | |
System Memory (per Node) | ||
Memory | Slot Count: Onboard Memory | |
Max Memory: Up to 480GB ECC | ||
On-Board Devices (per Node) | ||
Chipset | NVIDIA C2 | |
Network Connectivity | View AOC Options | |
Input / Output (per Node) | ||
LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
USB | 2 port(s) (rear) | |
Video | 1 mini-DP port(s) | |
System BIOS | ||
BIOS Type | AMI 32MB SPI Flash EEPROM | |
Management | ||
Power configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-GP102TS-R000NDFP | |
Dimensions and Weight | ||
Height | 1.75" (44 mm) | |
Width | 17.33" (440 mm) | |
Depth | 37" (940 mm) | |
Package | 9.5" (H) x 48" (W) x 28" (D) | |
Weight | Gross Weight: 65.5 lbs (29.7 kg) | |
Net Weight: 48.5 lbs (22 kg) | ||
Available Color | Silver | |
Expansion Slots (per Node) | ||
PCI-Express (PCIe) Configuration | ||
Drive Bays / Storage (per Node) | ||
Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap E1.S NVMe drive bay(s) | |
4 front hot-swap E1.S NVMe drive bay(s) | ||
M.2 | View M.2 Options | |
2 M.2 NVMe slot(s) (M-key) | ||
System Cooling | ||
Fans | 9 Removable heavy-duty 4cm Fan(s) | |
Power Supply | ||
Dimension (WxHxL) | 73.5 x 40 x 185 mm | |
+12V | Max: 225A / Min: 0A (200Vac-240Vac) | |
Max: 225A / Min: 0A (240Vdc-240Vdc) | ||
12V SB | Max: 4A / Min: 0A | |
AC Input | 2700W: 200-240Vac / 50-60Hz | |
2700W: 240-240Vdc / 50-60Hz (for CQC only) | ||
Output Type | Backplanes (gold finger) | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-G1SMH | 2 | Super G1SMH Motherboard | |
Motherboard / Chassis | CSE-GP102TS-R000NDFP | 1 | 1U Chassis | |
Add-on Card / Module | AOM-GP101-IPMI-P | 2 | 2U Sapphire Rapids LEGO Server, 2U Grace C2 LEGO Server, | |
Add-on Card / Module | AOM-PCIE5-GP201-1-P | 4 | Cable Riser, 550mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
Add-on Card / Module | AOM-SCM-NV-P | 2 | BMC Module, Vertical, 1U DC-SCM, DC-SCI 2.0, AST2600, Ro | |
Backplane | BPN-E1S5-GP101M | 2 | 1U 8-slot E1.S Gen5 backplane for Nvidia MGX platform | |
Cable | CBL-CDAT-1120-25 | 2 | Picoclasp SB,NCSI,2x10 to 2x10,25cm,28AWG,1A/p,RoHS | |
Cable | CBL-MCIO-1290M5-Z | 4 | [NR] MCIO x8 (STR to STR),90cm,85OHM,RoHS | |
Cable | CBL-PWEX-0910-25 | 2 | MicroFit (2x1 to 2x1),PH3.0,25cm,11A/p,16AWG,RoHS | |
Cable | CBL-PWEX-0910-55 | 2 | MicroFit (2x1 to 2x1),PH3.0,55cm,11A/p,16AWG,RoHS | |
Cable | CBL-PWEX-1090-55 | 2 | MicroFit,(2x4 to 2x4),PH3.0,55CM,9A/pin,16AWG,RoHS | |
Cable | CBL-PWEX-1181RFT-69 | 2 | MicroFit (2x6 to 3 2x2),PH4.0,69cm,9A/p,16AWG,RoHS | |
Cable | CBL-SAST-1250S4-85 | 2 | SlimSAS x8 (STR to STR),50cm,SAS4,30AWG,RoHS | |
Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
Fan | FAN-0248L4 | 9 | 40x40x56 mm, 31K-28K RPM, Counter-rotating Fan, RoHS,RoHS | |
Power Distributor | PDB-GP102-1U2PT | 1 | 1U 2 input powers redundancy output up to 5KW for 2 MBs.,RoH | |
Power Supply | PWS-2K71A-1R | 2 | 1U 2700W Redundant Titanium w/PMBus power supply, W73.5xH39/40xL185 mm, C20 inlet | |
Software | SFT-DCMS-SINGLE | 2 | Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF | |
Heatsink / Retention | SNK-P4015V | 4 | 1U VC Passive Heat Sink for NVIDIA C2 (Grace-Grace) Module | |
*Drive Tray(s) | MCP-220-10201-0N | 1 | MGX 1U height IO Bay Module with 1x bridgeboard bracket | |
*Drive Tray(s) | MCP-220-10203-0N | 1 | MGX 1U height front control board bay (1 node only) | |
*Rail Set | MCP-290-20104-0N | 1 SET | 37.3 |
