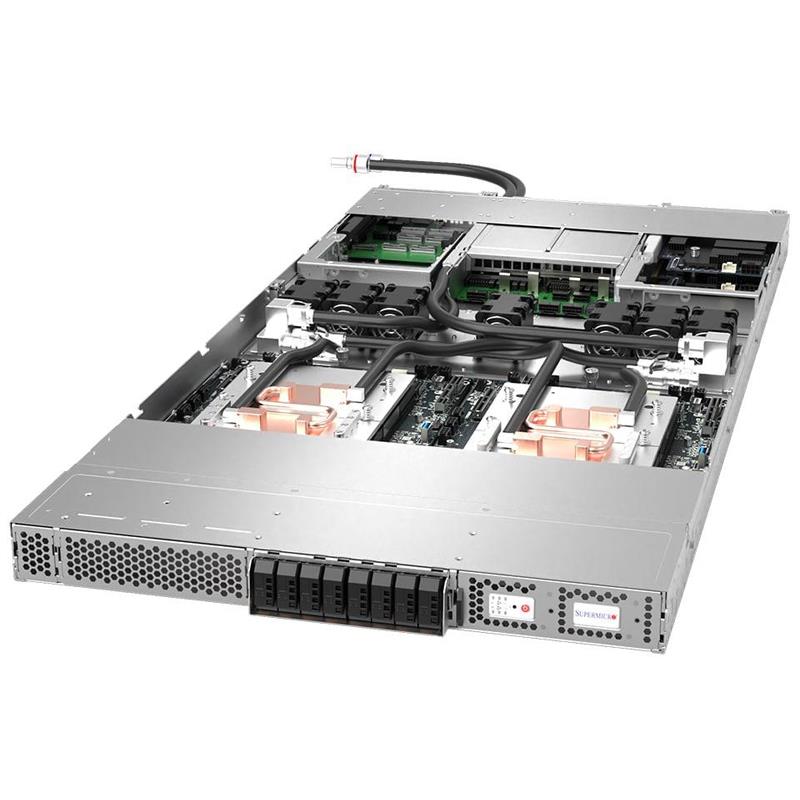

- Supermicro ARS-111GL-DNHR-LCC GPU 1U Barebone Two Nodes Single NVIDIA Grace CPU on GH200 Grace Hopper Superchip
Supermicro ARS-111GL-DNHR-LCC GPU 1U Barebone Two Nodes Single NVIDIA Grace CPU on GH200 Grace Hopper Superchip
• High Performance Computing
• AI/Deep Learning Training and Inference
• Large Language Model (LLM) and Generative AI
Barebone 1U Rackmount SuperServer, Two Nodes High Density GPU System With Integrated NVIDIA H100 GPU (1 per Node), Supported GPU - NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper Superchip (Liquid-cooled), Onboard Memory, Max Memory: Up to 480GB ECC LPDDR5X - Additional GPU Memory: Up to 96GB ECC HBM3, Chipset: System on Chip, Default: 4 Front Hot-swap E1.S NVMe Drive Bays, 2x M.2 NVMe slots (M-key), Network Connectivity: 1x RJ45 1GbE Dedicated IPMI LAN Ports, 2700W Power Supply - (CSE-GP102TS-R000NDFP + G1SMH-G) - ARS-111GL-DNHR-LCC
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs and 1 Storage Device HDD/HDS/M.2, and 1 NIC per node).
1. High density 1U 2-node GPU system with Integrated NVIDIA® H100 GPU (1 per Node)
2. NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
4. Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications
5. 2x PCIe 5.0 x16 slots per node supporting NVIDIA BlueField®-3 or ConnectX®-7
6. 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
Extra Specifications for Supermicro ARS-111GL-DNHR-LCC GPU 1U Barebone Two Nodes Single NVIDIA Grace CPU on GH200 Grace Hopper Superchip
| Product SKUs | ||
| Product SKUs | ARS-111GL-DNHR-LCC | |
| Motherboard | ||

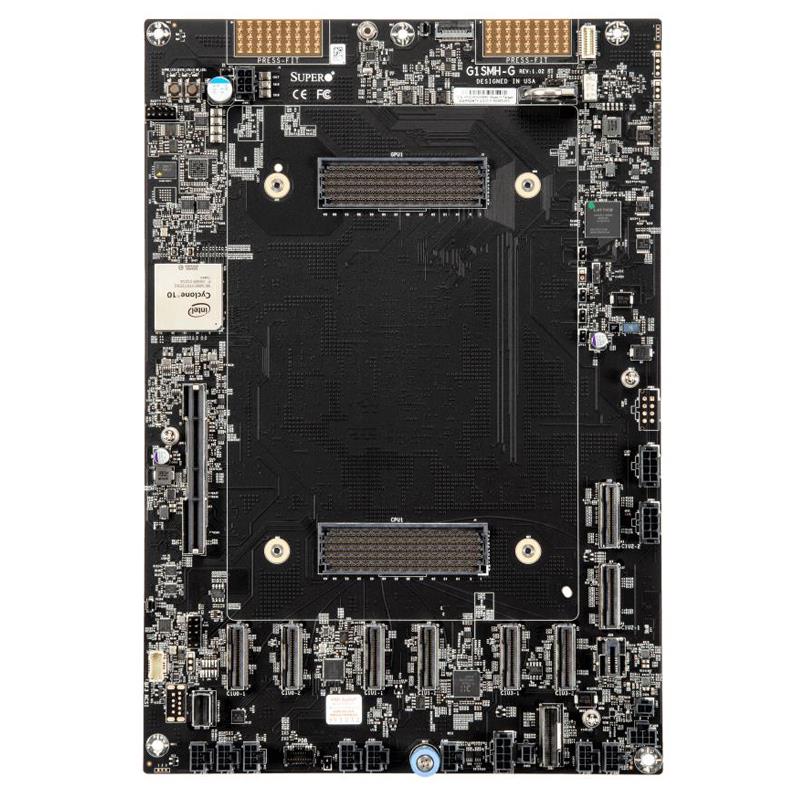

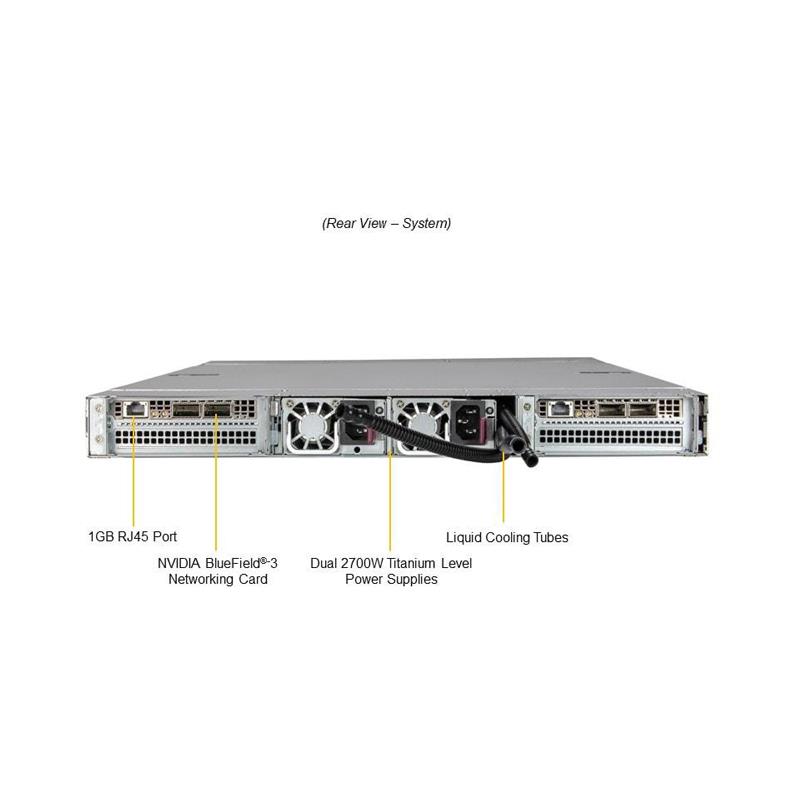

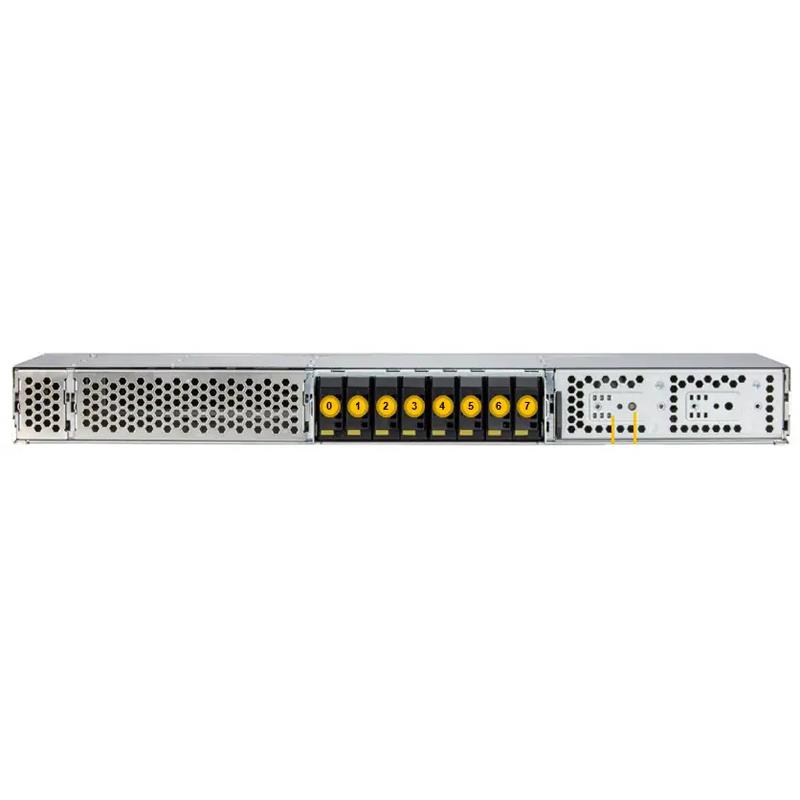

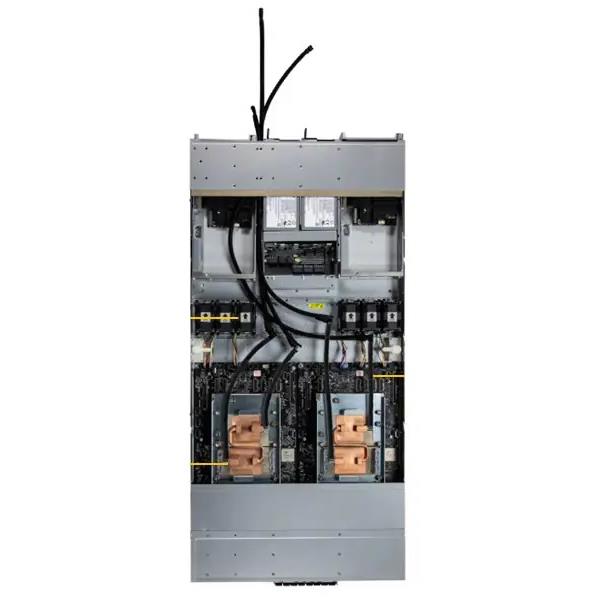

| Motherboard | Super G1SMH-G | |
| Processor (per Node) | ||
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip | |
| Note | Supports up to 2000W TDP CPUs (Liquid Cooled) | |
| GPU (per Node) | ||
| Max GPU Count | Up to 1 onboard GPU(s) | |
| Supported GPU | NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Liquid-cooled) | |
| View GPU Options | ||
| CPU-GPU Interconnect | NVLink®-C2C | |
| GPU-GPU Interconnect | PCIe | |
| System Memory (per Node) | ||
| Memory | Slot Count: Onboard Memory | |
| Max Memory: Up to 480GB ECC LPDDR5X | ||
| Additional GPU Memory: Up to 96GB ECC HBM3 | ||
| On-Board Devices (per Node) | ||
| Chipset | System on Chip | |
| Network Connectivity | View AOC Options | |
| Input / Output (per Node) | ||
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
| USB | 2 port(s) (rear) | |
| Video | 1 mini-DP port(s) | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| Management | ||
| Power configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-GP102TS-R000NDFP | |
| Dimensions and Weight | ||
| Height | 1.75" (44 mm) | |
| Width | 17.33" (440 mm) | |
| Depth | 37" (940 mm) | |
| Package | 9.5" (H) x 48" (W) x 28" (D) | |
| Weight | Gross Weight: 65.5 lbs (29.7 kg) | |
| Net Weight: 48.5 lbs (22 kg) | ||
| Available Color | Silver | |
| Expansion Slots (per Node) | ||
| PCI-Express (PCIe) Configuration | ||
| Drive Bays / Storage (per Node) | ||
| Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap E1.S NVMe drive bay(s) | |
| 4 front hot-swap E1.S NVMe drive bay(s) | ||
| M.2 | 2 M.2 NVMe slot(s) (M-key) | |
| System Cooling | ||
| Fans | 7 Removable heavy-duty 4cm Fan(s) | |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) | |
| Power Supply | ||
| Dimension (WxHxL) | 73.5 x 40 x 185 mm | |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) | |
| Max: 225A / Min: 0A (240Vdc-240Vdc) | ||
| 12V SB | Max: 4A / Min: 0A | |
| AC Input | 2700W: 200-240Vac / 50-60Hz | |
| 2700W: 240-240Vdc / 50-60Hz (for CQC only) | ||
| Output Type | Backplanes (gold finger) | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-G1SMH-G | 2 | Super G1SMH-G Motherboard | |
| Motherboard / Chassis | CSE-GP102TS-R000NDFP | 1 | 1U Chassis | |
| Add-on Card / Module | AOM-IO-GP102-P | 2 | 1U MGX Grace Server, 1x mini DP, 1x RJ45, 1x USB2.0, RoH | |
| Add-on Card / Module | AOM-PCIE5-GP201-10-P | 1 | Cable Riser, 400mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Add-on Card / Module | AOM-PCIE5-GP201-4-P | 3 | Cable Riser, 450mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
| Add-on Card / Module | AOM-SCM-NV-P | 2 | BMC Module, Vertical, 1U DC-SCM, DC-SCI 2.0, AST2600, Ro | |
| Backplane | BPN-E1S5-GP101M | 2 | 1U 8-slot E1.S Gen5 backplane for Nvidia MGX platform | |
| Cable | CBL-CDAT-1033-07 | 4 | 1x3 to 1x3, BMC control, PH0.8, 7cm, 32AWG, RoHS,RoHS | |
| Cable | CBL-CDAT-1120-50B | 1 | [NR] Picoclasp SB,NCSI,2x10 to 2x10,BK,50cm,28AWG,1A/p,RoHS | |
| Cable | CBL-CDAT-1120-50W | 1 | Picoclasp SB,NCSI,2x10 to 2x10,WH,50cm,28AWG,1A/p,RoHS | |
| Cable | CBL-CDAT-1120-60 | 1 | Picoclasp SB,NCSI,2x10 to 2x10,60cm,28AWG,1A/p,RoHS | |
| Cable | CBL-MCIO-1230M5 | 2 | [NR] MCIO x8 (STR to STR),30CM,85OHM,RoHS | |
| Cable | CBL-MCIO-1235M5 | 2 | [NR] MCIO x8 (STR to STR),35cm,85OHM,RoHS | |
| Cable | CBL-PWEX-0910-25 | 2 | MicroFit (2x1 to 2x1),PH3.0,25cm,11A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-0910-30 | 2 | [NR] MicroFit (2x1 to 2x1),PH3.0,30cm,11A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1093-40 | 2 | MicroFit,(2x2F to 2x2F), PH3.0,40CM,10A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1093-85 | 2 | [NR] MicroFit,(2x2F to 2x2F), PH3.0,85CM,10A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1114-20 | 1 | Microfit,(2X4 to 2X4),PH3.0,20CM,9A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1114-45 | 1 | [NR] Microfit,(2X4 to 2X4),PH3.0,45CM,9A/pin,16AWG,RoHS | |
| Cable | CBL-PWEX-1181RFT-45 | 2 | [NR]MicroFit (2x6 to 3 2x2),PH4.0,45cm,9A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1316RF2-57 | 1 | [NR] 12V-2x6 H++,12P+4S/(RF to RF), 57cm,8.33A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1316RF2-60 | 1 | [NR]12V-2x6,2x6+4S /(RF to LF), 60cm,8.33A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1316RLF-55 | 1 | [NR] 12VHPWR,2x6+4S /(RF to LF), 55cm,8.33A/p,16AWG,RoHS | |
| Cable | CBL-PWEX-1316RLF-60 | 1 | [NR]12V-2x6+4S /(RF to LF), 60cm,8.33A/p,16AWG,RoHS | |
| Cable | CBL-SAST-1240LES4-85 | 2 | [NR] SlimSAS x8 (LE to STR),40cm,SAS4,30AWG,RoHS | |
| Fan | FAN-0249L4 | 7 | 40x40x56 mm, 33K-28K RPM, Counter-rotating, Cable inlet exit | |
| Drive Tray(s) | MCP-220-10201-0N | 2 | MGX 1U height IO Bay Module with 1x bridgeboard bracket | |
| Power Distributor | PDB-GP102-1U2PT | 1 | 1U 2 input powers redundancy output up to 5KW for 2 MBs.,RoH | |
| Power Supply | PWS-2K71A-1R | 2 | 1U 2700W Redundant Titanium w/PMBus power supply, W73.5xH39/40xL185 mm, C20 inlet | |
| Storage Controller Card | SCC-P2N2M2-X1 | 2 | support 2x PCIe Gen 5 NVMe M.2 slot per node | |
| Software | SFT-DCMS-SINGLE | 2 | Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF | |
| Heatsink / Retention | SNK-P3084-1 | 1 | LCM, CG1, ARS-111GL-NHR-LCC, ARS-111GL-DNHR-LCC | |
| Heatsink / Retention | SNK-P3084-2 | 1 | LCM, CG1, ARS-111GL-NHR-LCC, ARS-111GL-DNHR-LCC |
