- Supermicro ARS-111GL-NHR-LCC GPU 1U Barebone Single NVIDIA GH200 Grace Hopper Superchip Integrated NVIDIA H100 GPU and Liquid Cooling
Supermicro ARS-111GL-NHR-LCC GPU 1U Barebone Single NVIDIA GH200 Grace Hopper Superchip Integrated NVIDIA H100 GPU and Liquid Cooling
• High Performance Computing
• AI/Deep Learning Training and Inference
• Large Language Model (LLM) and Generative AI
Barebone 1U Rackmount SuperServer, Support Single Socket 2x Mirror Mezz, Supporting NVIDIA GH200 Grace Hopper Superchip (Up to 72-Core). Onboard Memory, Max Memory: Up to 480GB ECC LPDDR5X, Additional GPU Memory: Up to 96GB ECC HBM3, Chipset: System on Chip, Default: 8 Front Hot-swap E1.S NVMe Drive Bays, 2x M.2 NVMe slots (M-key), Network Connectivity: 1x RJ45 1GbE Dedicated IPMI LAN Ports, 2000W Power Supply - (CSE-GP102TS-R000NDFP + G1SMH-G) - ARS-111GL-NHR-LCC
1. High density 1U GPU system with Integrated NVIDIA® H100 GPU and liquid cooling
2. NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
4. Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications
5. 2x PCIe 5.0 x16 slots supporting NVIDIA BlueField®-3 or ConnectX®-7
6. 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
Extra Specifications for Supermicro ARS-111GL-NHR-LCC GPU 1U Barebone Single NVIDIA GH200 Grace Hopper Superchip Integrated NVIDIA H100 GPU and Liquid Cooling
Product SKUs | ||
Product SKUs | ARS-111GL-NHR-LCC | |
Motherboard | ||

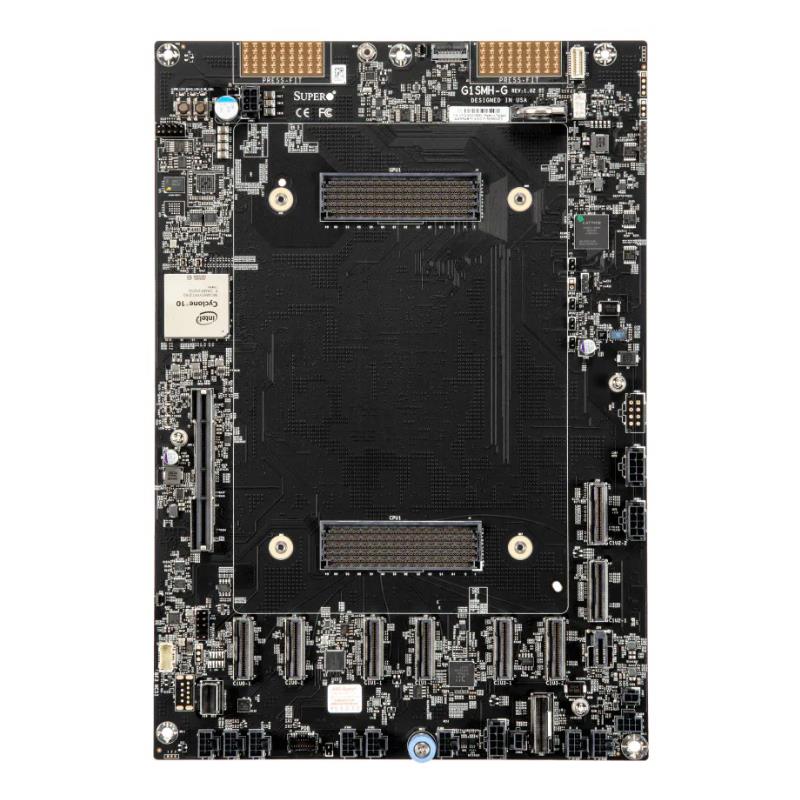

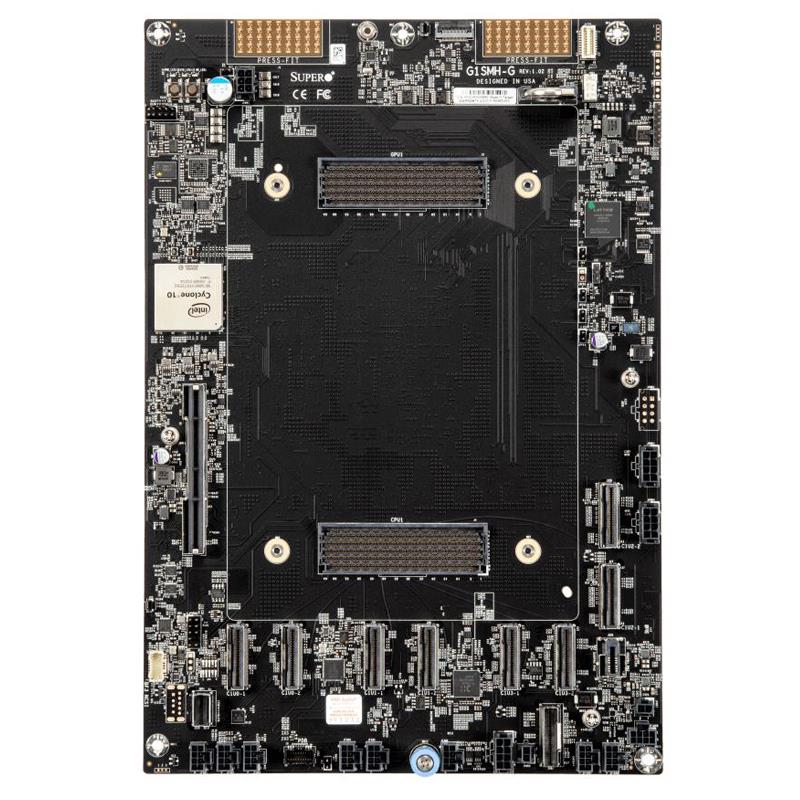

Motherboard | Super G1SMH-G | |
Processor | ||
CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip | |
Note | Supports up to 1000W TDP CPUs (Liquid Cooled) | |
GPU | ||
Max GPU Count | Up to 1 onboard GPU(s) | |
Supported GPU | View GPU Options | |
NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Liquid-cooled) | ||
CPU-GPU Interconnect | NVLink®-C2C | |
System Memory | ||
Memory | Slot Count: Onboard Memory | |
Max Memory: Up to 480GB ECC LPDDR5X | ||
Additional GPU Memory: Up to 96GB ECC HBM3 | ||
On-Board Devices | ||
Chipset | System on Chip | |
Network Connectivity | View AOC Options | |
Input / Output | ||
LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) | |
Video | 1 mini-DP port(s) | |
System BIOS | ||
BIOS Type | AMI 64MB SPI Flash EEPROM | |
Management | ||
Power configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-GP102TS-R000NDFP | |
Dimensions and Weight | ||
Height | 1.75" (44 mm) | |
Width | 17.33" (440 mm) | |
Depth | 37" (940 mm) | |
Package | 9.5" (H) x 48" (W) x 28" (D) | |
Weight | Gross Weight: 65.5 lbs (29.7 kg) | |
Net Weight: 48.5 lbs (22 kg) | ||
Available Color | Silver | |
Expansion Slots | ||
PCI-Express (PCIe) Configuration | ||
Drive Bays / Storage | ||
Drive Bays Configuration | Default: Total 8 bay(s) 8 front hot-swap E1.S NVMe drive bay(s) | |
8 front hot-swap E1.S NVMe drive bay(s) | ||
M.2 | 2 M.2 NVMe slot(s) (M-key) | |
System Cooling | ||
Fans | 9 Removable heavy-duty 4cm Fan(s) | |
Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) | |
Power Supply | ||
Dimension (WxHxL) | 73.5 x 40 x 185 mm | |
+12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
Max: 150A / Min: 0A (200Vac-220Vac) | ||
Max: 165A / Min: 0A (220Vac-230Vac) | ||
Max: 166A / Min: 0A (230Vac-240Vac) | ||
12V SB | Max: 3.5A / Min: 0A | |
AC Input | 1000W: 100-127Vac / 50-60Hz | |
1800W: 200-220Vac / 50-60Hz | ||
1980W: 220-230Vac / 50-60Hz | ||
2000W: 230-240Vac / 50-60Hz | ||
2000W: 220-240Vac / 50-60Hz (for UL only) | ||
2000W: 230-240Vdc / 50-60Hz (for CQC only) | ||
Output Type | Backplanes (gold finger) | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-G1SMH-G | 1 | Super G1SMH-G Motherboard | |
Motherboard / Chassis | CSE-GP102TS-R000NDFP | 1 | 1U Chassis | |
Add-on Card / Module | AOM-IO-GP102-P | 1 | 1U MGX Grace Server, 1x mini DP, 1x RJ45, 1x USB2.0, RoH | |
Add-on Card / Module | AOM-PCIE5-GP201-10-P | 1 | Cable Riser, 400mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
Add-on Card / Module | AOM-PCIE5-GP201-4-P | 2 | Cable Riser, 450mm, 2 MCIO to 1 PCIE x16 Slot,RoHS | |
Add-on Card / Module | AOM-SCM-NV-P | 1 | BMC Module, Vertical, 1U DC-SCM, DC-SCI 2.0, AST2600, Ro | |
Backplane | BPN-E1S5-GP101M | 1 | 1U 8-slot E1.S Gen5 backplane for Nvidia MGX platform | |
Cable | CBL-CDAT-1033-25 | 1 | 1x3 to 1x3, BMC control, PH0.8, 25cm, 32AWG, RoHS | |
Cable | CBL-CDAT-1120-50B | 1 | [NR] Picoclasp SB,NCSI,2x10 to 2x10,BK,50cm,28AWG,1A/p,RoHS | |
Cable | CBL-MCIO-1260M5 | 2 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS | |
Cable | CBL-PWEX-0910-25 | 1 | MicroFit (2x1 to 2x1),PH3.0,25cm,11A/p,16AWG,RoHS | |
Cable | CBL-PWEX-0910-50 | 1 | MicroFit (2x1 to 2x1),PH3.0,50cm,11A/p,16AWG,RoHS | |
Cable | CBL-PWEX-1093-85 | 1 | [NR] MicroFit,(2x2F to 2x2F), PH3.0,85CM,10A/pin,16AWG,RoHS | |
Cable | CBL-PWEX-1114-45 | 2 | [NR] Microfit,(2X4 to 2X4),PH3.0,45CM,9A/pin,16AWG,RoHS | |
Cable | CBL-PWEX-1181RFT-45 | 1 | [NR]MicroFit (2x6 to 3 2x2),PH4.0,45cm,9A/p,16AWG,RoHS | |
Cable | CBL-PWEX-1234Y-40 | 1 | [NR] MicroFit,(2x4 to 2 2x2),PH3.0,40cm,9A/p,16AWG,RoHS | |
Cable | CBL-PWEX-1316RF2-85 | 2 | [NR] 12VHPWR,2x6+4S /(RF to RF), 85cm,8.33A/p,16AWG,RoHS | |
Cable | CBL-SAST-1240LES4-85 | 1 | [NR] SlimSAS x8 (LE to STR),40cm,SAS4,30AWG,RoHS | |
Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
Fan | FAN-0248L4 | 7 | 40x40x56 mm, 31K-28K RPM, Counter-rotating Fan, RoHS,RoHS | |
Power Distributor | PDB-GP101-1U2PG | 1 | 1U 2 input powers redundancy output up to 5KW.,RoHS | |
Power Supply | PWS-2K09A-1R | 2 | AC-DC 1U 2000W 80 Plus Titanium CRPS, forward airflow, W73.5 | |
Storage Controller Card | SCC-P2N2M2-X1 | 1 | support 2x PCIe Gen 5 NVMe M.2 slot per node | |
Software | SFT-DCMS-SINGLE | 1 | Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF | |
Heatsink / Retention | SNK-P3084-1 | 1 | LCM, CG1, ARS-111GL-NHR-LCC, ARS-111GL-DNHR-LCC | |
*Drive Tray(s) | MCP-220-10201-0N | 1 | MGX 1U height IO Bay Module with 1x bridgeboard bracket | |
*Drive Tray(s) | MCP-220-10203-0N | 1 | MGX 1U height front control board bay (1 node only) | |
*Rail Set | MCP-290-20104-0N | 1 SET | 37.3 |
