| Product SKUs |
| Product SKUs | ARS-121GL-NHB-LCC |
| Motherboard |

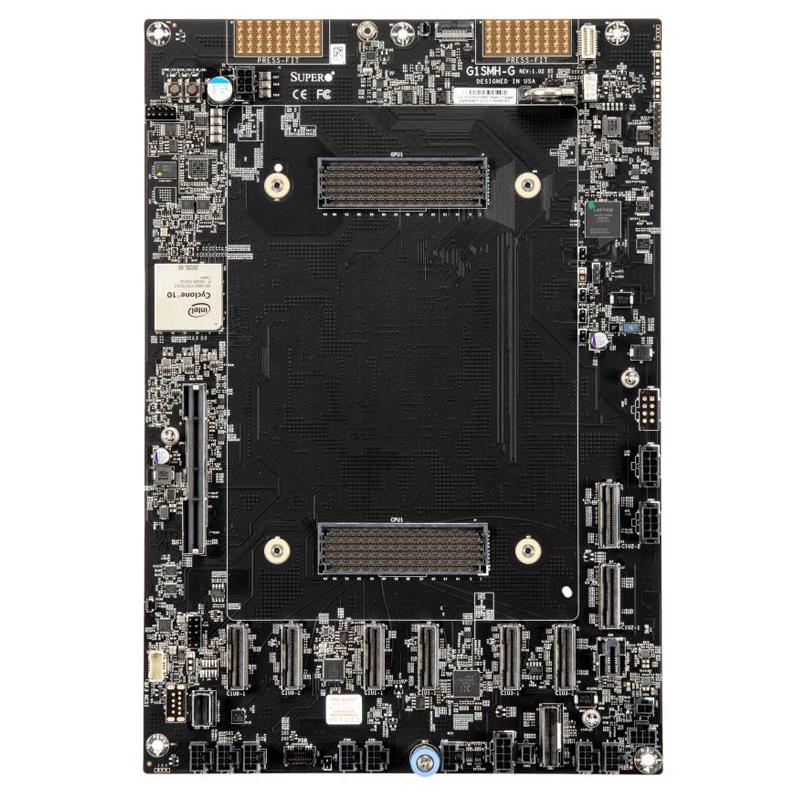

| Motherboard | Super G1SMH-G |
| Processor |
| CPU | Dual processor(s) |
| Core Count | Up to 144C/288T |
| Note | Supports up to 2000W TDP CPUs (Air Cooled) |
| Supports up to 2000W TDP CPUs (Liquid Cooled) |
| GPU |
| Max GPU Count | Up to 2 double-width GPU(s) |
| GPU-GPU Interconnect | NVIDIA® NVLink® |
| System Memory |
| Memory | Slot Count: Onboard Memory |
| Max Memory: Up to 480GB non-ECC LPDDR5X |
| Additional GPU Memory: Up to 96GB non-ECC HBM3 |
| On-Board Devices |
| Chipset | System on Chip |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB | 2 port(s) (rear) |
| Video | 1 mini-DP port(s) |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-GP102TS-R000NDFP |
| Dimensions and Weight |
| Height | 1.75" (44 mm) |
| Width | 17.33" (440 mm) |
| Depth | 37" (940 mm) |
| Package | 9.5" (H) x 48" (W) x 28" (D) |
| Weight | Gross Weight: 65.5 lbs (29.7 kg) |
| Net Weight: 48.5 lbs (22 kg) |
| Available Color | Silver |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 4 bay(s) 4 front hot-swap E1.S NVMe drive bay(s) |
| 4 front hot-swap E1.S NVMe drive bay(s) |
| M.2 | 2 M.2 NVMe slot(s) (M-key) |
| System Cooling |
| Fans | 6 Removable heavy-duty 4cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
| Dimension (WxHxL) | 73.5 x 40 x 185 mm |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) |
| Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12V SB | Max: 4A / Min: 0A |
| AC Input | 2700W: 200-240Vac / 50-60Hz |
| 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| Output Type | Backplanes (gold finger) |
| Operating Environment |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
