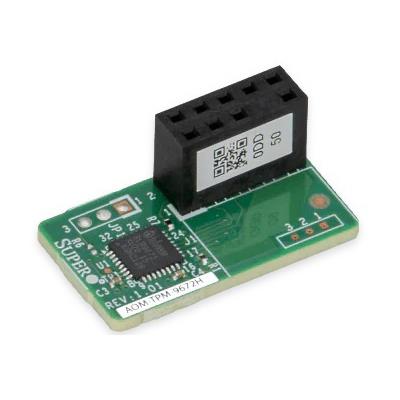

The Supermicro Trusted Platform Module AOM-TPM-9672V series provide a solid hardware based foundation for securely establishing the identity and software status which include the highest level of protection the confidentiality of data. This is the first Supermicro TPM that offers a security solution with a post-quantum cryptography (PQC) with protected firmware update mechanism with a 256-bits key length. This new outstanding Supermicro TPM is designed for improved computing performance. Furthermore, it also extends non-volatile memory to store additional certificates and cryptographic keys. This AOM-TPM-9672V module complies with Trusted Computing Group (TCG) 2.0 standard, contains FIPs compliance, and engineered with TPM firmware recovery.
Security Features
Protection of keys and passwords
Secured firmware update
Designed for Quantum Computers
Stronger Cryptographic algorithms
Secured channel for encrypted data
Application Support
Servers and PCs such as desktops, tablets and workstations
Computing and Storage
Network devices such as Gateways, Routers, Network interface cards, Switches, etc.
Latest version of Windows and Linux.
Microsoft HLK Certification
Programmable Logic Controllers (PLC)
Automotive applications
Key Features
TCG 2.0 Compliant Trusted Platform module (TPM)
Compliant to TPM Family 2.0
SPI Interface
FIPs 140-2 level 2
Supported Intel TXT and Microsoft Certification
24 PCRs with established Hash-based signatures SHA-1, SHA-256 and SHA-384
Protection against Dictionary Attack
Random Number Generator (RNG)
Built-in support by Linux Kernel
51 kByte NV memory with unlimited amount of NV counters.
Support RSA key generation (1024, 2048, 3072 and 4096 bit)
Operating temperature range -40°C to +105°C or -40°C to +85°C
Up to 4 Endorsement keys (EK)
Intel Trusted Execution Technology Support
AMD Secure Virtual Machine Architecture Support
3.3 V power supply or 1.8 V power supply
