  2. Kioxia KXDZDRJJ7T68 7.68TB NVMe Solid-State Drive PCIe 5.0 E1.S 9.5mm SED TLC 1DWPD - XD7P Series

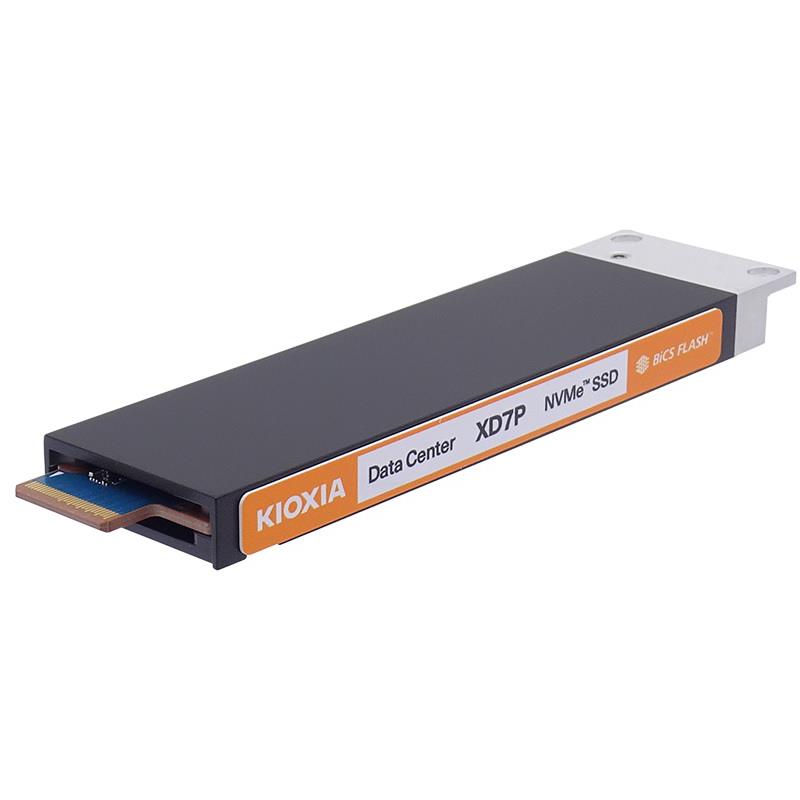

Kioxia KXDZDRJJ7T68 7.68TB NVMe Solid-State Drive PCIe 5.0 E1.S 9.5mm SED TLC 1DWPD - XD7P Series

Kioxia KXDZDRJJ7T68 7.68TB NVMe Solid-State Drive PCIe 5.0 E1.S 9.5mm SED TLC 1DWPD - XD7P Series

  • Designed to optimize system density and efficiency

  • Power loss protection (PLP) and end-to-end data protection

  • Compliant with PCIe 5.0 (Gen4 x4), NVMe 2.0 specifications

  • Servers and storage systems for cloud and hyperscale data centers

The NVMe Solid-State Drive Features 7.68TB. NVMe 2.0 Transfer Rate Of 64 GT/s (PCIe Gen4 x4), Designed in E1.S 9.5mm EDSFF Form Factor Thickness of 9.5mm. BiCS FLASH TLC Technology With a Durability Rating of 1.0DWPD. Features Self-Encrypting Drive (SED) Capability. Optimized For Servers and Storage Systems For Cloud and Hyperscale Data Centers, XD7P Series - OEM

Contact us for volume discounts

    This combination does not exist.

    PreOrder
    1 lb
    Email For Price

    • Compliant with PCIe 5.0 (Gen4 x4), NVMe 2.0 specifications

    • Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)

    • E1.S form factor (9.5 mm / 15 mm thickness)

    • KIOXIA proprietary architecture: controller, firmware and BiCS FLASH generation 5

    • 1.92 TB / 3.84 TB / 7.68 TB capacity option Power loss protection (PLP) and end-to-end data protection

    Extra Specifications for Kioxia KXDZDRJJ7T68 7.68TB NVMe Solid-State Drive PCIe 5.0 E1.S 9.5mm SED TLC 1DWPD - XD7P Series

    Main Specifications
    Device TypeNVMe Solid state drive - internal
    Capacity7.68TB
    Form FactorE1.S 9.5mm
    InterfacePCIe 5.0 NVMe 2.0
    Maximum Interface Speed64 GT/s (PCIe Gen4 x4)
    NAND Flash Memory TypeBiCS FLASH TLC
    Dimensions (WxDxH)Thickness 9.5 mm ± 0.35 mm x Width 33.75 mm ± 0.25 mm x Length 118.75 mm ± 0.55 mm
    Weight75 g Max
    Performance
    Internal Data RateSustained 128 KiB Sequential Read: 7,200 MB/s / Sustained 128 KiB Sequential Write: 4,800 MB/s
    4KB Random Read1550K IOPS
    4KB Random Write200K IOPS
    Drive Writes Per Day (DWPD)1
    Power
    Supply Voltage12 V ± 10 %
    Power Consumption (Active)20W
    Power Consumption (Ready)5 W typ.
    Miscellaneous
    MTBF2,000,000 hours
    Environmental
    Operating EnvironmentHumidity (Operating): 5 % to 95 % R.H.
    Temperature (Non-operating): -40 °C to 85 °C
    Temperature (Operating): 0 °C to 75 °C
    Vibration (Operating): 12 m/s2 { 1.24 Grms } ( 2 to 500 Hz )
    Shock (Operating): 6,864 m/s2 { 700 G } ( 0.5 ms )

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Kioxia
    Type of Support:FULL
    Phone No.:949-737-7300
    URL:Click here for Manufacturer Website
