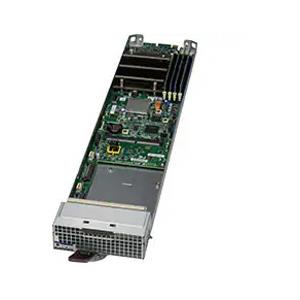

Supermicro MBI-311A-1T2N-PACK MicroBlade Compact Self-contained Server Single Intel Core i3/i5/i7/i9 Processors 13th Generation
Supermicro MBI-311A-1T2N-PACK MicroBlade Compact Self-contained Server Single Intel Core i3/i5/i7/i9 Processors 13th Generation

Supermicro MBI-311A-1T2N-PACK MicroBlade Compact Self-contained Server Single Intel Core i3/i5/i7/i9 Processors 13th Generation

• Cloud Gaming
• E-commerce
• Cloud Computing
• Content Creation
• Web/Collocation Services
• Web Cache, CDN, Video Streaming
• Social Networking, Downloads
• Corporate • WINS, DNS, Print, Login
• 140 UP nodes per 42U Rack
• 20 UP nodes in 6U

MicroBlade Server For 6U Enclosure MBE-620E-830/630/430/822/622/422, Supports Single Socket (LGA 1700), Supporting Intel Core i9-13900E/TE, i9-12900E/TE, i7-13700E/TE, i7-12700E/TE, i5-13500E/TE, i5-12500E/TE, i3-13100E/TE, i3-12100E/TE Processors 13th Generation (Up to 24-Core/32 thread). Up to 128GB in 4 DIMM slots, UDIMM, Chipset: Intel W680. On-Board: SATA/NVMe Hybrid Ports. Drive Bays: 2x 2.5in SATA/NVMe Drives, 1x M.2 Form Factor: 2280/22110 (M.2 Key: M-Key) 1x SATA DOM. Network Connectivity: Dual 10GbE LAN Ports, One dedicated BMC Port - (MBI-311A-1T2N-PACK)

$ 760.00$ 760.00760.0USD

$ 760.00

Option not available

    This combination does not exist.

    Add to Cart

    1. Single socket (LGA 1700) supports the following 13th Gen Intel® Core® processors: i9-13900E/TE, i9-12900E/TE, i7-13700E/TE, i7-12700E/TE, i5-13500E/TE, i5-12500E/TE, i3-13100E/TE, i3-12100E/TE Please contact Supermicro representative for other CPU SKU support
    2. Up to 128GB ECC LP UDIMM DDR5 4400 MT/s in 4 DIMM slots
    3. Up to 2x 2.5" SATA/NVMe drives M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH) and 1 NVMe (PCIe 4.0) M.2 Form Factor: 2280/22110 M.2 Key: M-Key
    4. Dual 10GbE LAN ports via BCM57414 Dedicated LAN supports IPMI 2.0
    5. Aspeed AST2600

    Extra Specifications for Supermicro MBI-311A-1T2N-PACK MicroBlade Compact Self-contained Server Single Intel Core i3/i5/i7/i9 Processors 13th Generation

    Main Specifications
    Device TypeMicroBlade
    Built-in DevicesMBD-B4SA1-CPU
    Dimensions (WxDxH)Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm)
    WeightGross Weight: 3.3 lbs (1.5 kg)
    Enclosure ColorSilver Grey
    Processor
    Compatible Processors13th Gen Intel Core processors: i9-13900E/TE, i9-12900E/TE, i7-13700E/TE, i7-12700E/TE, i5-13500E/TE, i5-12500E/TE, i3-13100E/TE, i3-12100E/TE
    Compatible SocketSingle Socket (LGA 1700)
    Cache/CoreUp to 24 cores, 32 threads
    System Memory
    Memory Capacity4 DDR5 DIMM sockets, Supports up to 128GB DDR5 ECC LP UDIMM
    Memory Type4400 MT/s ECC DDR5 UDIMM
    DIMM Sizes32GB
    Memory Voltage1.2 V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel W680 chipset
    Network ControllersDual 10GbE LAN ports
    IPMISupport for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    SATA DOM1x SATA DOM
    TPM1 TPM Header
    System BIOS
    BIOS Type128Mb Flash EEPROM
    BIOS FeaturesPlug and Play (PnP), APM 1.2, SMBIOS 2.7.1
    PC Health Monitoring
    LEDPower LED, Fault LED, Network Activity LED, UID / KVM LED
    Expansion / Connectivity
    Expansion Bays Total (Free)internal - 2x 2.5" SATA/NVMe drives
    M.2M.2 Key: M-Key
    M.2 Form Factor: 2280/22110
    M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH) and 1 NVMe (PCIe 4.0)
    Environmental
    Operating EnvironmentNon-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 10°C to 38°C (50°F to 100.4°F)
    Safety and Compliance
    Electromagnetic CompatibilityUnited States / Canada: FCC- Emissions (US) Verification
    Europe: EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
