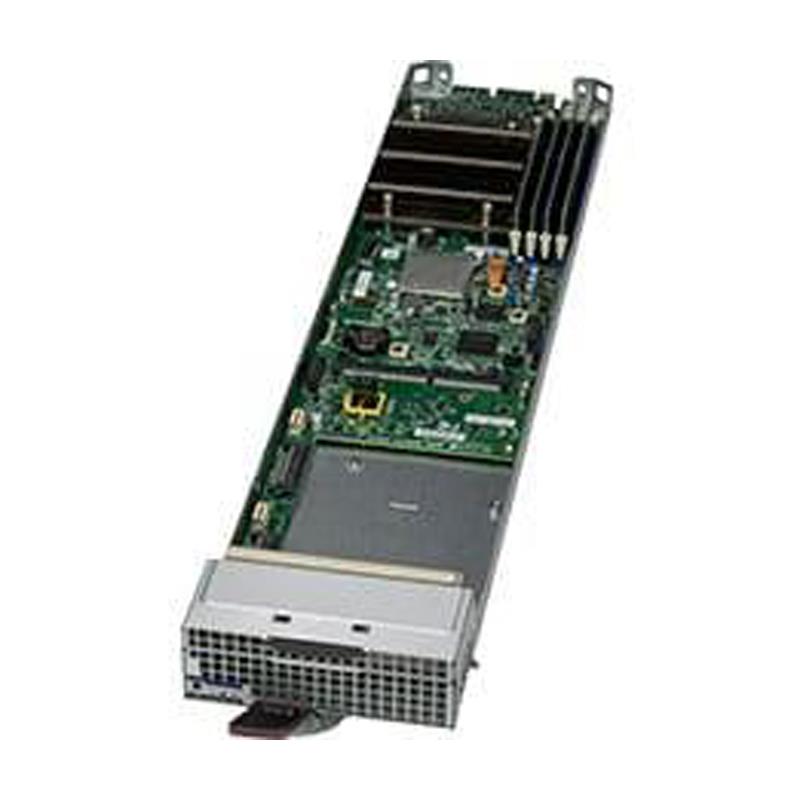

Supermicro MBI-311C-1T2N MicroBlade Compact Self-contained Server Single Intel Xeon E-2400 and Pentium Processor
Cloud Gaming
E-commerce
Cloud Computing
Content Creation
Web/Collocation Services
Web Cache, CDN, Video Streaming
Social Networking, Downloads
Corporate – WINS, DNS, Print, Login
MicroBlade For 6U Enclosure, Support Single Socket (LGA 1700), Supporting Intel Xeon E-2400 and Pentium Processor (Up to 8-Core). Up to 128GB in 4 DIMM slots, UDIMM, Chipset: Intel C266. On-Board: SATA/NVMe Ports. Drive Bays Configuration: 2x 2.5in SATA/NVMe Drives, M.2 Form Factor: 2280, 22110 (Key: M-Key), 1x SATA DOM. Network Connectivity: Dual 10GbE LAN Ports - (MBI-311C-1T2N)
1. 140 UP nodes per 42U rack; 20 UP nodes in 6U
2. Single socket (LGA 1700) supports Intel Pentium, Intel Xeon 6300/E-2400 Series processors
3. Up to 128GB ECC LP UDIMM DDR5 4400 MT/s in 4 DIMM slots
4. Up to 2x 2.5" SATA/NVMe drives; M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH) + 1 NVMe (PCIe 4.0), Form Factor 2280/22110, M-Key
5. Dual 10GbE LAN ports via BCM57414, dedicated LAN supports IPMI 2.0
6. Aspeed AST2600
Extra Specifications for Supermicro MBI-311C-1T2N MicroBlade Compact Self-contained Server Single Intel Xeon E-2400 and Pentium Processor
| Product SKUs | ||
| Product SKUs | ||
| Motherboard | ||
| Motherboard | ||
| Processor | ||
| CPU | Single Socket (LGA 1700) supports Intel® Xeon® E-2400/Pentium® Processor | |
| Cores | Up to 8 cores | |
| System Memory | ||
| Memory Capacity | 4 DDR5 DIMM sockets | |
| Supports up to 128GB DDR5 ECC LP UDIMM | ||
| Memory Type | 4400 MT/s ECC DDR5 UDIMM | |
| DIMM Sizes | 32GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C266 chipset | |
| Network Controllers | Dual 10GbE LAN ports | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| System BIOS | ||
| BIOS Type | 128Mb Flash EEPROM | |
| BIOS Features | SMBIOS 2.7.1 | |
| Plug and Play (PnP) | ||
| APM 1.2 | ||
| Dimensions | ||
| Height | 1.2" (30.48mm) | |
| Width | 4.94" (125.48mm) | |
| Depth | 23.2" (589.28mm) | |
| Weight | Gross Weight: 3.3 lbs (1.5 kg) | |
| Available Colors | Silver Grey | |
| Front Panel | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Drive Bays | ||
| Internal | 2x 2.5" SATA/NVMe drives | |
| M.2 | M.2 Form Factor: 2280/22110 | |
| M.2 Key: M-Key | ||
| M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH) and 1 NVMe (PCIe 4.0) | ||
| Others | 1x SATA DOM | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment / Compliance | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) | ||
| Electromagnetic Compatibility (EMC) | ||
| United States / Canada | FCC- Emissions (US) Verification | |
| Europe | EN55022 - Emissions | |
| EN55024 - Immunity | ||
| EN61000-3-2 - Harmonics | ||
| EN61000-3-3 - Voltage Flicker | ||
| CE - EMC Directive 89/336/EEC | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| SATA DOM | - | 0 | Supermicro SATA DOM Solutions [Details] | |||
| Heatsink / Retention | SNK-P1041V | $ 60.50 | 0 | 1U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series | ||
| SATA DOM | MEM-IDSAHT1-032G | 1 | IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-064G | 0 | IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-128G | 0 | IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-256G | 0 | IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-016G | 0 | IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-032G | 0 | IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-064G | 0 | IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-128G | 0 | IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
