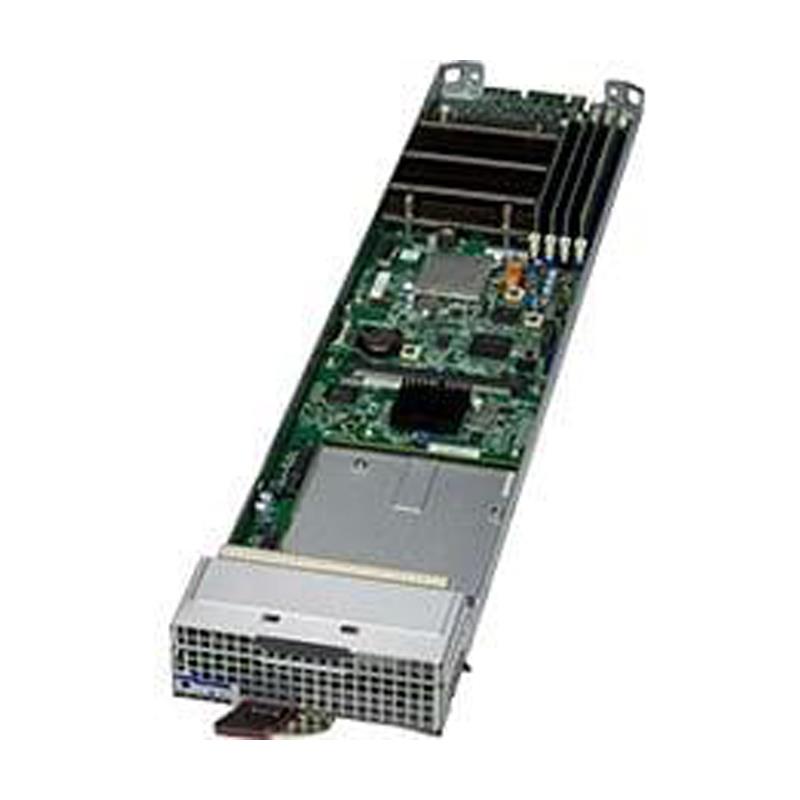

  2. Supermicro MBI-311C-1C2 MicroBlade Compact Self-contained Server Single Intel Xeon E-2400 and Pentium Processor
Supermicro MBI-311C-1C2 MicroBlade Compact Self-contained Server Single Intel Xeon E-2400 and Pentium Processor
Supermicro MBI-311C-1C2 MicroBlade Compact Self-contained Server Single Intel Xeon E-2400 and Pentium Processor

Supermicro MBI-311C-1C2 MicroBlade Compact Self-contained Server Single Intel Xeon E-2400 and Pentium Processor

  • Cloud Gaming

  • E-commerce

  • Cloud Computing

  • Content Creation

  • Web/Collocation Services

  • Web Cache, CDN, Video Streaming

  • Social Networking, Downloads

  • Corporate – WINS, DNS, Print, Login

MicroBlade For 6U Enclosure, Support Single Socket (LGA 1700), Supporting Intel Xeon E-2400 and Pentium Processor (Up to 8-Core). Up to 128GB in 4 DIMM slots, UDIMM, Chipset: Intel C266. On-Board: SAS3 (12Gbps) via 3008 Controller. Drive Bays Configuration: 2x 2.5in SAS3 (12Gbps) Drives, M.2 Form Factor: 2280/22110 (M.2 Key: M-Key), 1x SATA DOM. Network Connectivity: Dual 1GbE LAN Ports - (MBI-311C-1C2)

$ 670.00$ 670.00670.0USD

$ 670.00

Option not available

PreOrder
15 lb

    This combination does not exist.

    Add to Cart

    1. 140 UP nodes per 42U rack; 20 UP nodes in 6U

    2. Single socket (LGA 1700) supports Intel Pentium, Intel Xeon 6300/E-2400 Series processors

    3. Up to 128GB ECC LP UDIMM DDR5 4400 MT/s in 4 DIMM slots

    4. Up to 2x 2.5" SAS3 (12Gbps) drives; M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH), Form Factor 2280/22110, M-Key

    5. Dual 1GbE LAN ports via Intel i350, dedicated LAN supports IPMI 2.0

    6. Avago 3008 SAS3 controller

    7. Aspeed AST2600

    Extra Specifications for Supermicro MBI-311C-1C2 MicroBlade Compact Self-contained Server Single Intel Xeon E-2400 and Pentium Processor

    Product SKUs
    Product SKUs
    Motherboard
    Motherboard
    Processor
    CPUSingle Socket (LGA 1700) supports Intel® Xeon® E-2400/Pentium® Processor
    CoresUp to 8 cores
    System Memory
    Memory Capacity4 DDR5 DIMM sockets
    Supports up to 128GB DDR5 ECC LP UDIMM
    Memory Type4400 MT/s ECC DDR5 UDIMM
    DIMM Sizes32GB
    Memory Voltage1.2 V
    Error DetectionCorrects single-bit errors
    Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetIntel® C266 chipset
    SASSAS3 (12Gbps) via Avago 3008
    Network ControllersDual 1GbE LAN ports
    IPMISupport for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    System BIOS
    BIOS Type128Mb Flash EEPROM
    BIOS FeaturesSMBIOS 2.7.1
    Plug and Play (PnP)
    APM 1.2
    Dimensions
    Height1.2" (30.48mm)
    Width4.94" (125.48mm)
    Depth23.2" (589.28mm)
    WeightGross Weight: 3.3 lbs (1.5 kg)
    Available ColorsSilver Grey
    Front Panel
    LEDsPower LED
    UID / KVM LED
    Network Activity LED
    Fault LED
    Drive Bays
    Internal2x 2.5" SAS3 (12Gbps) drives
    M.2M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
    M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH)
    Others1x SATA DOM
    Input / Output
    TPM1 TPM Header
    Operating Environment / Compliance
    Environmental Spec.Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Operating Temperature: 10°C to 38°C (50°F to 100.4°F)
    Electromagnetic Compatibility (EMC)
    United States / CanadaFCC- Emissions (US) Verification
    EuropeEN55022 - Emissions
    EN55024 - Immunity
    EN61000-3-2 - Harmonics
    EN61000-3-3 - Voltage Flicker
    CE - EMC Directive 89/336/EEC
    NamePart NumberPriceAdd to CartQty.Description
    TPM security module(optional, not included)AOM-TPM-9670V$ 56.501TPM module (Vertical) TPM 2.0
    TPM security module(optional, not included)AOM-TPM-9671V$ 56.500TPM module (Vertical) TPM 1.2.
    SATA DOM-0Supermicro SATA DOM Solutions [Details]
    Heatsink / RetentionSNK-P1041V$ 60.5001U Prop. Passive CPU HS for 6U 10-blade SuperBlade Series
    SATA DOMMEM-IDSAHT1-032G1IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOMMEM-IDSAHT1-064G0IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOMMEM-IDSAHT1-128G0IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOMMEM-IDSAHT1-256G0IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOMMEM-IDSAHM3A-016G0IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOMMEM-IDSAHM3A-032G0IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOMMEM-IDSAHM3A-064G0IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOMMEM-IDSAHM3A-128G0IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal
    SATA DOM-0SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal
    SATA DOM-0SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal
    SATA DOM-0SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal
    SATA DOM-0SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
    SoftwareSFT-DCMS-Single1DataCenter Management Package (per node license)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
