| Main Specifications |

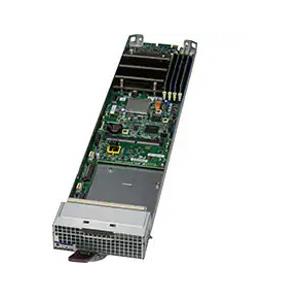

| Device Type | MicroBlade |
| Built-in Devices | MBD-B4SC1-CPU |
| Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm) |
| Weight | Weight Gross Weight: 3.3 lbs (1.5 kg) |
| Enclosure Color | Silver Grey |
| Processor |
| Compatible Processors | Intel Xeon E-2400/Pentium Processor |
| Compatible Socket | Single Socket (LGA 1700) |
| Cache/Core | Up to 8 cores |
| System Memory |
| Memory Capacity | 4 DDR5 DIMM sockets, Supports up to 128GB DDR5 ECC LP UDIMM |
| Memory Type | 4400 MT/s ECC DDR5 UDIMM |
| DIMM Sizes | 32GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C266 chipset |
| Network Controllers | Dual 10GbE LAN ports |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM), System BIOS |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 128Mb Flash EEPROM |
| BIOS Features | Plug and Play (PnP), APM 1.2, SMBIOS 2.7.1 |
| Front Panel |
| LEDs | Power LED, Fault LED, Network Activity LED, UID / KVM LED |
| Expansion / Connectivity |
| Expansion Bays Total (Free) | internal - 2x 2.5" SATA/NVMe drives |
| M.2 | M.2 Key: M-Key |
| M.2 Form Factor: 2280/22110 |
| M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH) and 1 NVMe (PCIe 4.0) |
| Input / Output |
| DOM | 1x SATA DOM |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) |
| Non-operating Relative Humidity: 5 to 95% (non-condensing) |
| Safety and Compliance |
| Electromagnetic Compatibility | United States / Canada: FCC- Emissions (US) Verification |
| Europe: EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
